Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to remove or install the actuator with the door lock assembly removed.
  1. Remove the mounting screws, and remove the actuator from the door lock assembly.
  2. Pull the actuator straight downward to separate it from the door lock assembly.

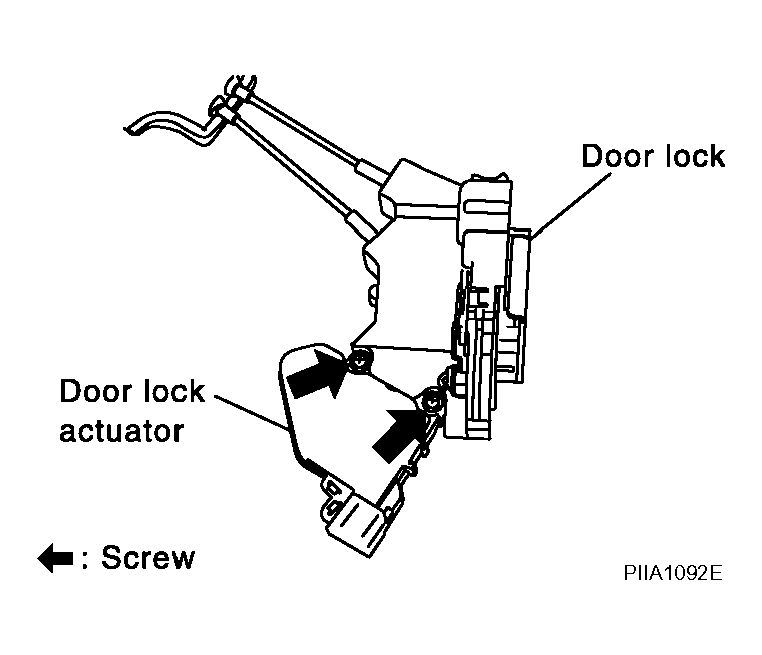

    Fig 1: Identifying Door Lock Actuator
    G04122510Courtesy of NISSAN MOTOR CO., U.S.A.
