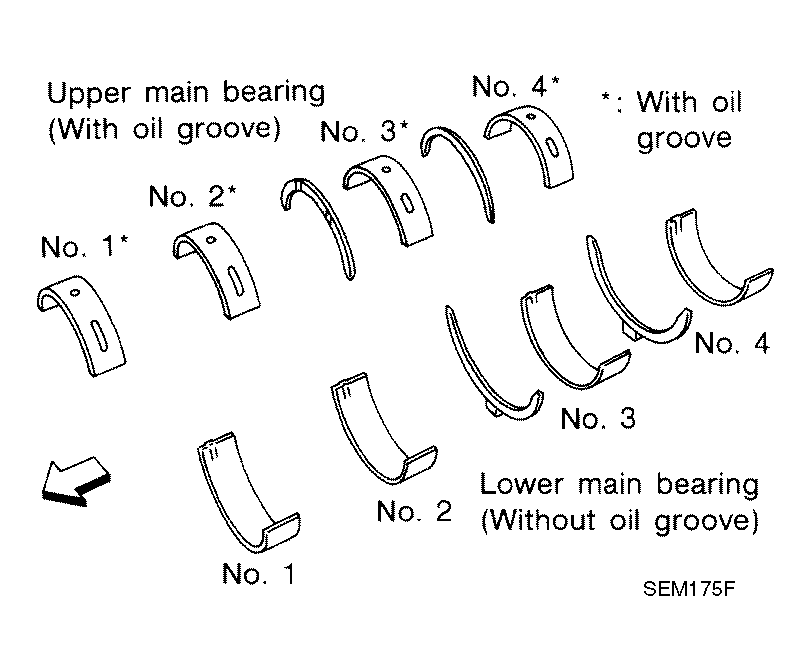

Main Bearing: Notes
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
MAIN BEARING SPECIFICATIONS
| Grade number | UPR/LWR | Thickness "T" mm (in) | Width "W" mm (in) | Identification color | Remarks |
| 0 | - | 2.000 - 2.003 (0.0787 - 0.0789) | 19.9 - 20.1 (0.783 - 0.791) | Black | Grade is the same for upper and lower bearings. |
| 1 | - | 2.003 - 2.006 (0.0789 - 0.0790) | Brown | ||
| 2 | - | 2.006 - 2.009 (0.0790 - 0.0791) | Green | ||
| 3 | - | 2.009 - 2.012 (0.0791 - 0.0792) | Yellow | ||
| 4 | - | 2.012 - 2.015 (0.0792 - 0.0793) | Blue | ||
| 5 | - | 2.015 - 2.018 (0.0793 - 0.0794) | Pink | ||
| 6 | - | 2.018 - 2.021 (0.0794 - 0.0796) | Purple | ||
| 7 | - | 2.021 - 2.024 (0.0796 - 0.0797) | White | ||
| 01 | UPR | 2.003 - 2.006 (0.0789 - 0.0790) | Brown | Grade is different for upper and lower bearings. | |
| LWR | 2.000 - 2.003 (0.0787 - 0.0789) | Black | |||
| 12 | UPR | 2.006 - 2.009 (0.0790 - 0.0791) | Green | ||
| LWR | 2.003 - 2.006 (0.0789 - 0.0790) | Brown | |||
| 23 | UPR | 2.009 - 2.012 (0.0791 - 0.0792) | Yellow | ||
| LWR | 2.006 - 2.009 (0.0790 - 0.0791) | Green | |||
| 34 | UPR | 2.012 - 2.015 (0.0792 - 0.0793) | Blue | ||
| LWR | 2.009 - 2.012 (0.0791 - 0.0792) | Yellow | |||
| 45 | UPR | 2.015 - 2.018 (0.0793 - 0.0794) | Pink | ||
| LWR | 2.012 - 2.015 (0.0792 - 0.0793) | Blue | |||
| 56 | UPR | 2.018 - 2.021 (0.0794 - 0.0796) | Purple | ||
| LWR | 2.015 - 2.018 (0.0793 - 0.0794) | Pink | |||
| 67 | UPR | 2.021 - 2.024 (0.0796 - 0.0797) | White | ||
| LWR | 2.018 - 2.021 (0.0794 - 0.0796) | Purple | |||
