General Specifications
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL SPECIFICATIONS (1 OF 3)
| Cylinder arrangement | V-6 | ||
|---|---|---|---|
| Displacement cm3 (cu in) | 3,498 (213.45) | ||
| Bore and stroke mm (in) | 95.5 x 81.4 (3.76 x 3.205) | ||
| Valve arrangement | DOHC | ||
| Firing order | 1-2-3-4-5-6 | ||
| Number of piston rings | Compression | 2 | |
| Oil | 1 | ||
| Number of main bearings | 4 | ||
| Compression ratio | 10.3 | ||
| Compression pressure, psi)/300 RPM | kPa (kg/cm2 | Standard | 1,270 (13.0, 184) |
| Minimum | 980 (10.0, 142) | ||
| Differential limit between cylinders | 100 (1.0, 15) | ||
| Cylinder number | |||
GENERAL SPECIFICATIONS (2 OF 3)

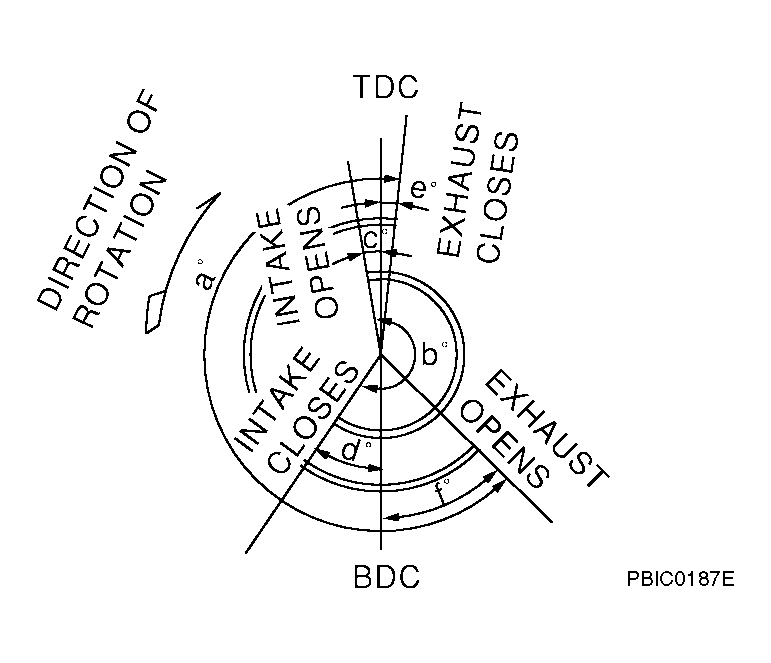

| Valve timing (Intake valve timing control - "OFF") | ||||||
| Unit: degree | ||||||
| a | b | c | d | e | f | |
| M/T models | 248 | 248 | -2 | 70 | -2 | 70 |
| A/T models | 240 | 238 | -6 | 64 | 8 | 52 |
