COMMERCIAL SERVICE TOOLS SPECIFICATIONS
| Tool number (Kent-Moore No.) Tool name | Description | |
|---|---|---|
| Power tool | Loosening bolts and nuts | |

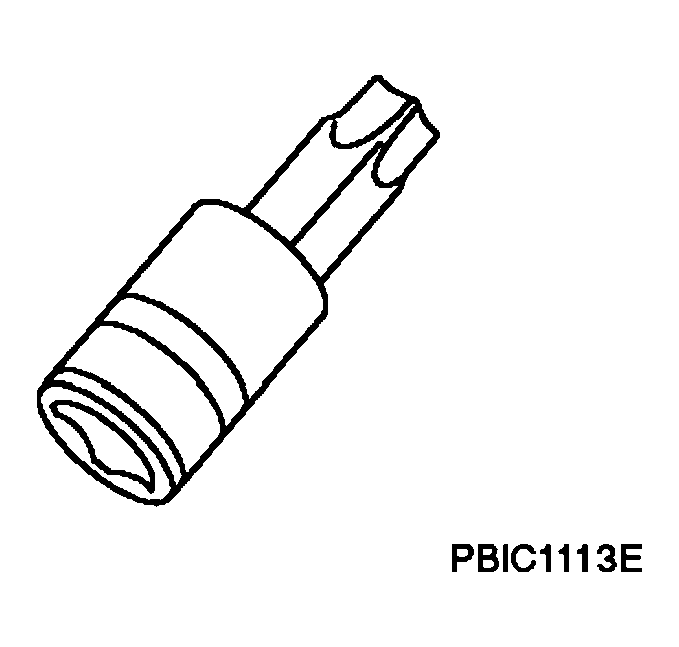

| TORX socket | Removing and installing flywheel Size: T55 |
|

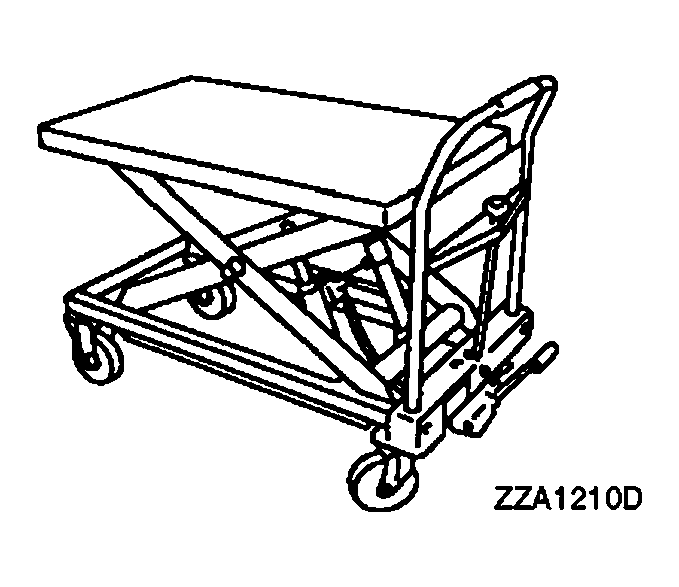

| Manual lift table caddy | Removing and installing engine | |

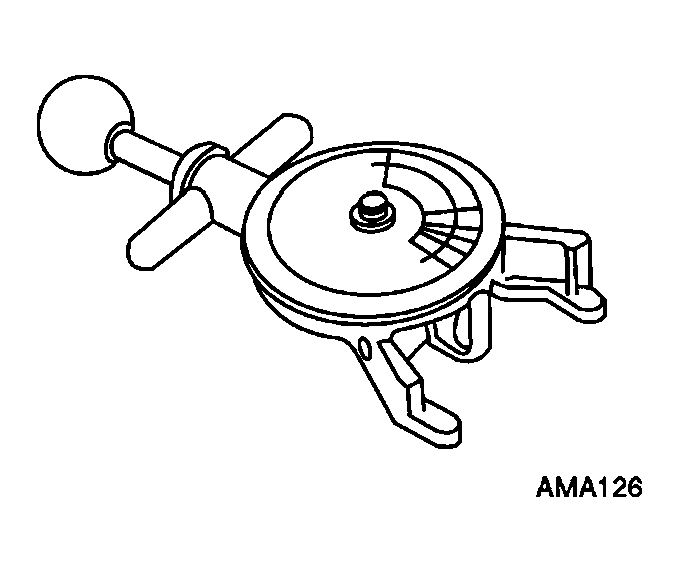

| (BT3373-F) Belt tension gauge | Checking drive belt tension | |

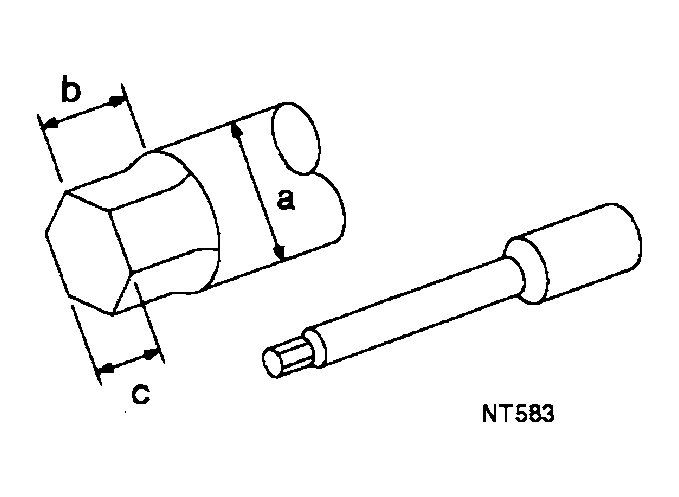

| (J24239-01) Cylinder head bolt wrench | Loosening and tightening cylinder head bolt, and used with angle wrench [SST: KV10112100 (BT8653-A)] a: 13 (0.51) dia. b: 12 (0.47) c: 10 (0.39) Unit: mm (in) |
|

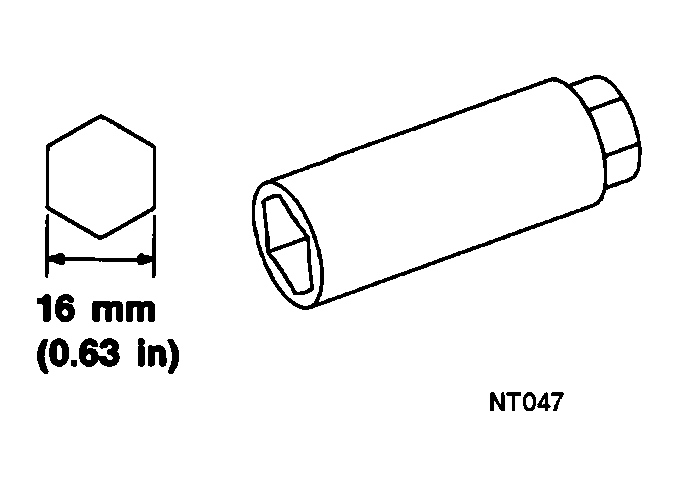

| Spark plug wrench | Removing and installing spark plug | |

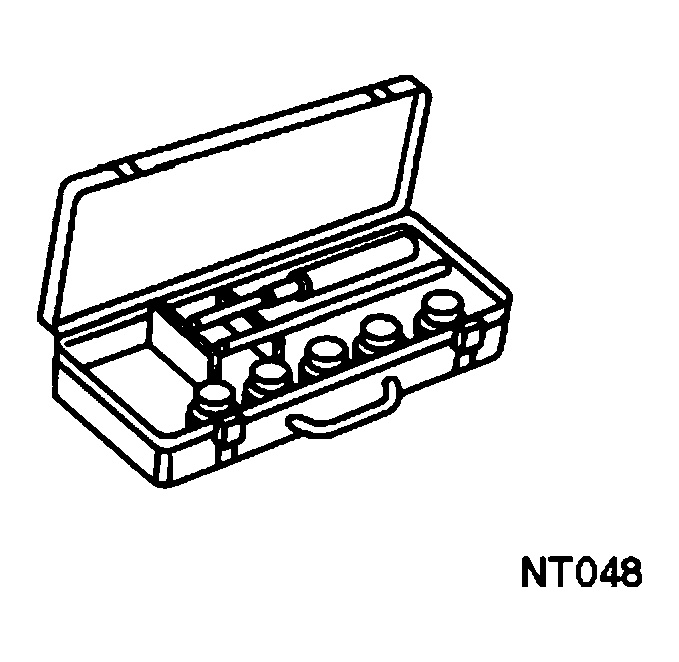

| Valve seat cutter set | Finishing valve seat dimensions | |

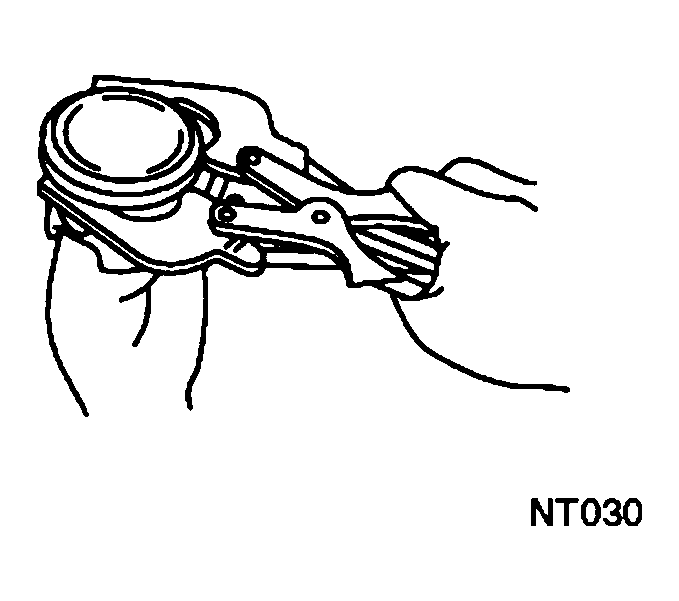

| Piston ring expander | Removing and installing piston ring | |

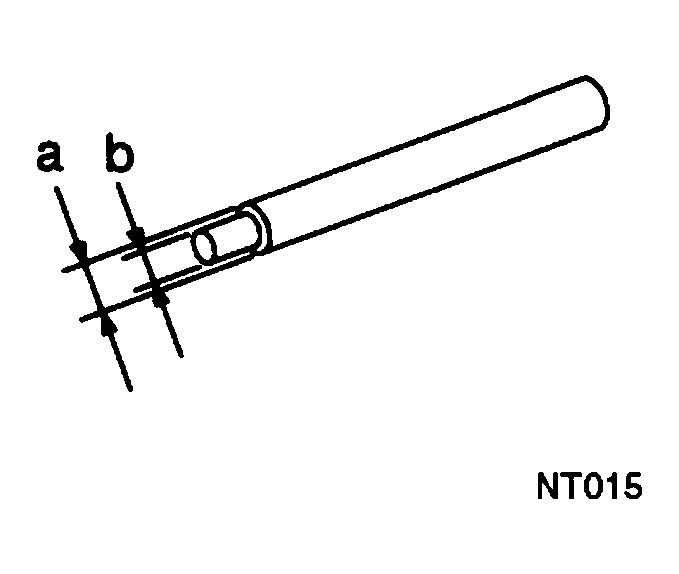

| Valve guide drift | Removing and installing valve guide Intake & Exhaust: a = 9.5 mm (0.374 in) dia. b = 5.5 mm (0.217 in) dia. |
|

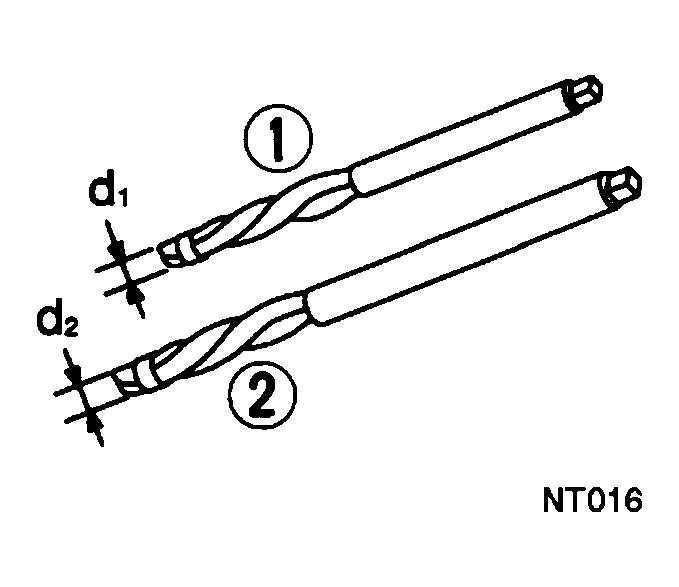

| Valve guide reamer | Reaming valve guide with (1) or hole for oversize valve guide with (2) Intake & Exhaust: d1 = 6.0 mm (0.236 in) dia. d2 = 10.2 mm (0.402 in) dia. |
|
| (J-43897-18) (J-43897-12) Oxygen sensor thread cleaner | Reconditioning the exhaust system threads before installing a new heated oxygen sensor (Use with anti-seize lubricant shown below.) a = J-43897-18 [18 mm (0.71 in) dia.] for zirconia heated oxygen sensor b = J-43897-12 [12 mm (0.47 in) dia.] for Titania heated oxygen sensor |
|
| Anti-seize lubricant (Permatex 133AR or equivalent meeting MIL specification MIL-A-907) | Lubricating heated oxygen sensor thread cleaning tool when reconditioning exhaust system threads | |
