Removal and Installation (AWD Model): Installation

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Note to the following, and install in the reverse order of removal.

For a location with a positioning pin, insert it securely into hole of mating part.
For a part with a specified installation orientation, refer to component figure in "REMOVAL AND INSTALLATION (AWD MODEL) ".
When installing engine mounting bracket (LH and RH side) on cylinder block, tighten two upper bolts (shown as A in the figure) first. Then tighten two lower bolts (shown as B in the figure).

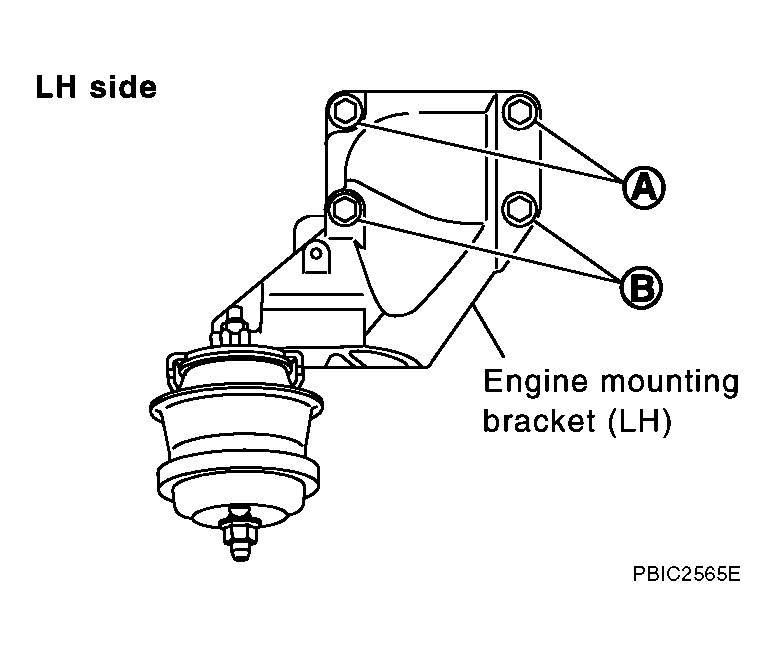

Fig 1: Identifying Engine Mounting Bracket (LH) Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

Install engine mounting bracket (RH) (Lower).

CAUTION: Tighten mounting bolts to the specified torque with following mounting surfaces touched.

Engine mounting bracket (RH) (Upper) to engine mounting bracket (RH) (Lower) (shown as C and D in the figure).
Front final drive assembly to engine mounting bracket (RH) (Lower) (shown as E in figure).

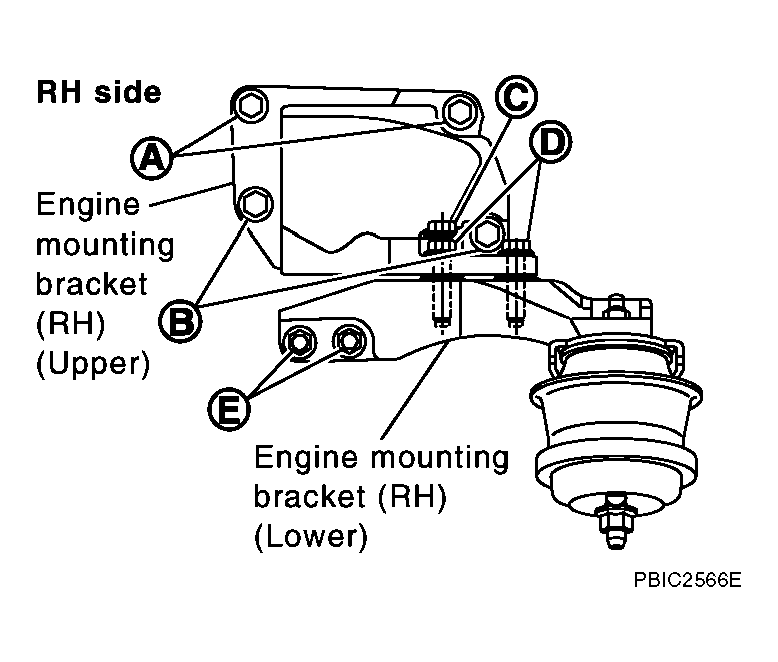

Fig 2: Identifying Engine Mounting Bracket (RH) (Lower)

Courtesy of NISSAN MOTOR CO., U.S.A.
