Removal and Installation of Hood Lock Control: Installation

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the hood lock cable through the lower dash panel hole into the engine room.

    Be careful not to bend the cable too much, keep the radius 100 mm (3.94 in) or more.

  2. Make sure the cable is not offset from the grommet, and push the grommet into the lower dash panel hole securely.
  3. Apply sealant around the grommet at * mark.

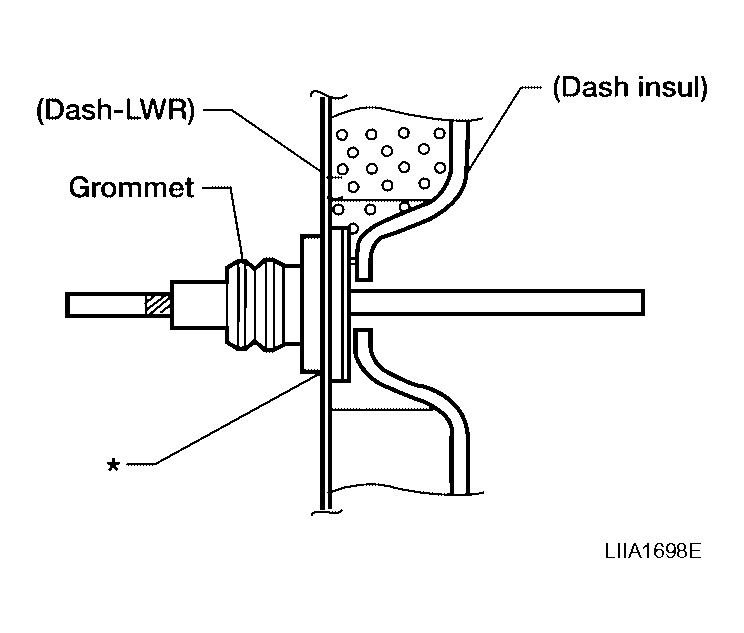

    Fig 1: Applying Sealant To Grommet
    G04175752Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install the cable securely to the lock.

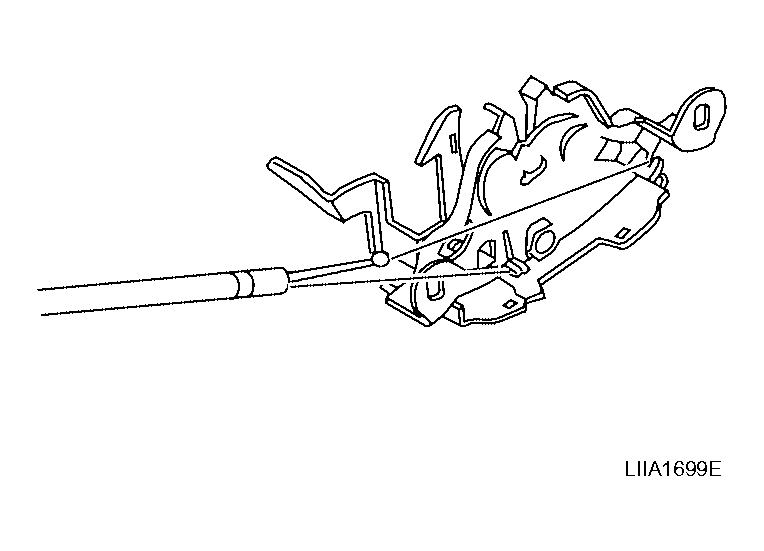

    Fig 2: Installing Cable Securely To Lock
    G04175753Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Adjust the hood lock. Refer to , "HOOD LOCK ADJUSTMENT "
  6. Install the front grille. Refer to "FRONT GRILLE "
