Operation Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "AIR CONDITIONER" on "SELECT TEST ITEM" screen.

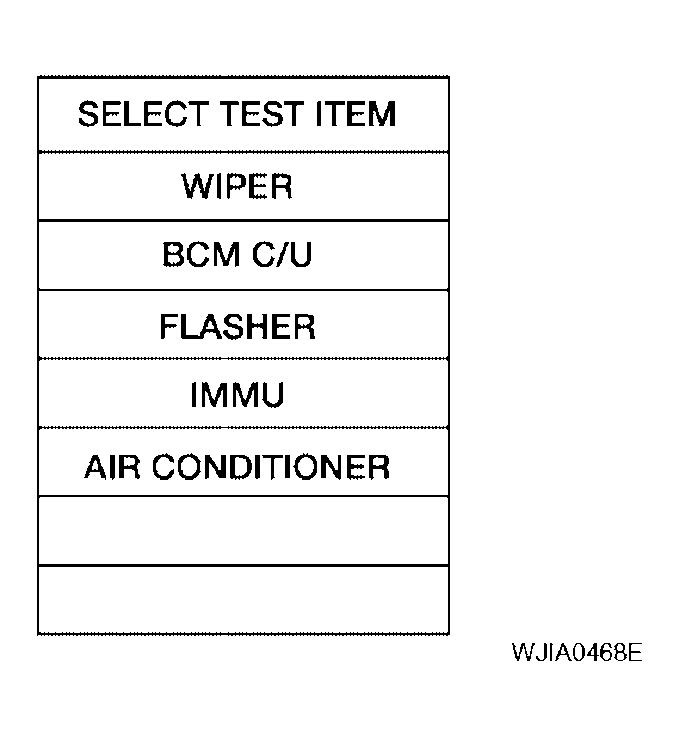

    Fig 1: CONSULT-II Display Select Test Item Screen
    G04176429Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "DATA MONITOR" on "SELECT DIAG MODE" screen.
    Fig 2: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on "DATA MONITOR" screen.
    ALL SIGNALS SPECIFICATION

    ALL SIGNALS Monitors all the items.
    SELECTION FROM MENU Selects and monitors the individual item selected.

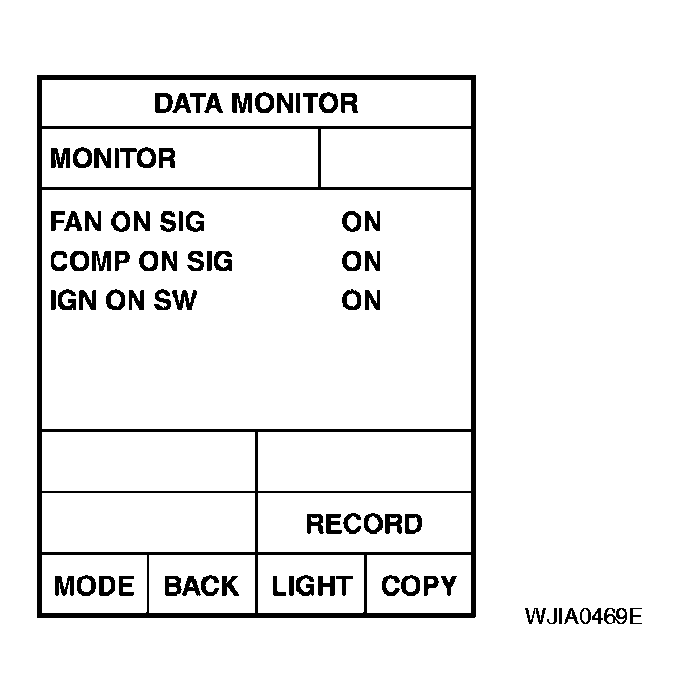

    Fig 3: CONSULT II Display - Data Monitor
    G04135920Courtesy of NISSAN MOTOR CO., U.S.A.
  4. When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored.
  5. Touch "START".
  6. Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".
