Rear Sonar System Off Switch
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

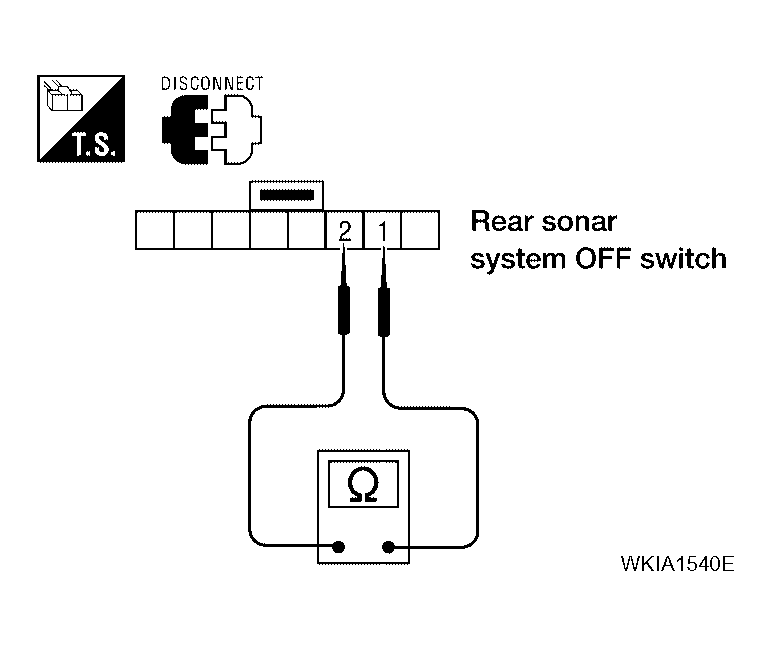

Disconnect the rear sonar system OFF switch M116. Check the continuity between following terminals.
REAR SONAR SYSTEM OFF SWITCH
| Rear sonar system OFF switch |
Terminal to be inspected |
Continuity |
| Depressed |
1 - 2 |
Yes |
| Released |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
