Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

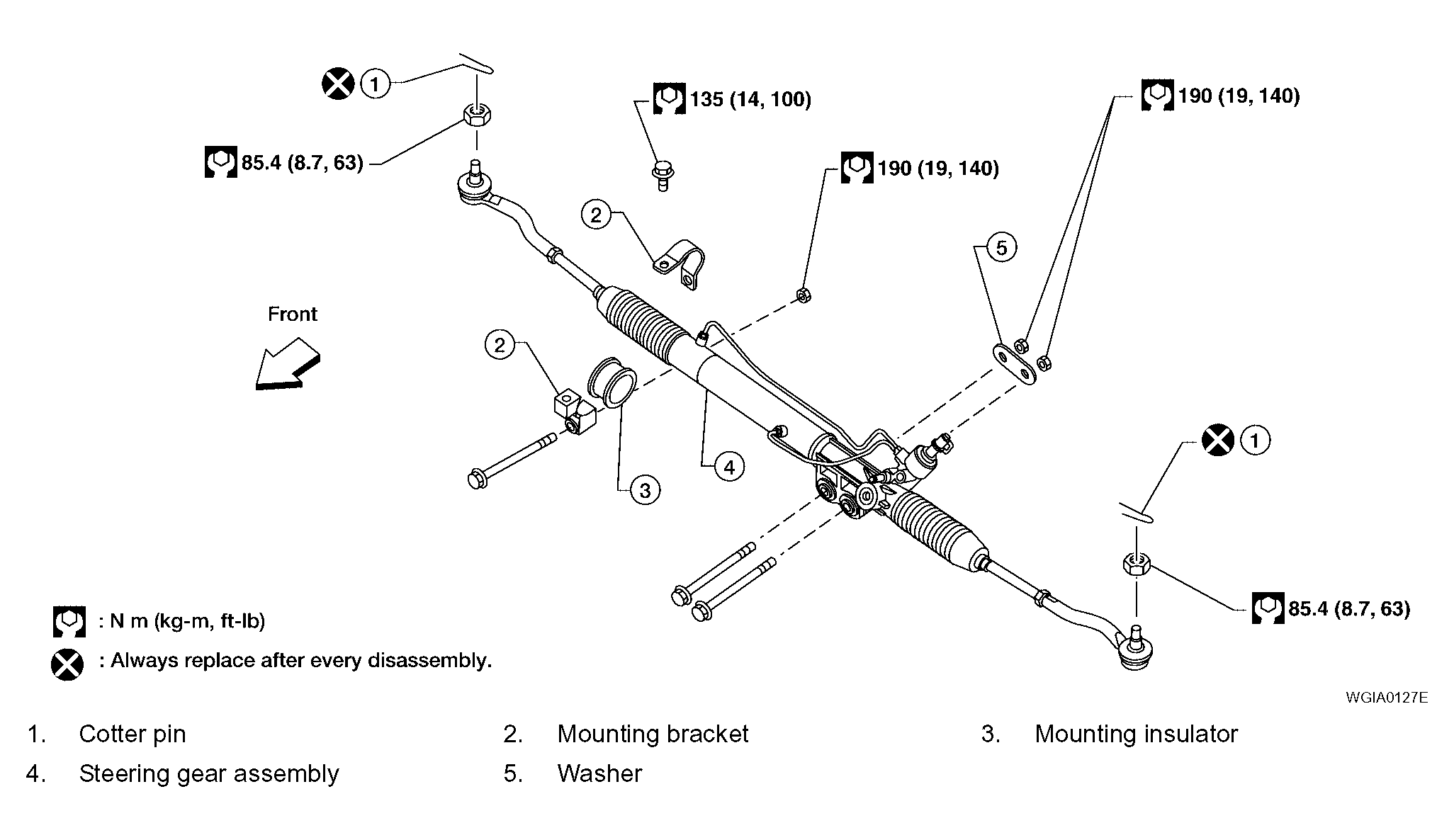

Fig 1: Power Steering Gear And Linkage Replacement Components With Torque Specifications
G04187290Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Spiral cable may snap due to steering operation if steering column is separated from steering gear assembly. Therefore secure steering wheel to avoid turning.
