Crew Cab

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

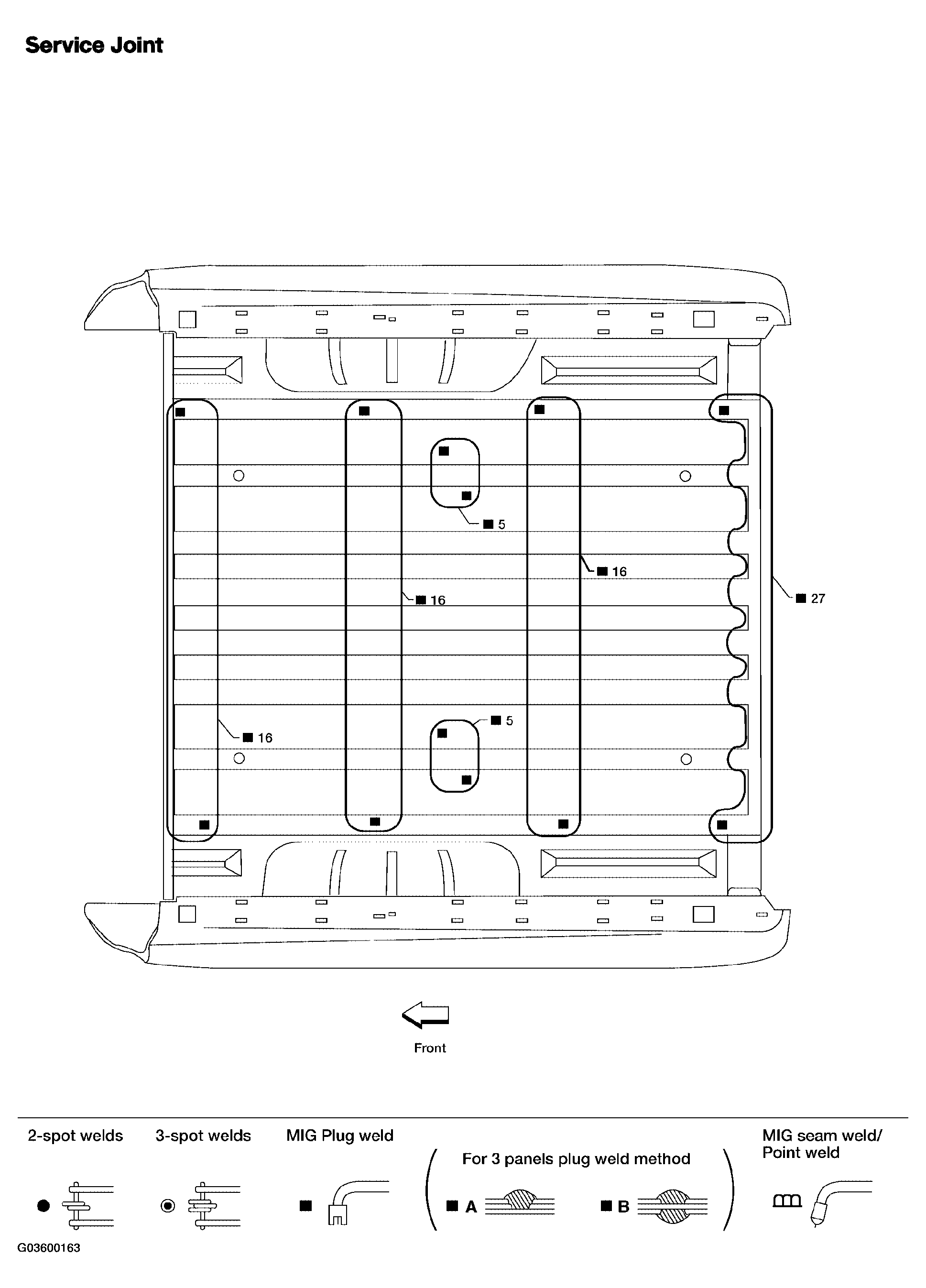

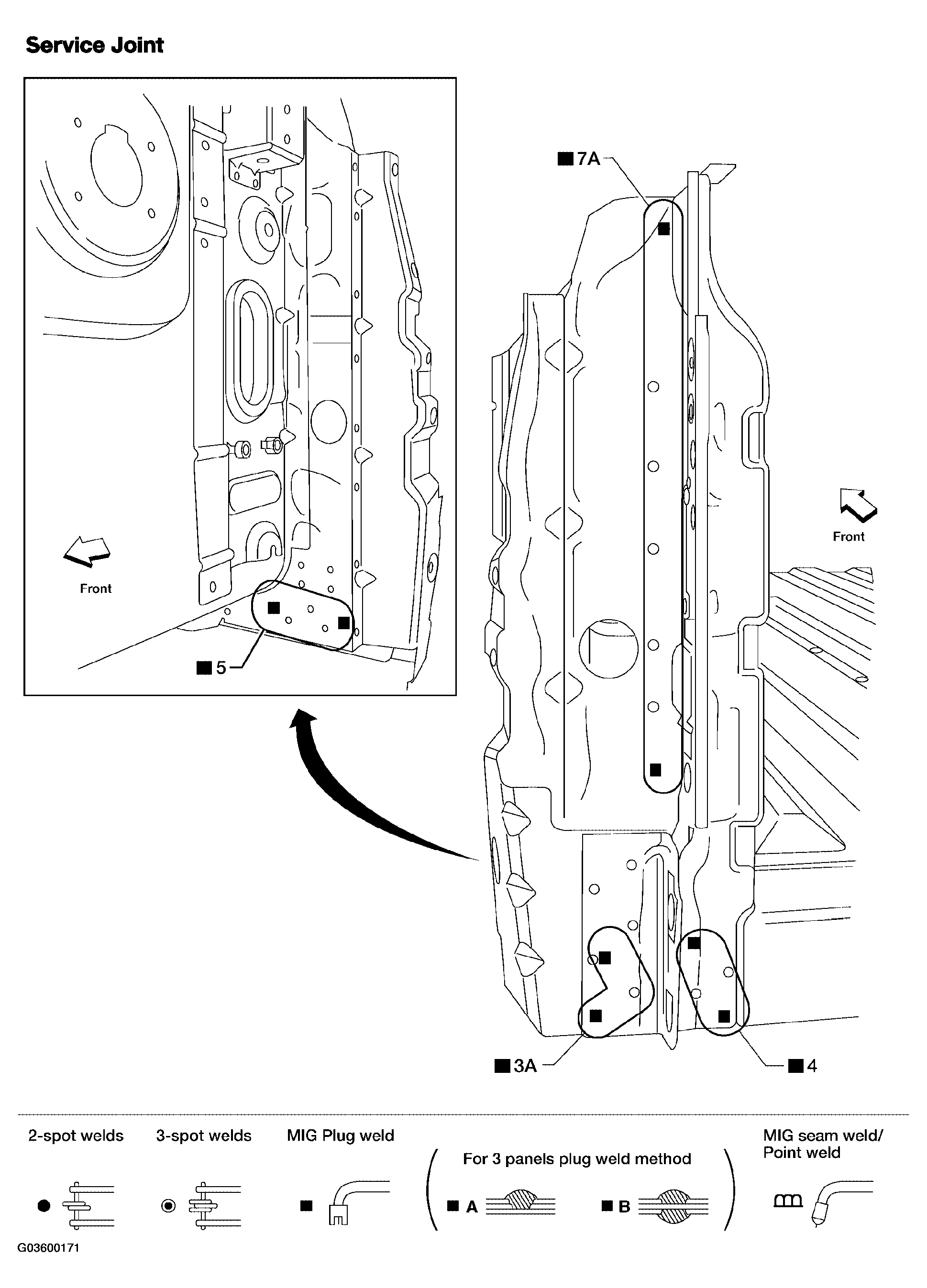

Fig 1: Identifying Pickup Bed Service Joints - Crew Cab (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

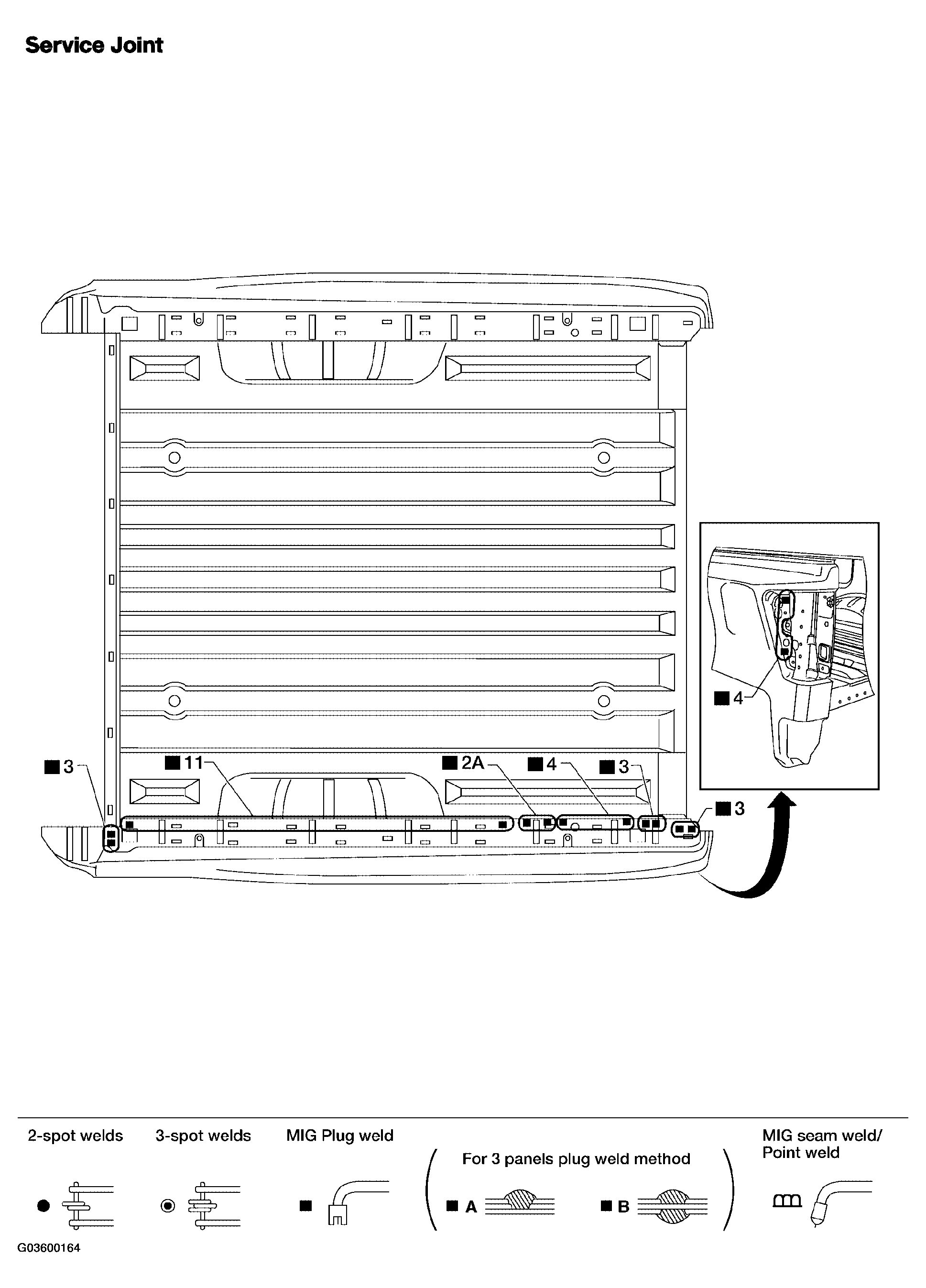

Fig 2: Identifying Pickup Bed Service Joints - Crew Cab (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

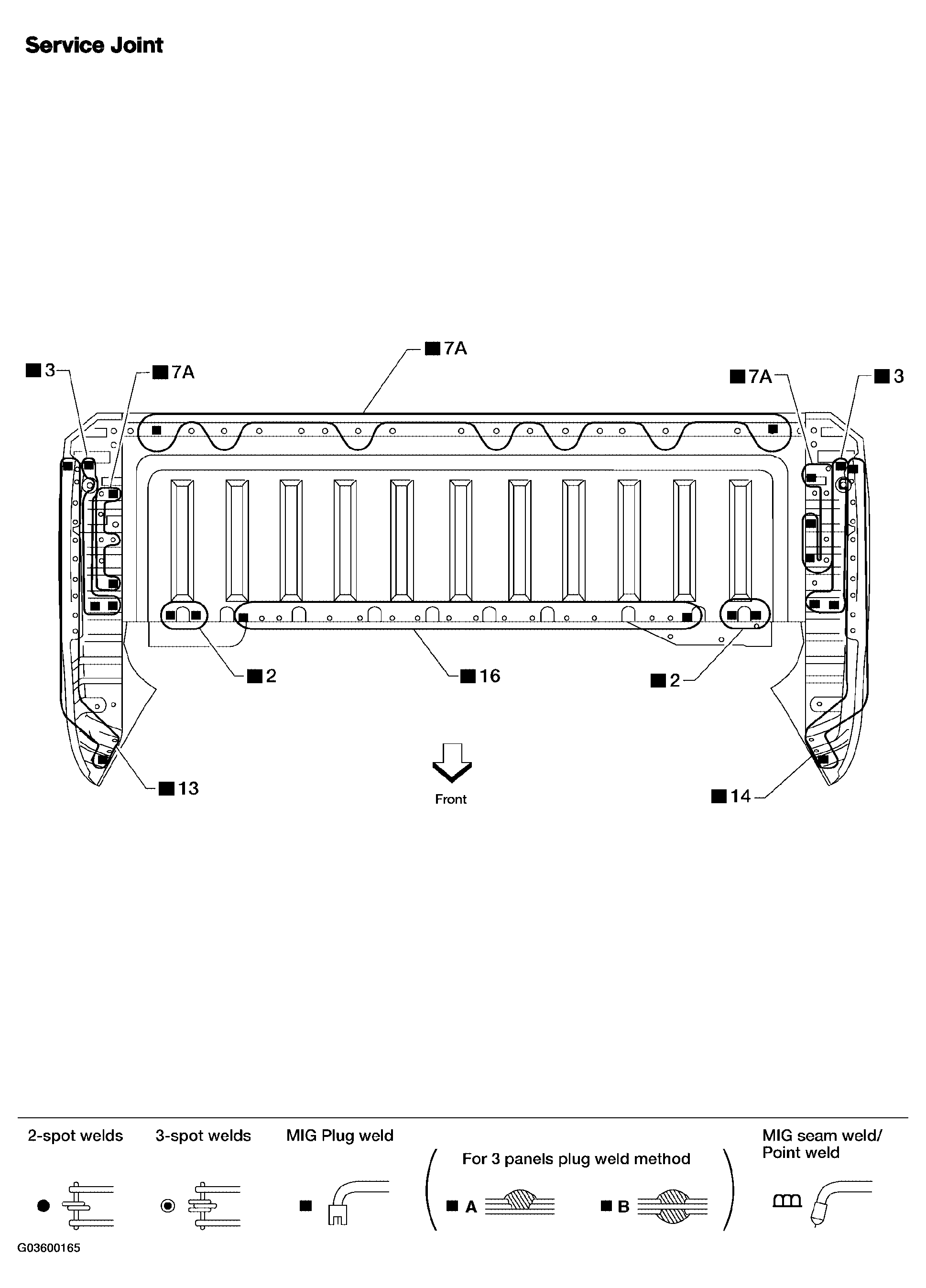

Fig 3: Identifying Pickup Bed Service Joints - Crew Cab (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

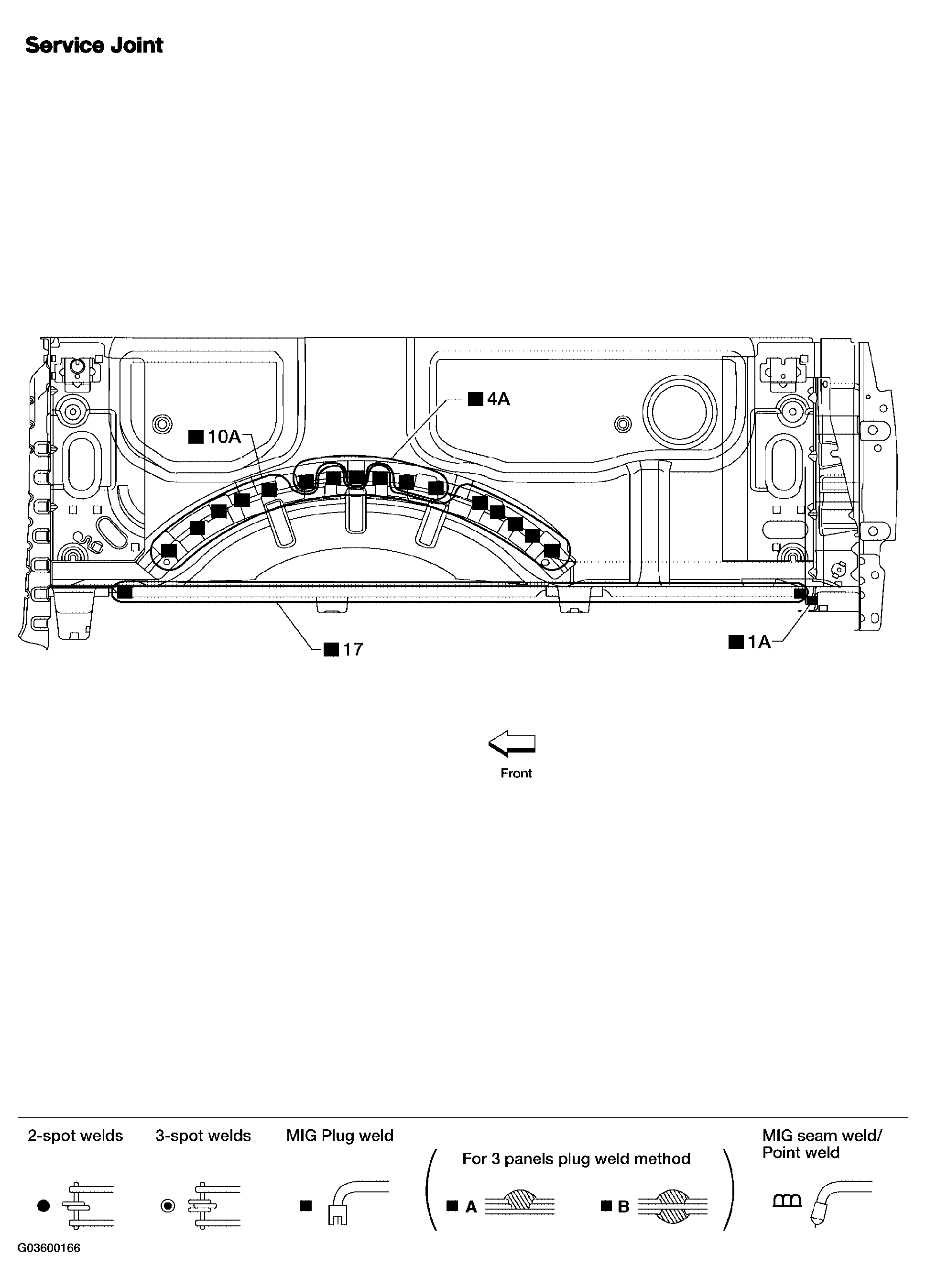

Fig 4: Identifying Pickup Bed Service Joints - Crew Cab (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

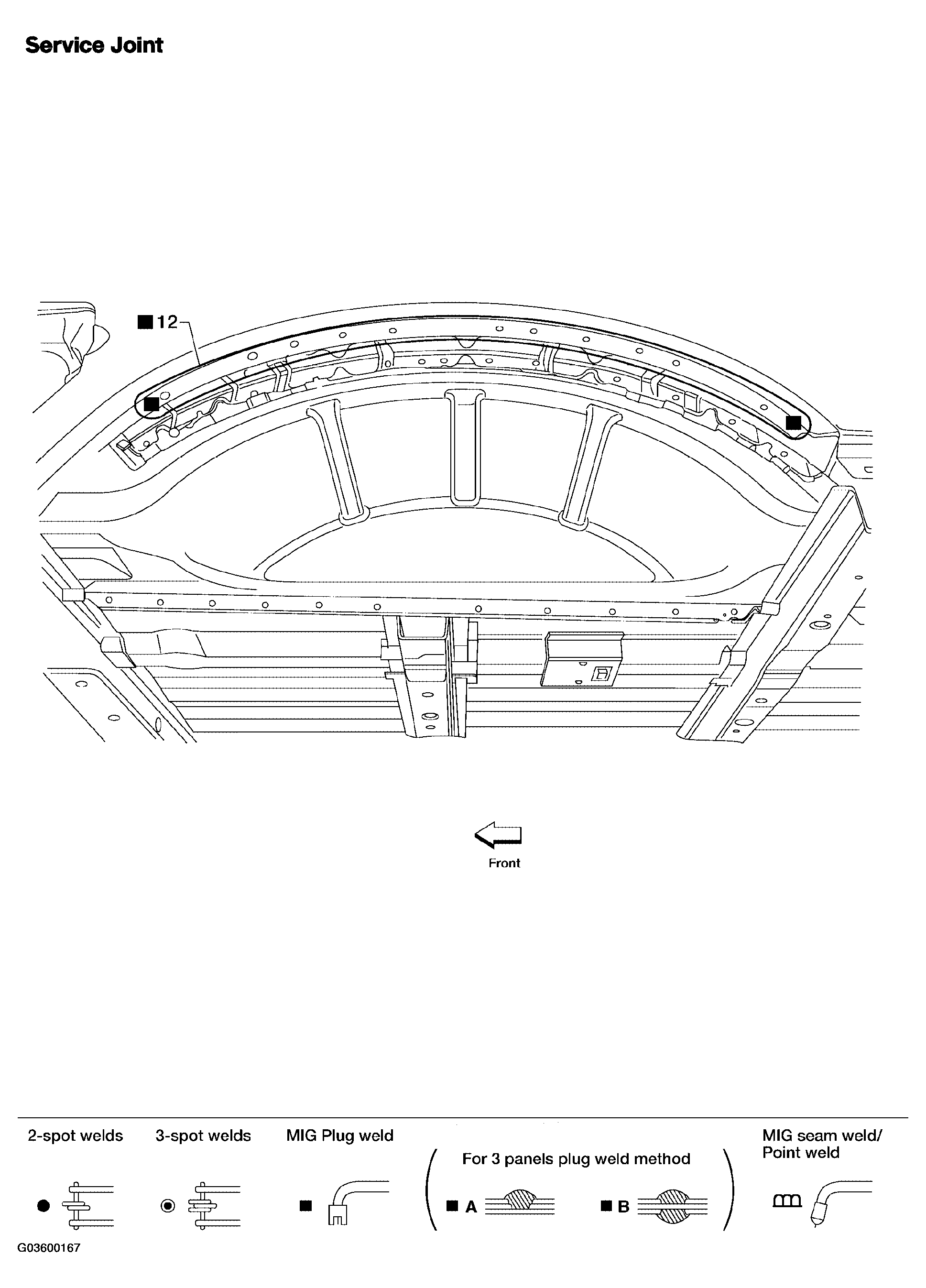

Fig 5: Identifying Pickup Bed Service Joints - Crew Cab (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

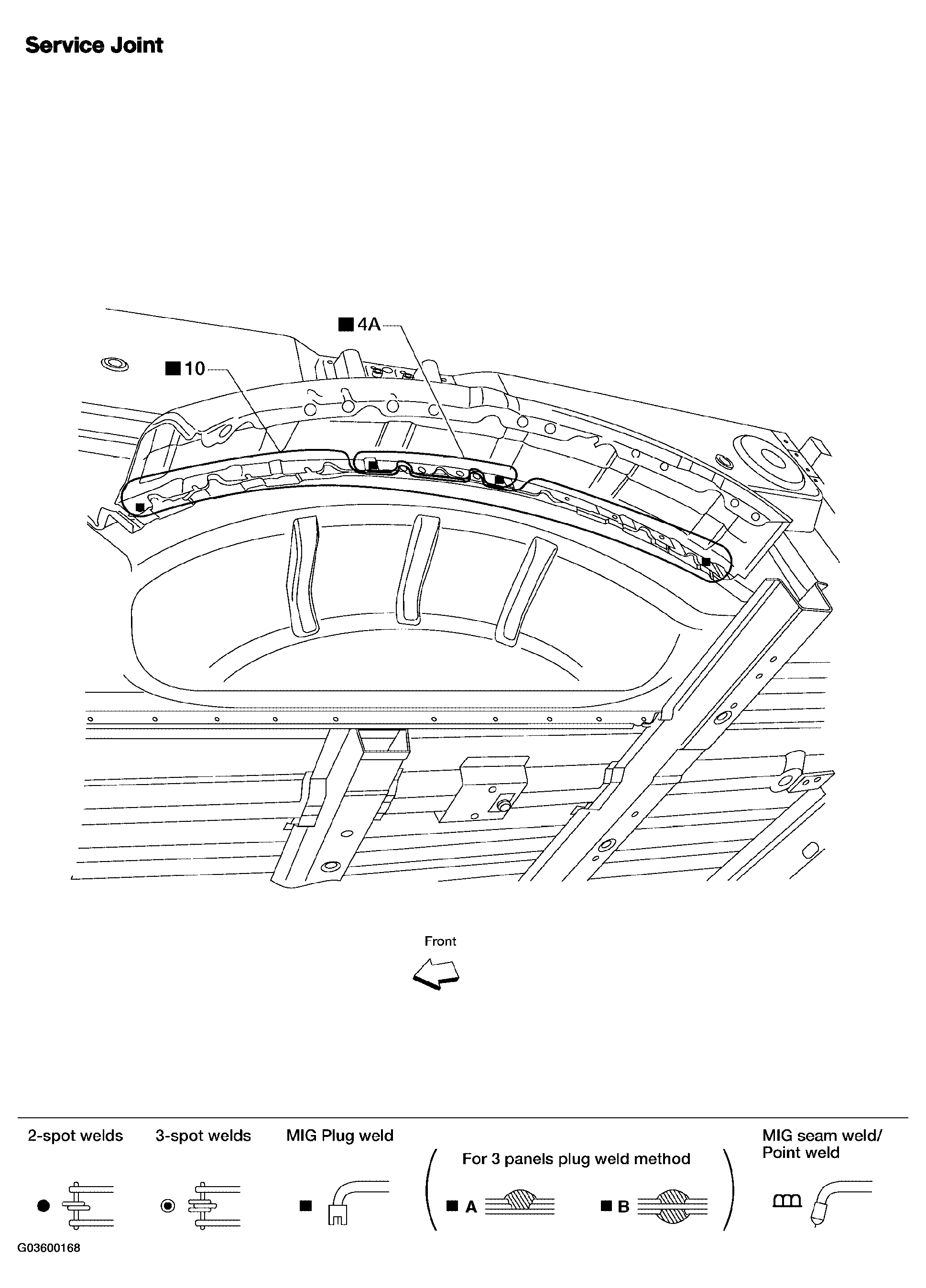

Fig 6: Identifying Pickup Bed Service Joints - Crew Cab (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

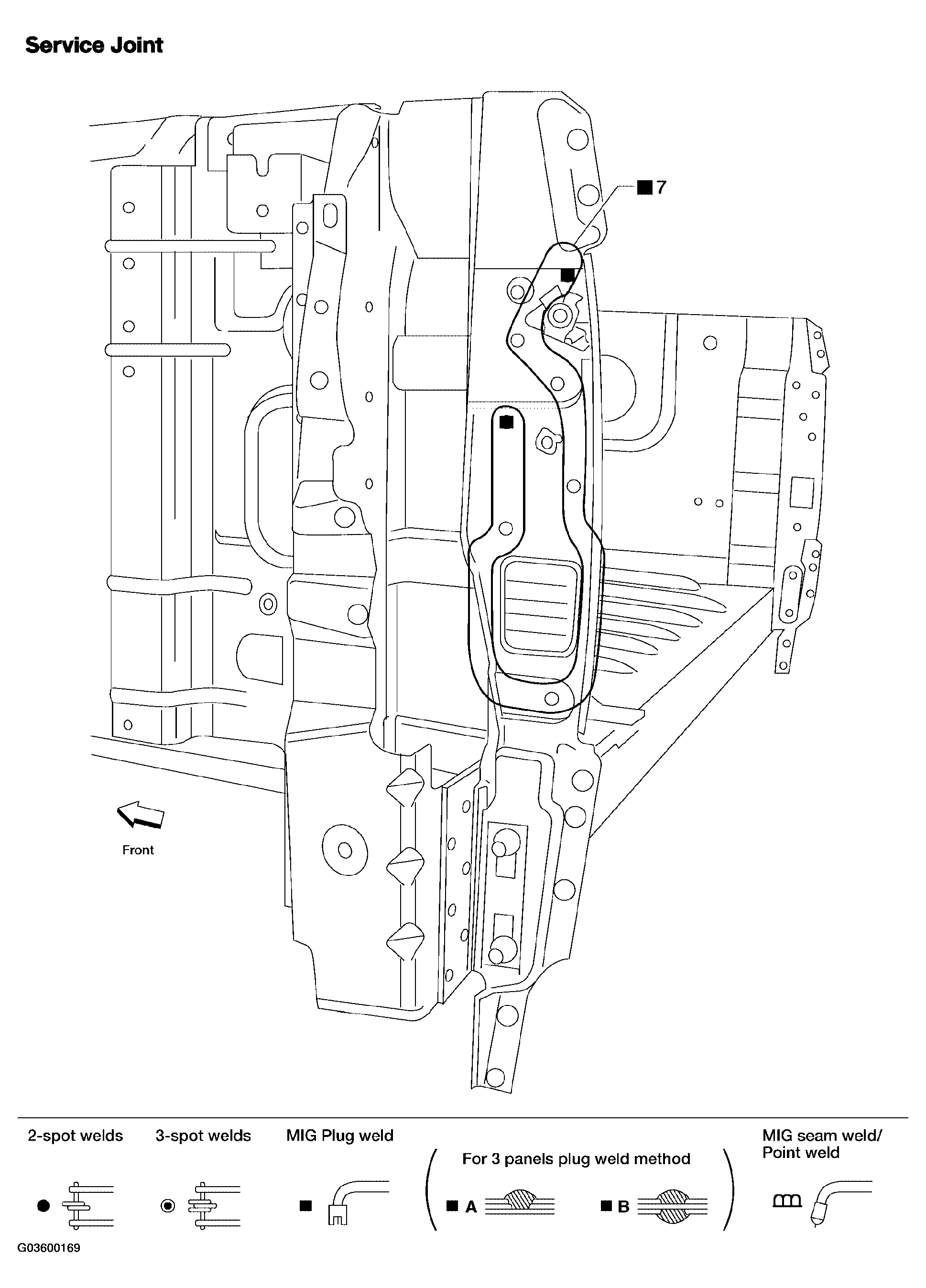

Fig 7: Identifying Pickup Bed Service Joints - Crew Cab (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

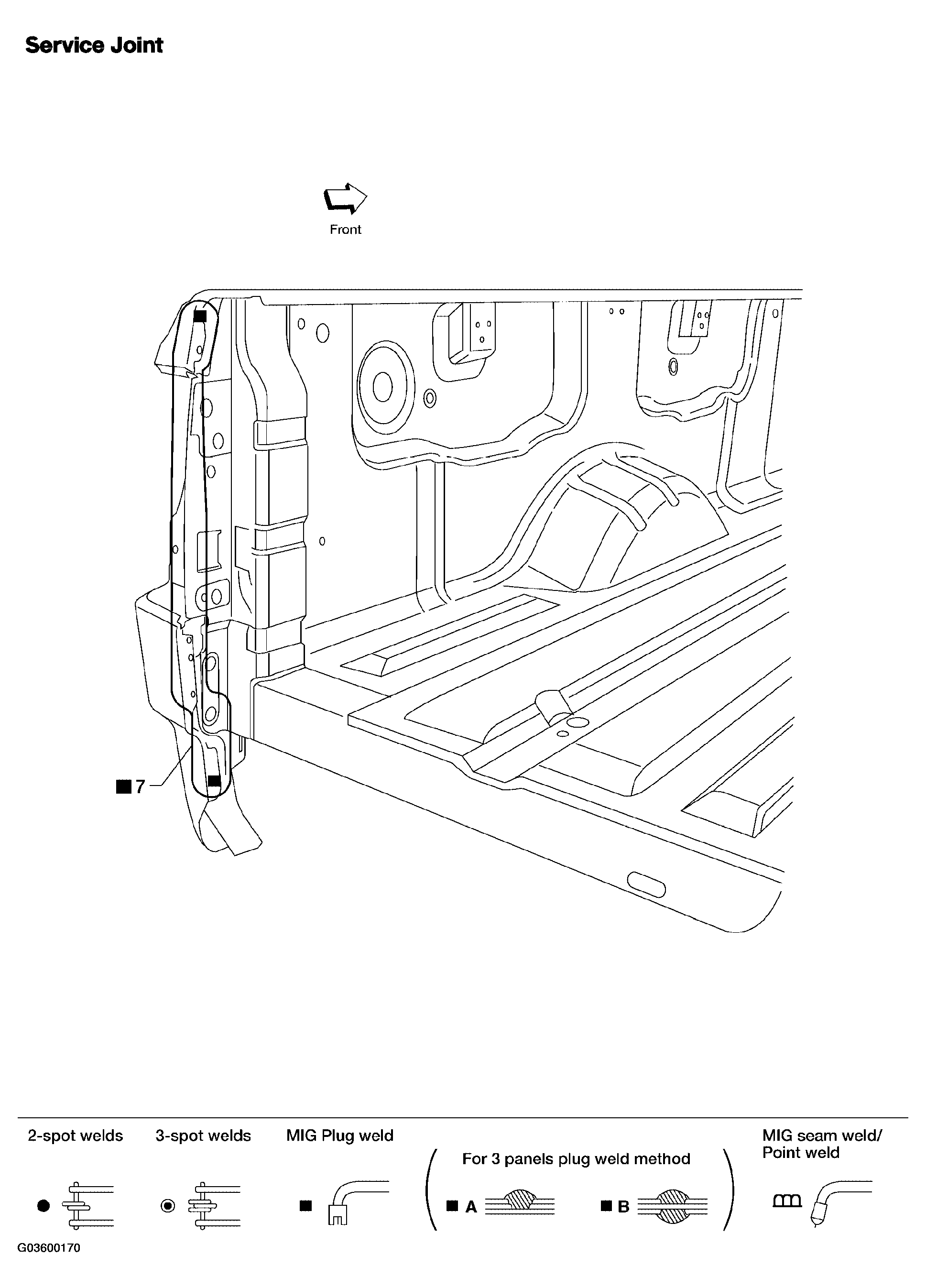

Fig 8: Identifying Pickup Bed Service Joints - Crew Cab (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Pickup Bed Service Joints - Crew Cab (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
