Control Valve And TCM Removal And Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completing installation, check A/T fluid leakage and fluid level. Refer to "CHANGING A/T FLUID " and "CHECKING A/T FLUID ".
  1. Connect TCM connector and park/neutral position switch connector.
    Fig 1: Connecting TCM Connector And Park/Neutral Position Switch Connector
    G03602413Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install A/T assembly harness connector to control valve with TCM.
    Fig 2: Installing A/T Assembly Harness Connector To Control Valve With TCM
    G03602414Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Connect TCM connectors.
    Fig 3: Connecting TCM Connectors
    G03602415Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install new O-ring in A/T assembly harness connector.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
      Fig 4: Installing O-Ring In A/T Assembly Harness Connector
      G03602416Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install A/T fluid temperature sensor 2 to bracket.

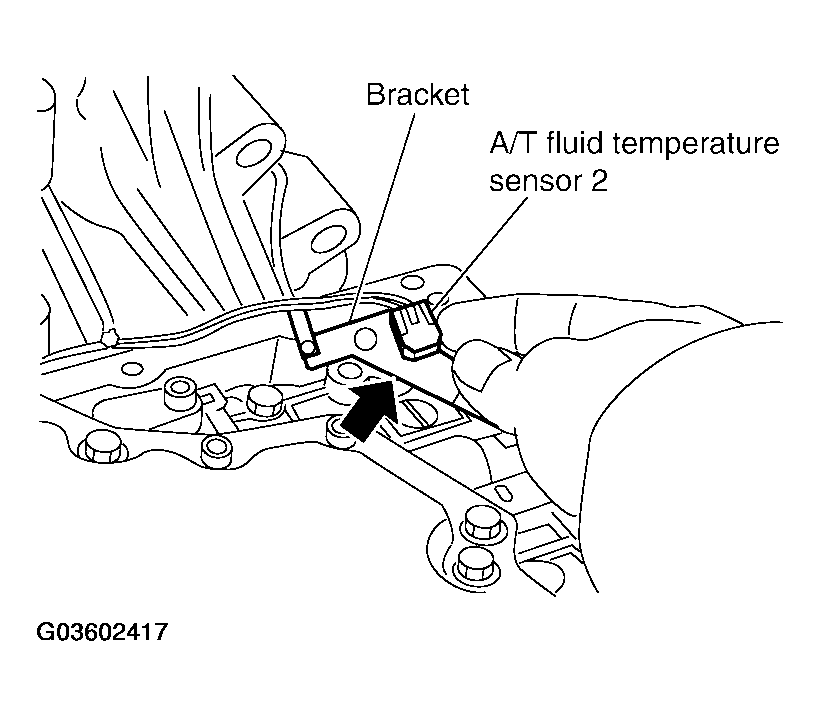

    Fig 5: Installing A/T Fluid Temperature Sensor 2 To Bracket
    G03602417Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM.
    CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.

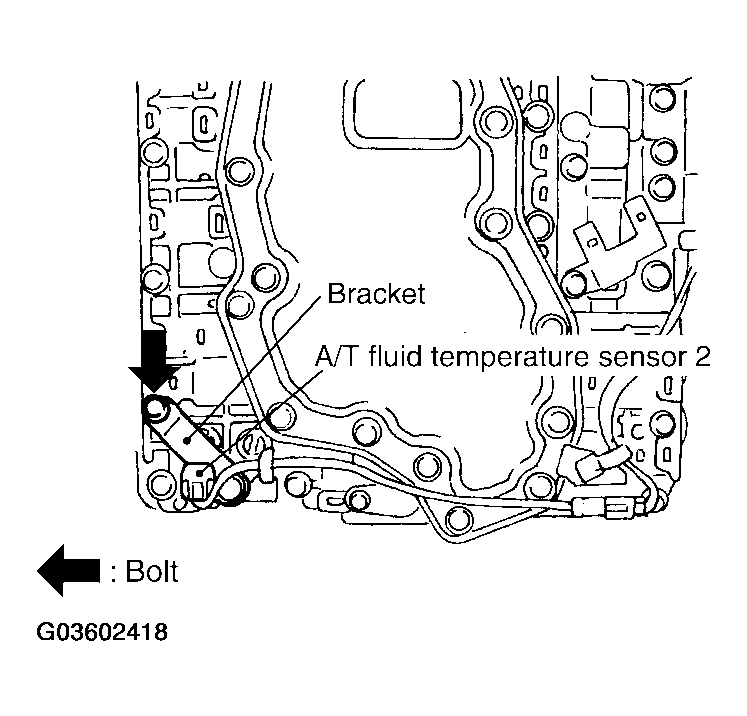

    Fig 6: Installing A/T Fluid Temperature Sensor 2 (With Bracket) In Control Valve With TCM
    G03602418Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install control valve with TCM in transmission case.
    CAUTION:
    • Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
    • Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
    • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.

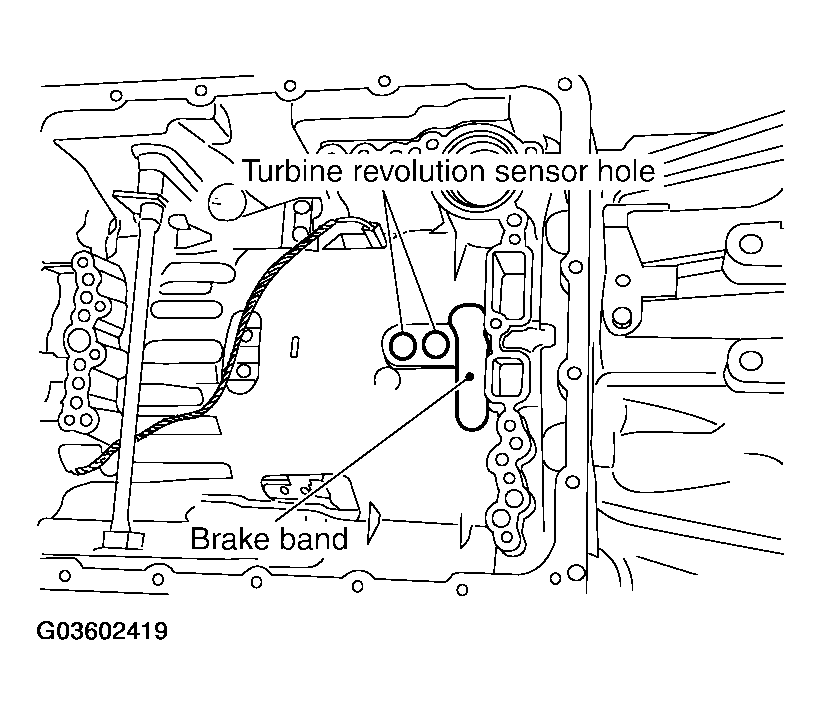

      Fig 7: Identifying Turbine Revolution Sensor Hole
      G03602419Courtesy of NISSAN MOTOR CO., U.S.A.
    • Assemble it so that manual valve cutout is engaged with manual plate projection.

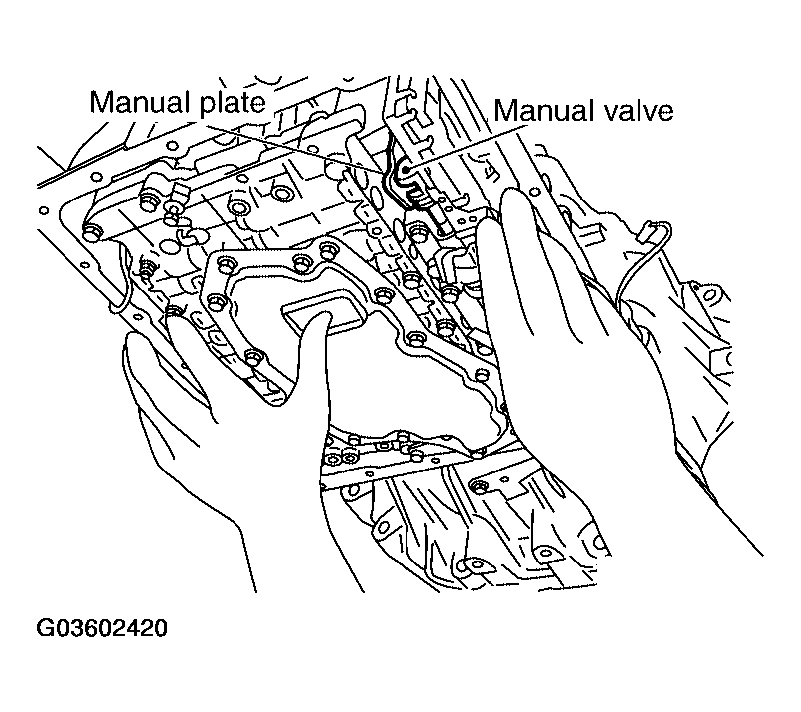

      Fig 8: Engaging Manual Valve Cutout With Manual Plate Projection
      G03602420Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install bolts A, B and C in control valve with TCM.
    CONTROL VALVE BOLTS SPECIFICATIONS

    Bolt symbol Length mm (in) Number of bolts
    A 42 (1.65) 5
    B 55 (2.17) 6
    C 40 (1.57) 1

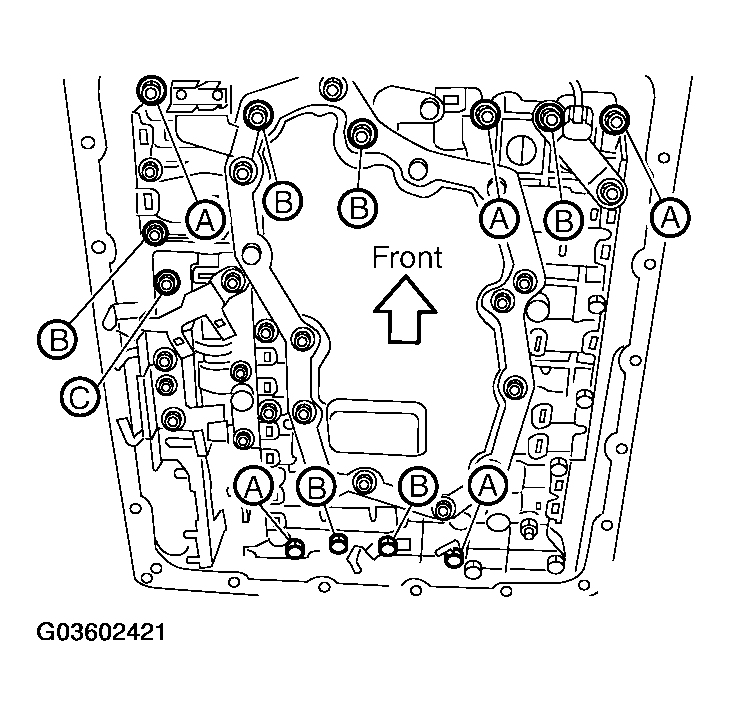

    Fig 9: Installing Bolts A, B And C In Control Valve With TCM
    G03602421Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.

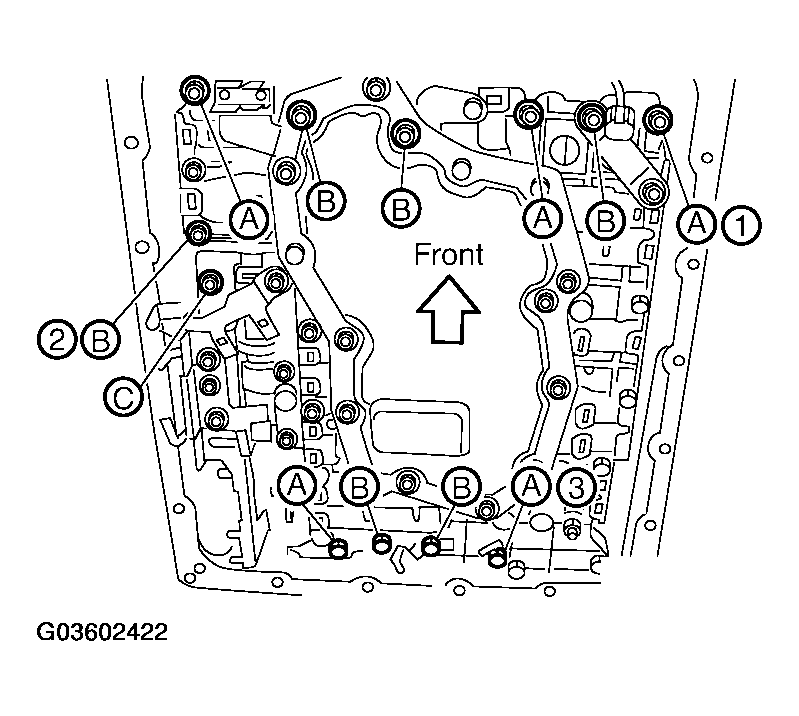

    Fig 10: Identifying Tightening Sequence Of Control Valve Bolts
    G03602422Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect A/T fluid temperature sensor 2 connector.

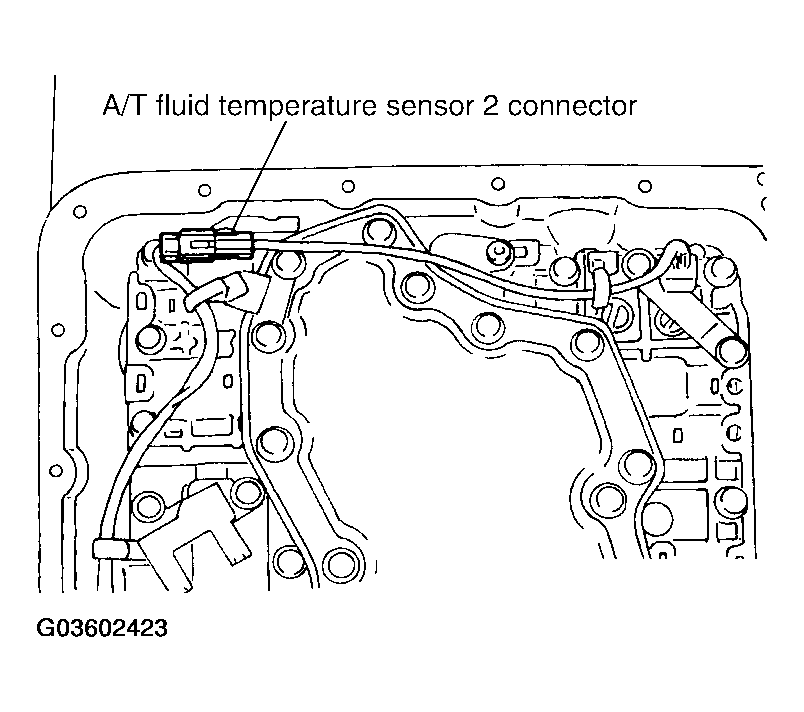

    Fig 11: Connecting A/T Fluid Temperature Sensor 2 Connector
    G03602423Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.

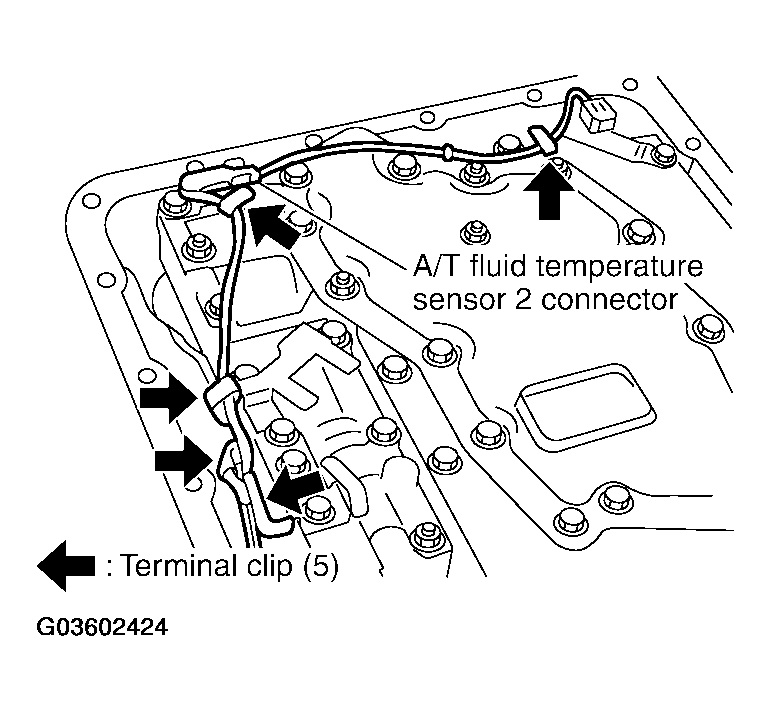

    Fig 12: Fastening Terminal Cord Assembly And A/T Fluid Temperature Sensor 2 Harness With Terminal Clips
    G03602424Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Connect revolution sensor connector.

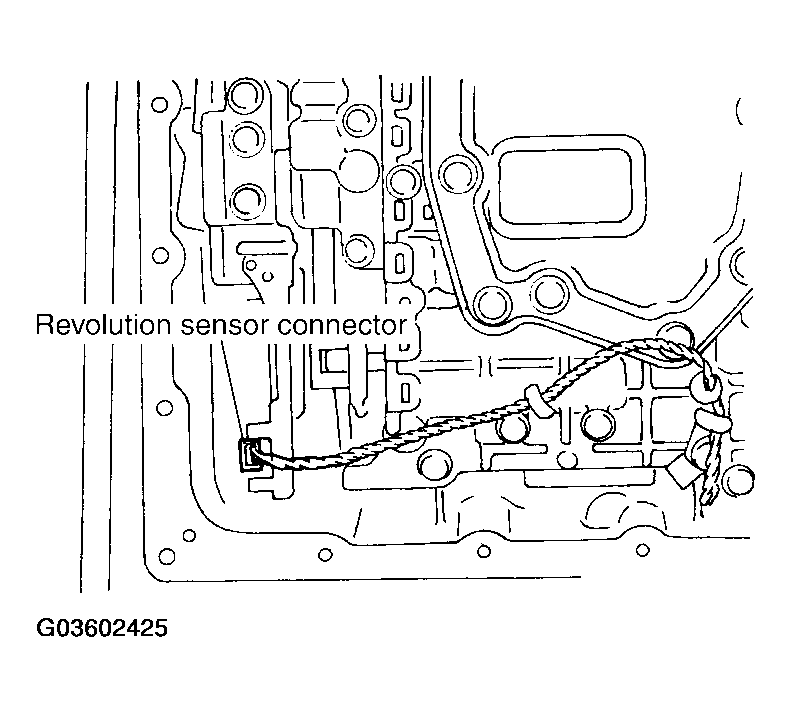

    Fig 13: Connecting Revolution Sensor Connector
    G03602425Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Securely fasten revolution sensor harness with terminal clips.

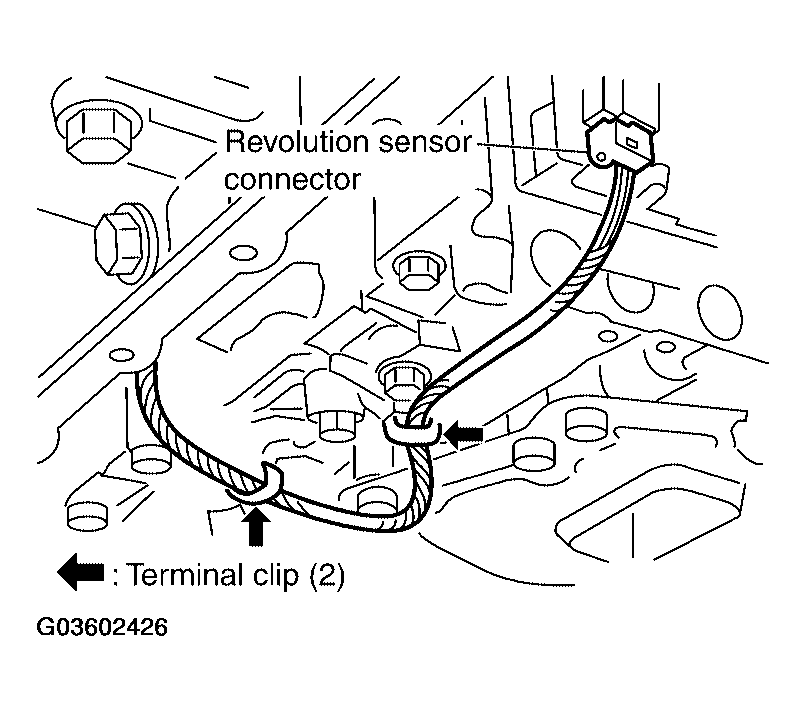

    Fig 14: Fastening Revolution Sensor Harness With Terminal Clips
    G03602426Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install magnets in oil pan.
    Fig 15: Installing Magnets In Oil Pan
    G03602427Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install oil pan in transmission case.
    1. Install new oil pan gasket in oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surfaces.
    2. Install oil pan (with new oil pan gasket) in transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown.
      • Be careful not to pinch harnesses.
      • Complete remove all moisture, oil and old gasket, etc. from oil pan mounting surfaces.
        Fig 16: Installing Oil Pan Bolts
        G03602428Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten oil pan bolts to the specified torque in numerical order as shown after temporarily tightening them. Refer to "COMPONENTS ".
      CAUTION: Do not reuse oil pan bolts.
  16. Tighten drain plug to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse drain plug gasket.

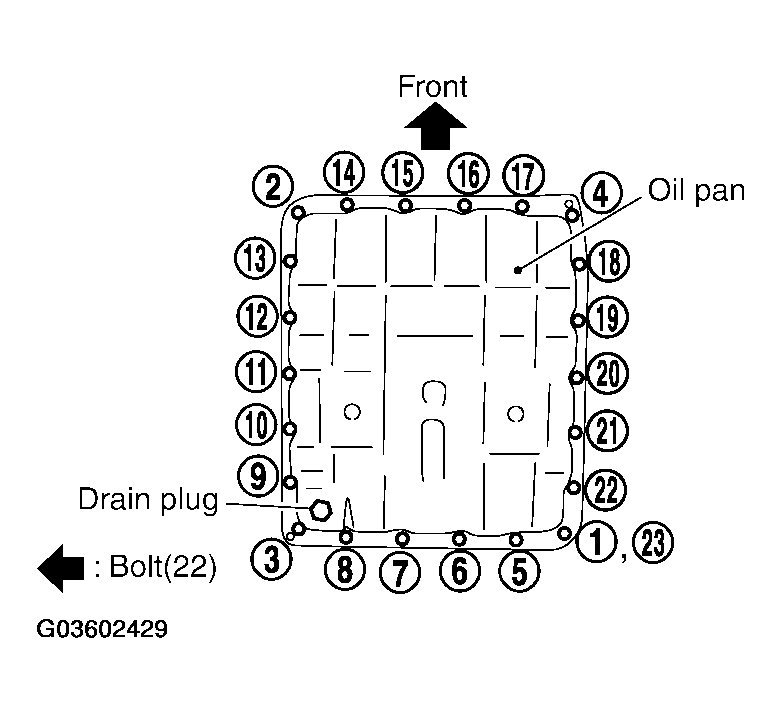

    Fig 17: Identifying Tightening Sequence Of Oil Pan Bolts
    G03602429Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Pull up A/T assembly harness connector.
    CAUTION: Be careful not to damage connector.
    Fig 18: Pulling Up A/T Assembly Harness Connector
    G03602430Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Install snap ring in A/T assembly harness connector.
  19. Connect A/T assembly harness connector.
  20. Pour ATF into transmission assembly. Refer to "CHANGING A/T FLUID ".
  21. Connect the negative battery terminal

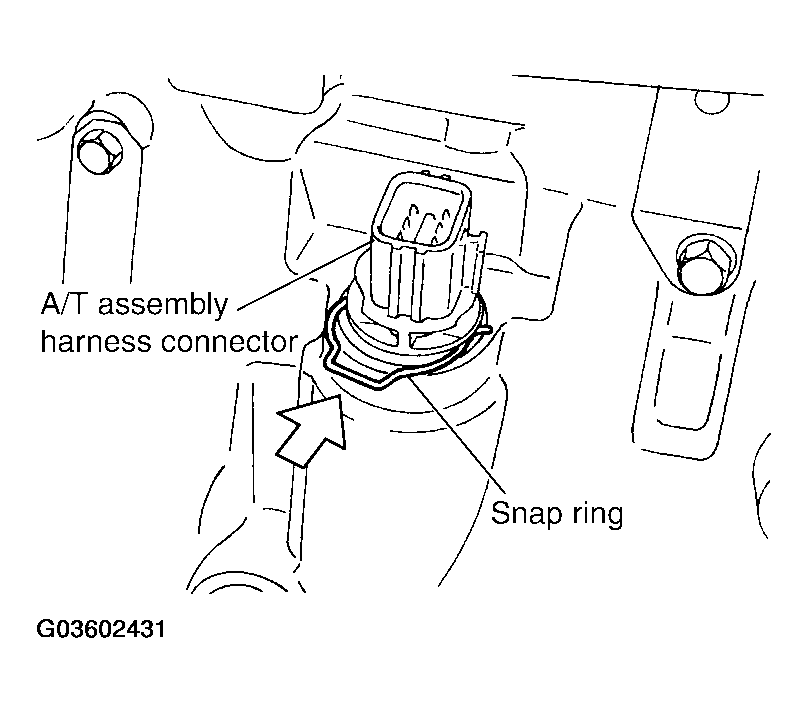

    Fig 19: Installing Snap Ring In A/T Assembly Harness Connector
    G03602431Courtesy of NISSAN MOTOR CO., U.S.A.
