Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to "SELF-DIAGNOSTIC RESULT MODE ".

Is a malfunction in the CAN communication indicated in the results?
1. YES: Check CAN communication line. Refer to "DTC U1000 CAN COMMUNICATION LINE ".
2. NO: GO TO 2.
CHECK STOP LAMP SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch "ON". (Do not start engine.)
2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out ON/OFF switching action of the "BRAKE SW".
OK or NG
1. OK: INSPECTION END
2. NG: GO TO 3.

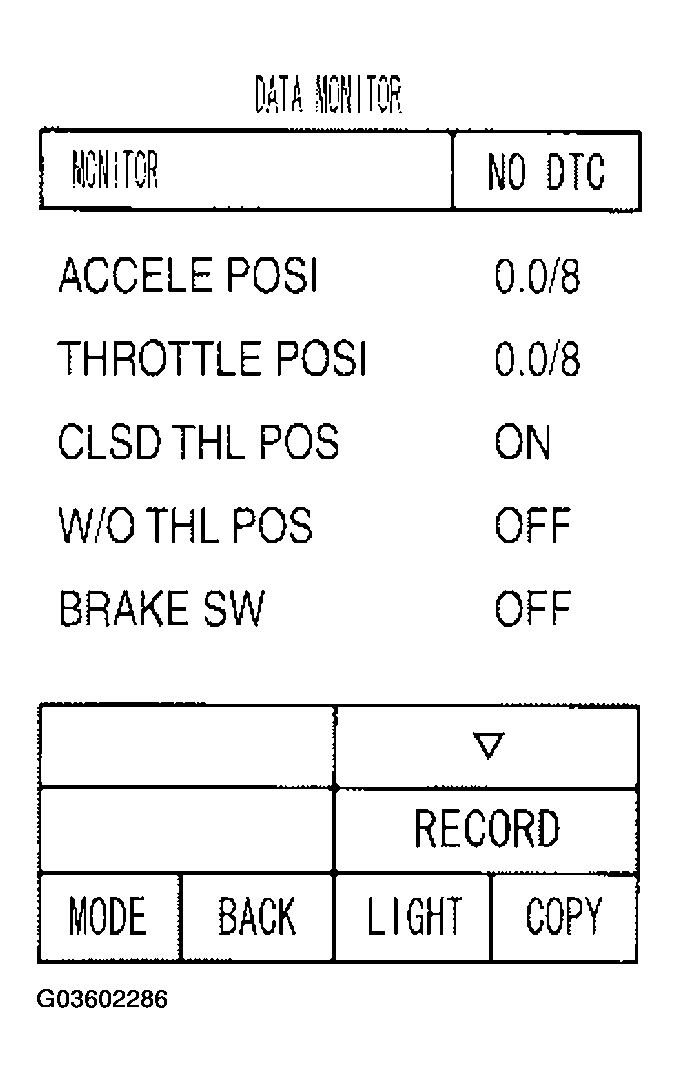

  Fig 1: CONSULT-II Data Monitor Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK STOP LAMP SWITCH

Check continuity between stop lamp switch terminals 1 and 2.

STOP LAMP SWITCH CONTINUITY

Condition	Continuity
When brake pedal is depressed	Yes
When brake pedal is released	No

Check stop lamp switch after adjusting brake pedal - refer to " BRAKE PEDAL " .

OK or NG

OK: INSPECTION END
NG: Check the following items. If NG, repair or replace damaged parts.
- Harness for short or open between battery and stop lamp switch.
- Harness for short or open between stop lamp switch and combination meter.

  Fig 2: Checking Stop Lamp Switch Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
