Circuit Description

WARNING: This page is about a different car, the 2003 Lexus RX 300 and 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For circuit diagram, see Fig 1.

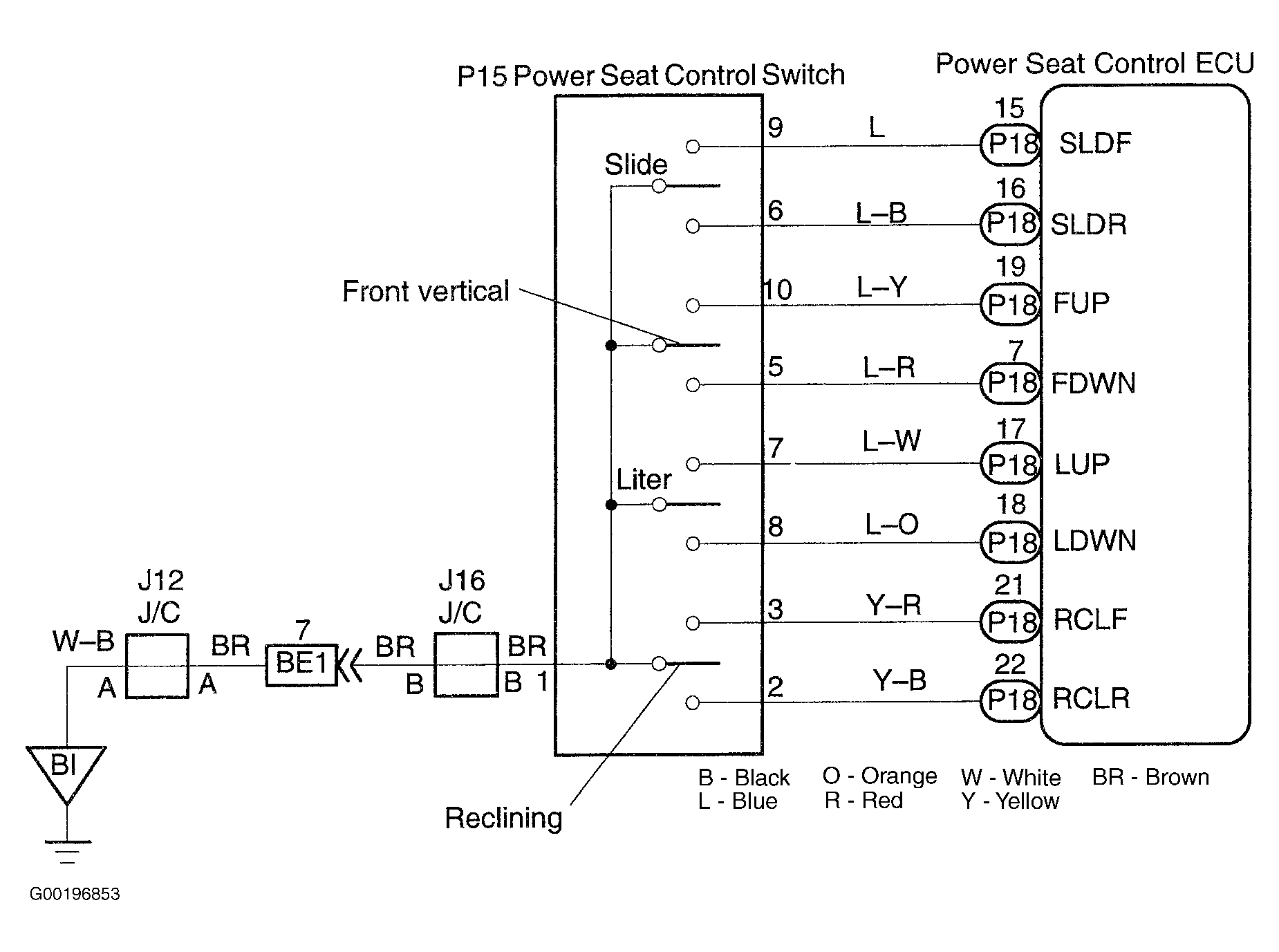

Fig 1: Identifying Power Seat Control Switch Circuit
G00196853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
