Component Inspection

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
  2. Disconnect neutral position switch harness connector.
  3. Remove neutral position switch. Refer to , "LOCATION OF ELECTRICAL PARTS ".
  4. Push and release neutral position switch and check continuity between neutral position switch terminals 1 and 2.
    CONNECTOR TERMINAL CONTINUITY SPECIFICATION

    Terminal Condition Continuity
    1 - 2 Push neutral position switch Yes
    Release neutral position switch No
  5. If NG, replace the neutral position switch. Refer to , "LOCATION OF ELECTRICAL PARTS ".

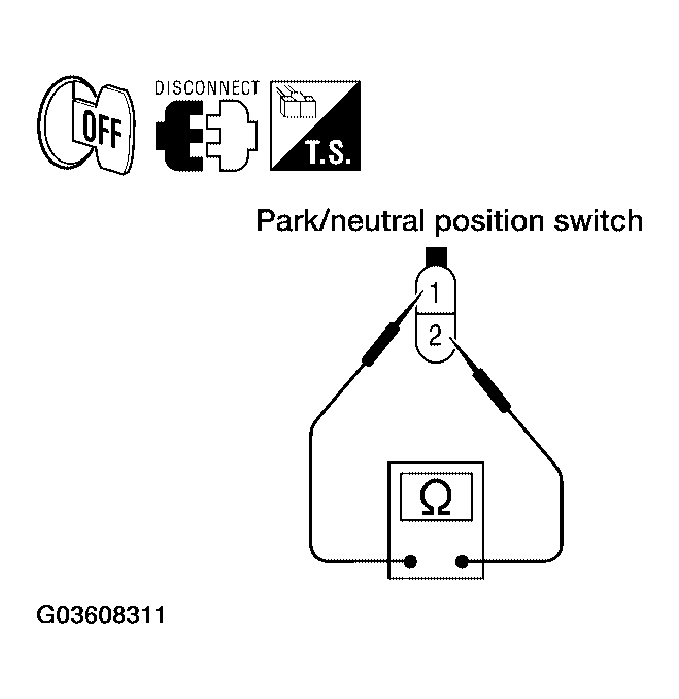

    Fig 1: Checking Continuity Between Neutral Position Switch Terminals 1 And 2
    G03608311Courtesy of NISSAN MOTOR CO., U.S.A.
