Mid Level System

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

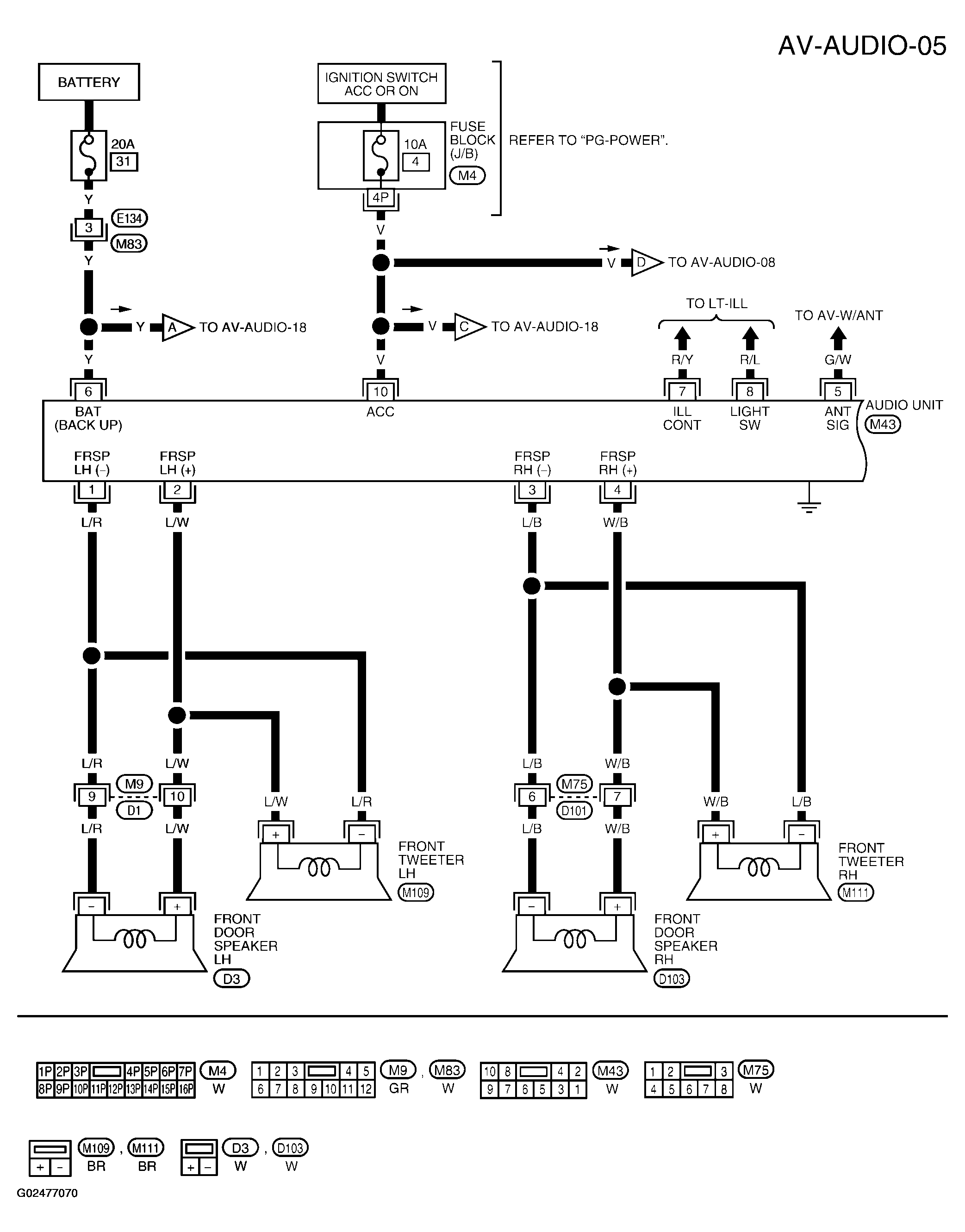

Fig 1: Wiring Diagram - Audio (Mid Level System) - AV-AUDIO-05

Courtesy of NISSAN MOTOR CO., U.S.A.

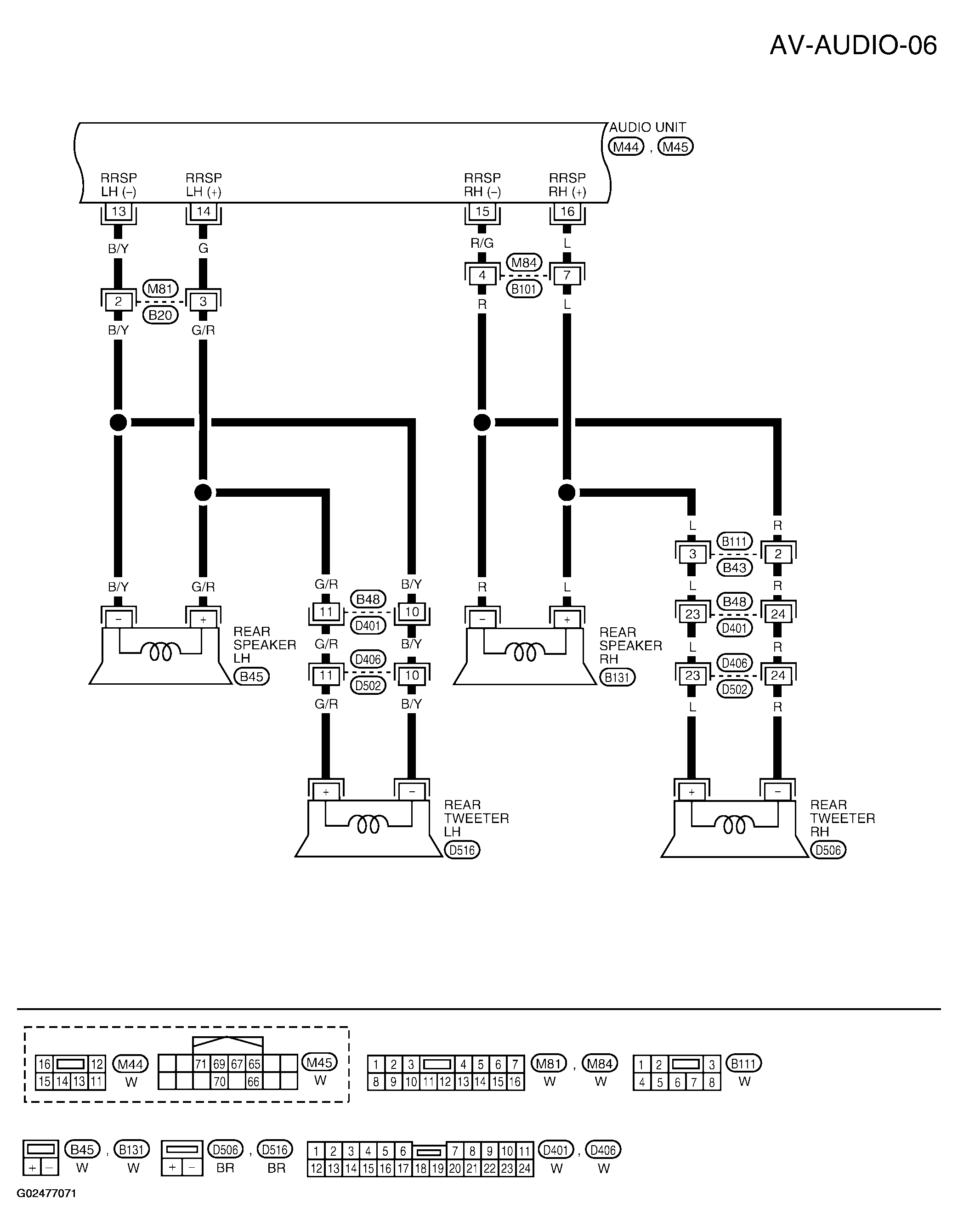

Fig 2: Wiring Diagram - Audio (Mid Level System) - AV-AUDIO-06

Courtesy of NISSAN MOTOR CO., U.S.A.

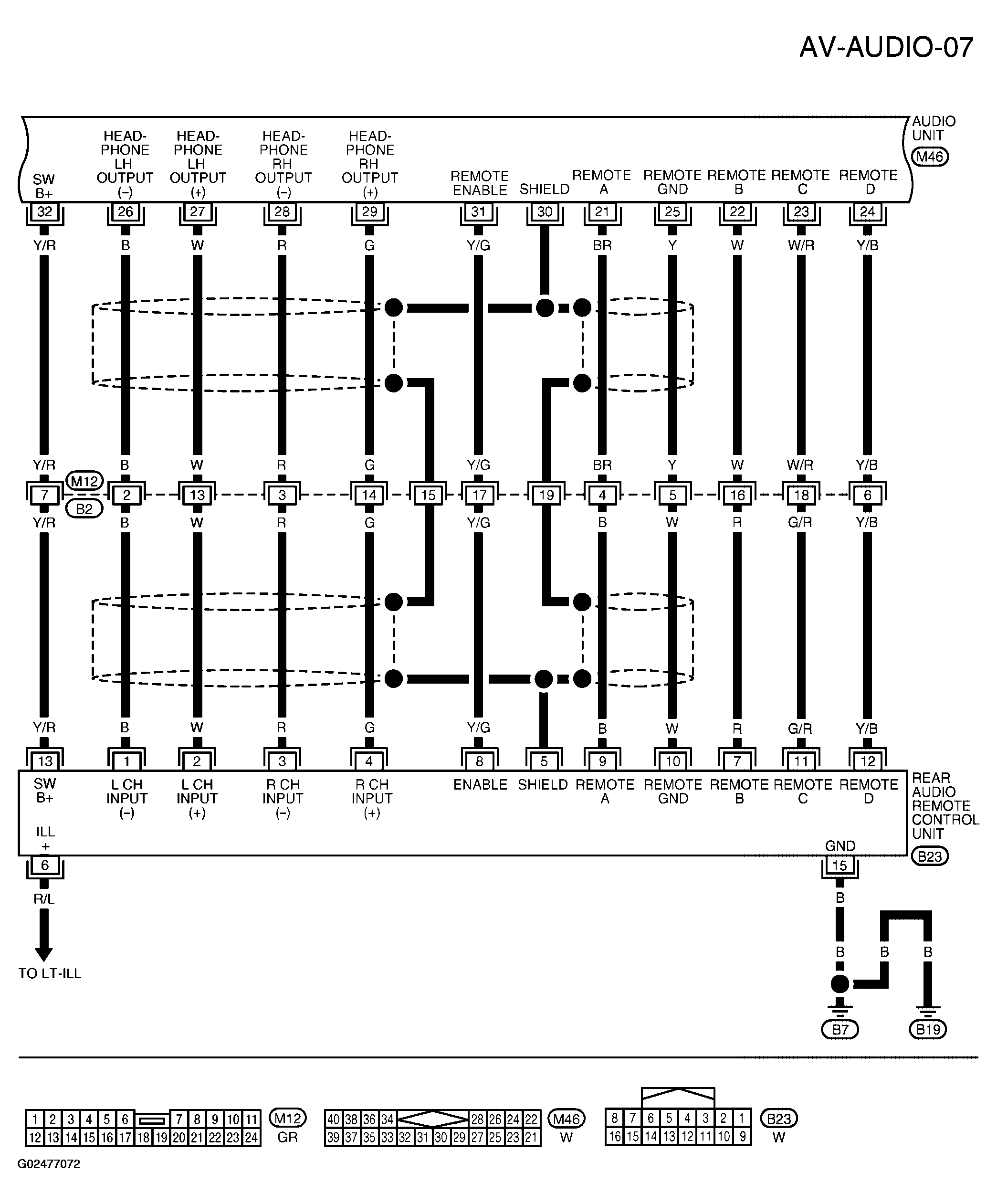

Fig 3: Wiring Diagram - Audio (Mid Level System) - AV-AUDIO-07

Courtesy of NISSAN MOTOR CO., U.S.A.

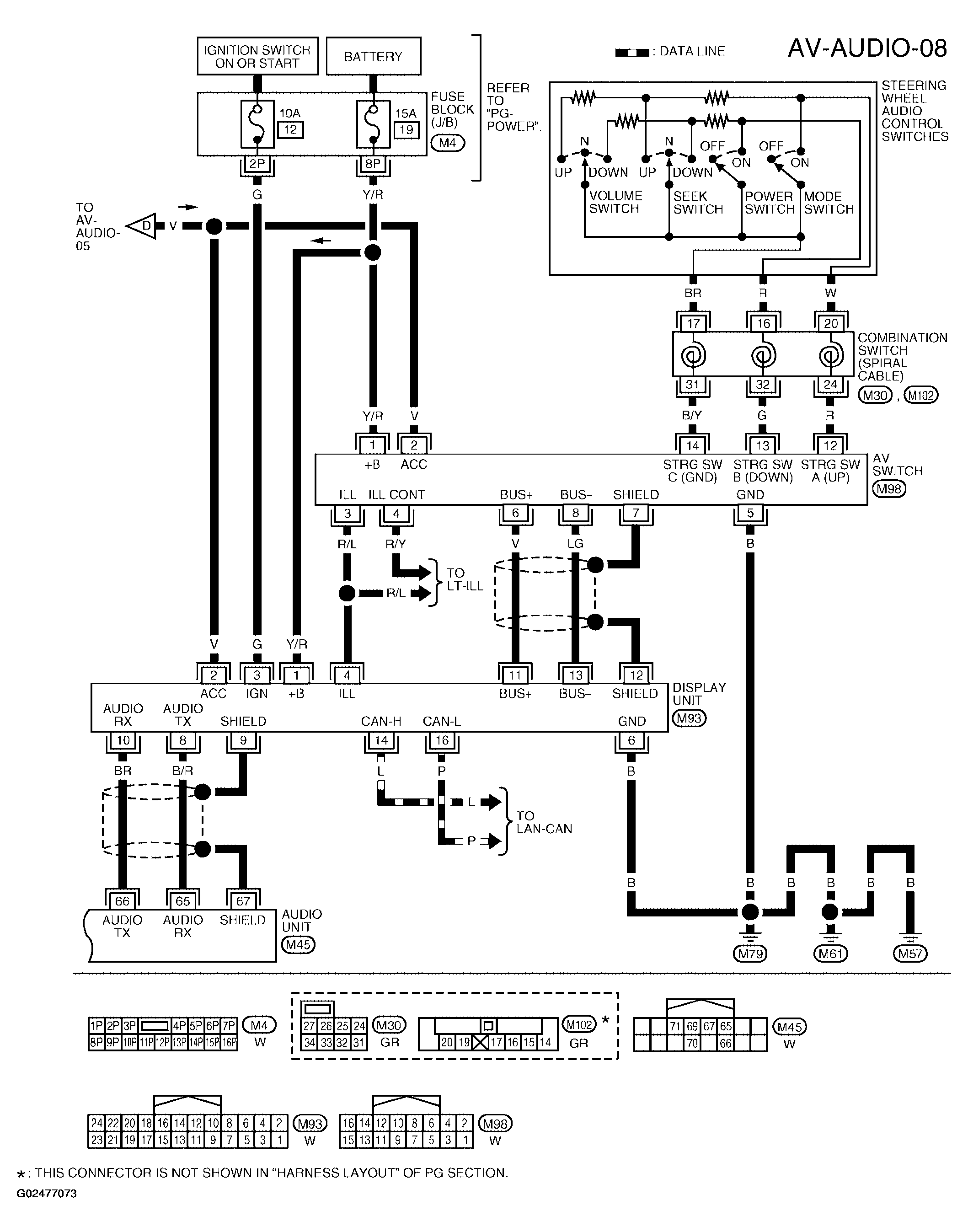

Fig 4: Wiring Diagram - Audio (Mid Level System) - AV-AUDIO-08

Courtesy of NISSAN MOTOR CO., U.S.A.
