Final Drive: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Attach side gear thrust washers to side gears, then install pinion mate thrust washers and pinion mate gears in place.
- Apply ATF to any parts.

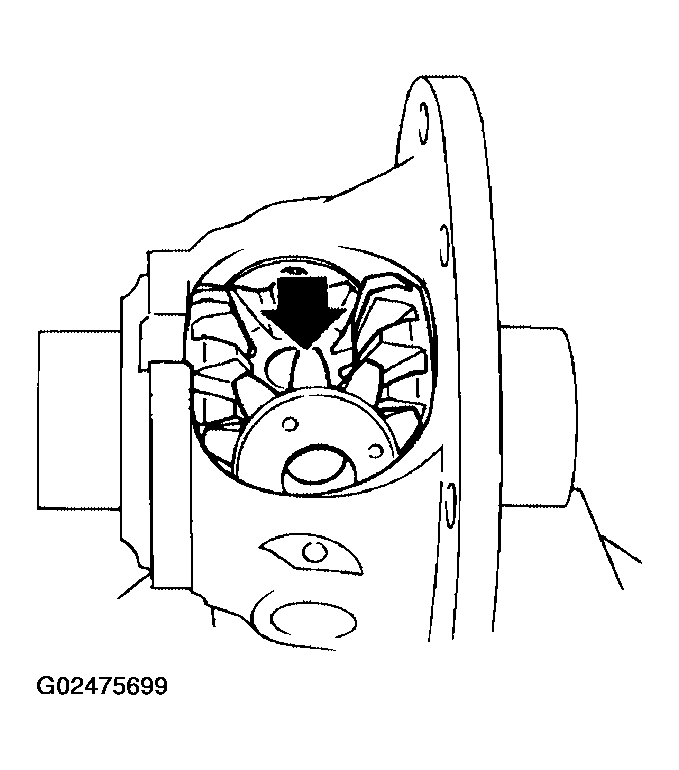

  Fig 1: Installing Pinion Mate Thrust Washers & Pinion Mate Gears
  Courtesy of NISSAN MOTOR CO., U.S.A.
Insert pinion mate shaft.
- When inserting, be careful not to damage pinion mate thrust washers.

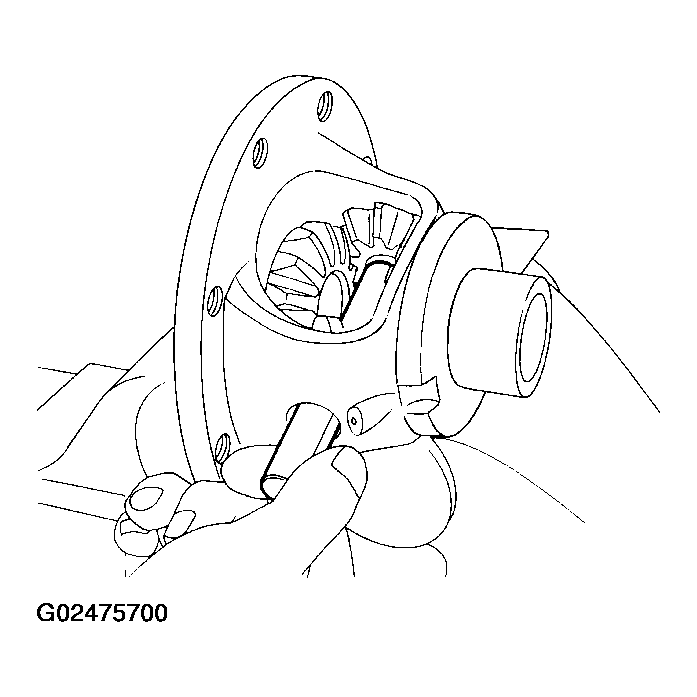

  Fig 2: Inserting Pinion Mate Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between side gear and differential case with washers following the procedure below:
1. Set Tool and dial indicator on side gear.

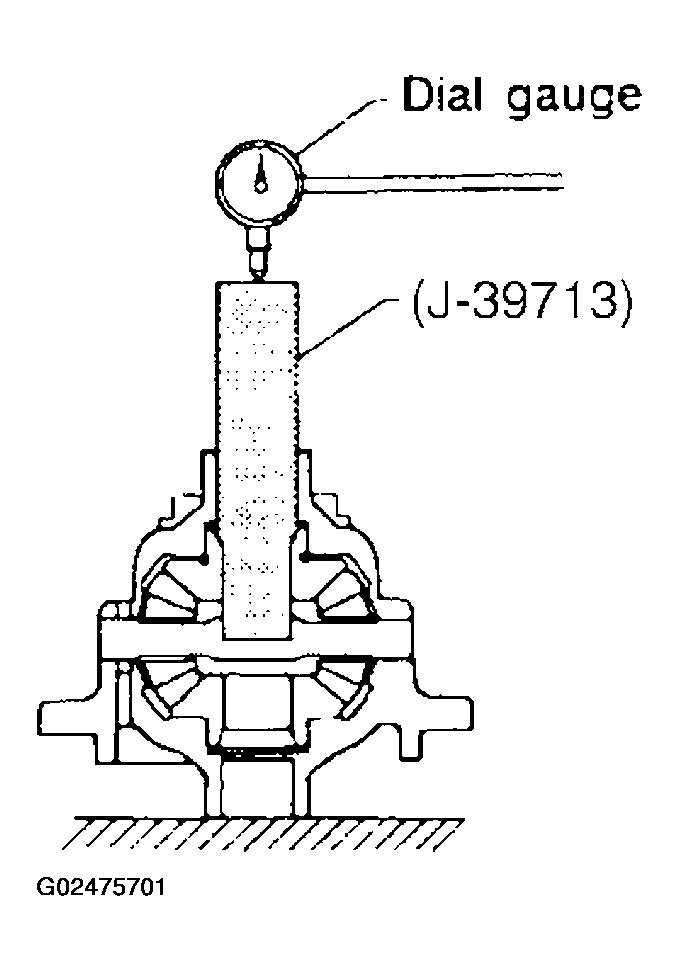

  Fig 3: Setting Tool & Dial Indicator On Side Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Move side gear up and down to measure dial indicator deflection. Always measure indicator deflection on both side gears.

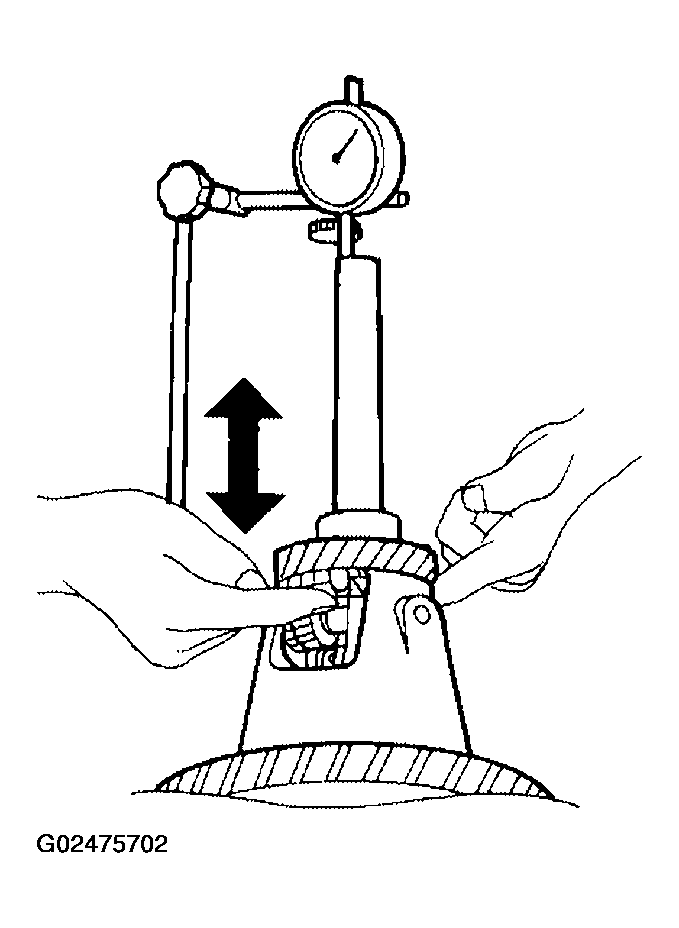

  Fig 4: Measuring Dial Indicator Deflection
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Clearance between side gear and differential case with washer: 0.1 - 0.2 mm (0.004 - 0.008 in)
3. If not within specification, adjust clearance by changing thickness of differential side gear thrust washers.
  - Differential side gear thrust washers: Refer to " DIFFERENTIAL SIDE GEAR THRUST WASHERS ".
Install lock pin.
- Make sure that lock pin is flush with case.

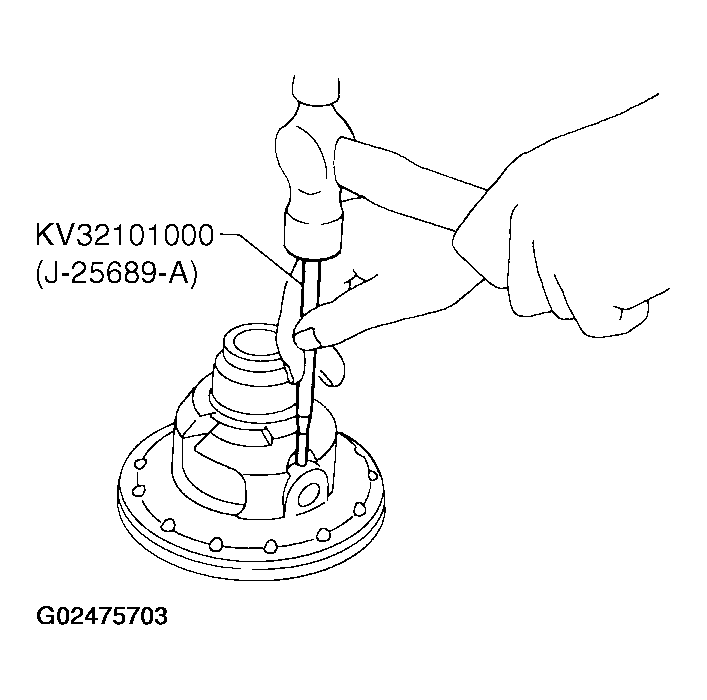

  Fig 5: Installing Lock Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.
Press on differential side bearings.

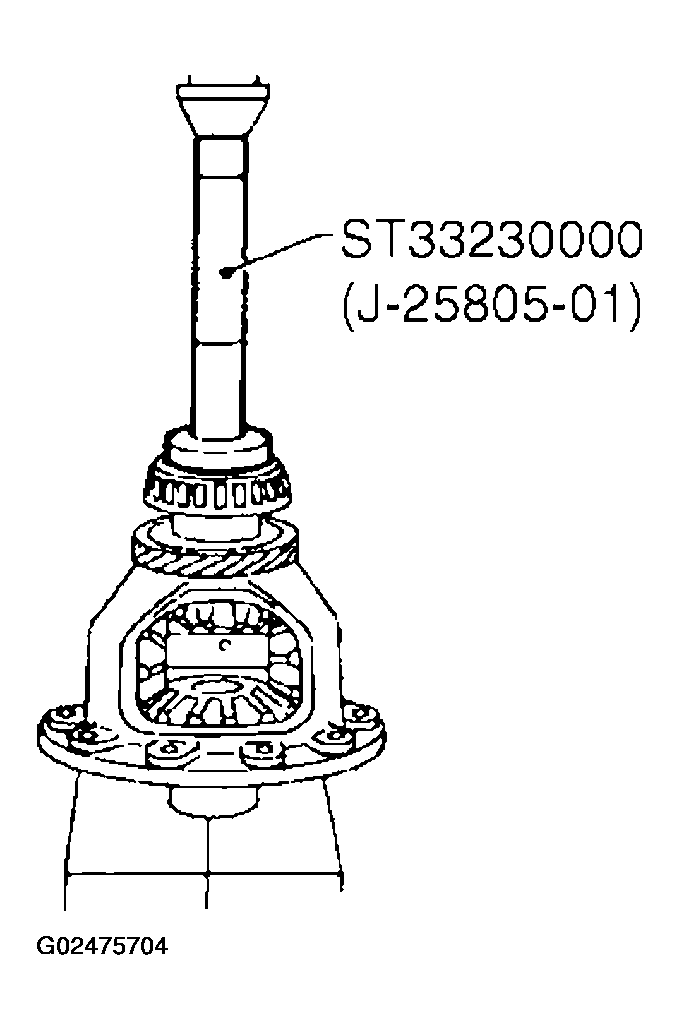

Fig 6: Pressing On Differential Side Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install final gear and tighten fixing bolts in a crisscross pattern. Tighten final gear bolts to the specified torque. Refer to "COMPONENTS ".

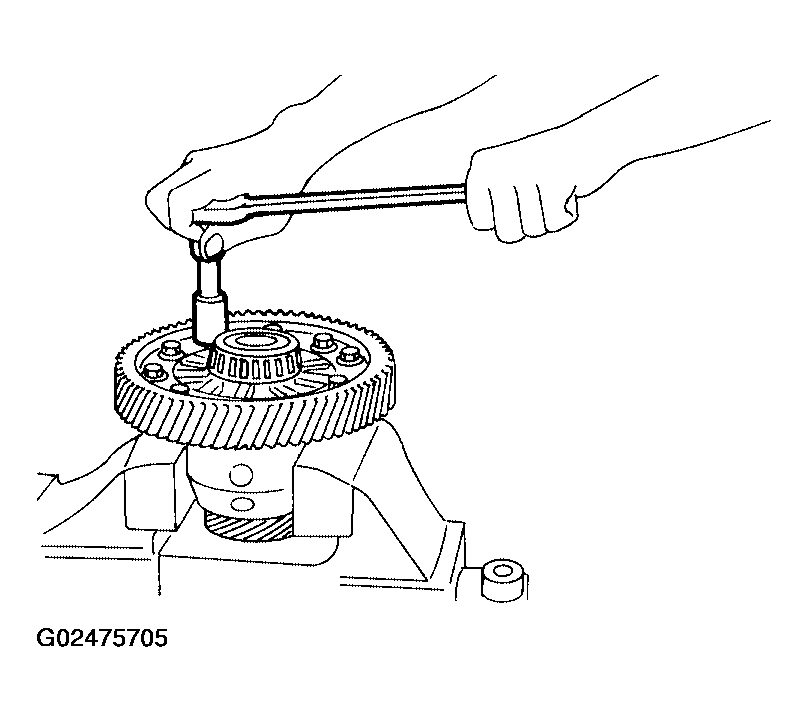

Fig 7: Installing Final Gear & Tightening Fixing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
