CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate CONSULT-II Operations Manual.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

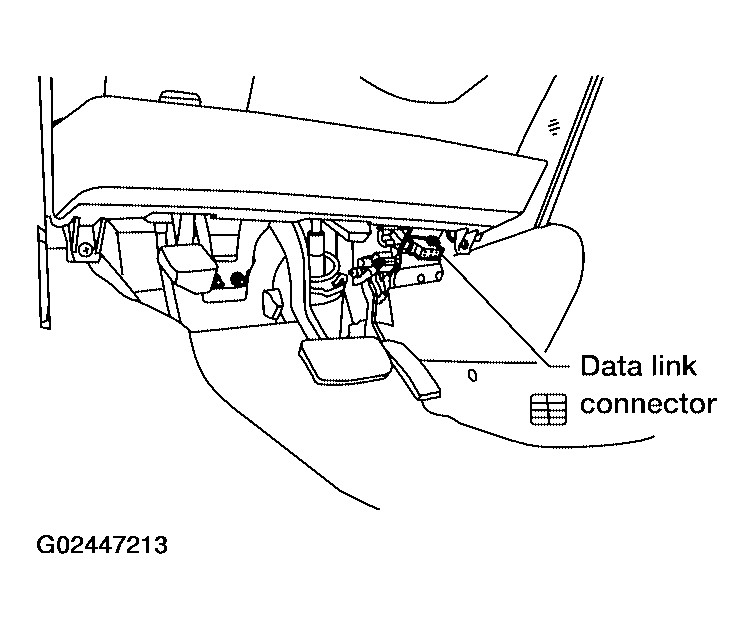

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch to ON position. (Do not start engine.)
Touch "START (NISSAN BASED VHCL)".

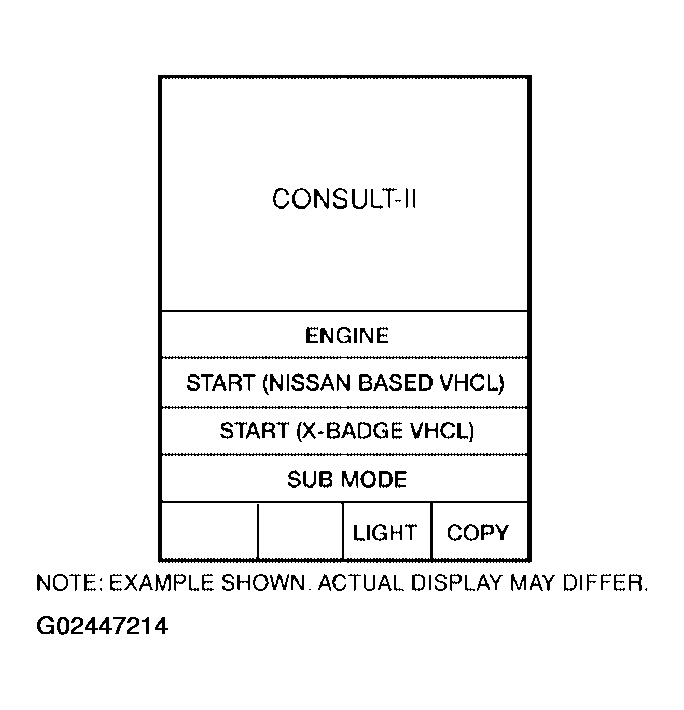

Fig 2: Consult-II - START (NISSAN BASED VHCL) Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

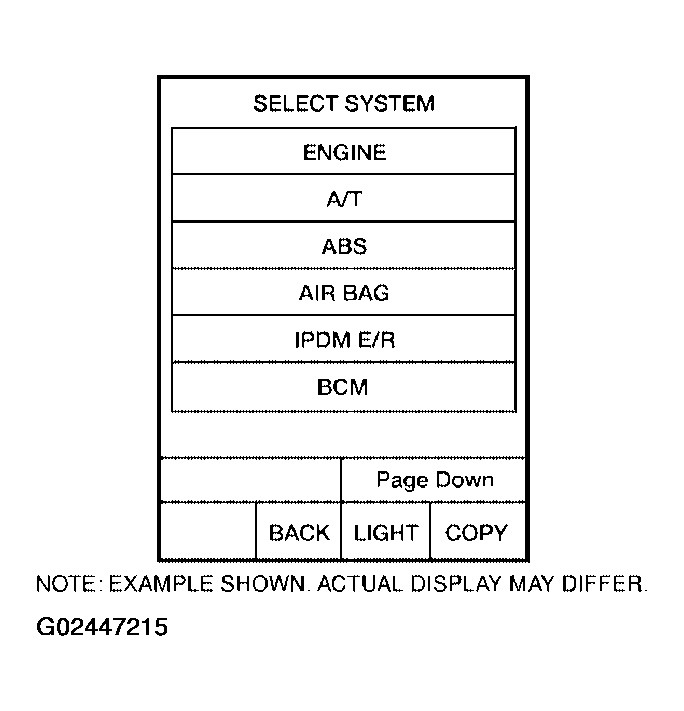

Fig 3: Consult-II - (SELECT SYSTEM) Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "CAN DIAGNOSTIC SUPPORT MONITOR".

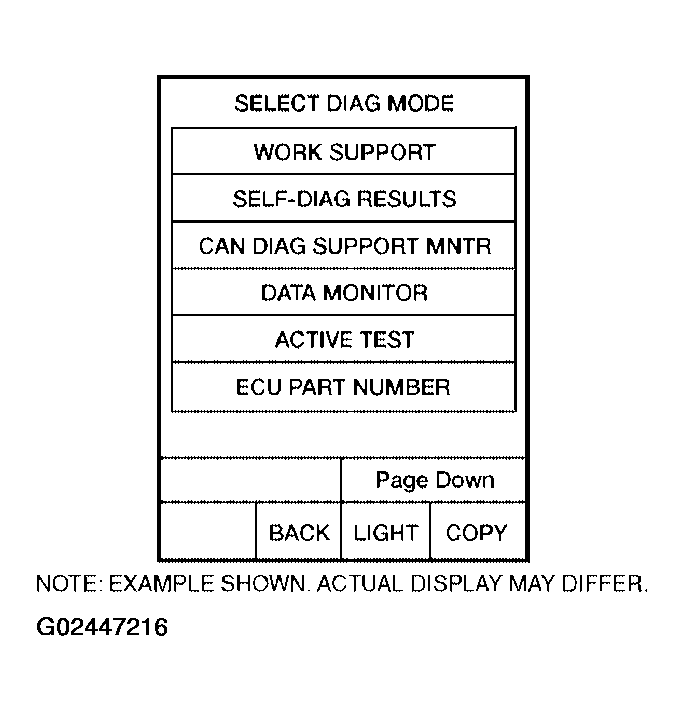

Fig 4: Consult-II - (SELECT DIAG MODE) Display
Courtesy of NISSAN MOTOR CO., U.S.A.
