O-Ring And Refrigerant Connection: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

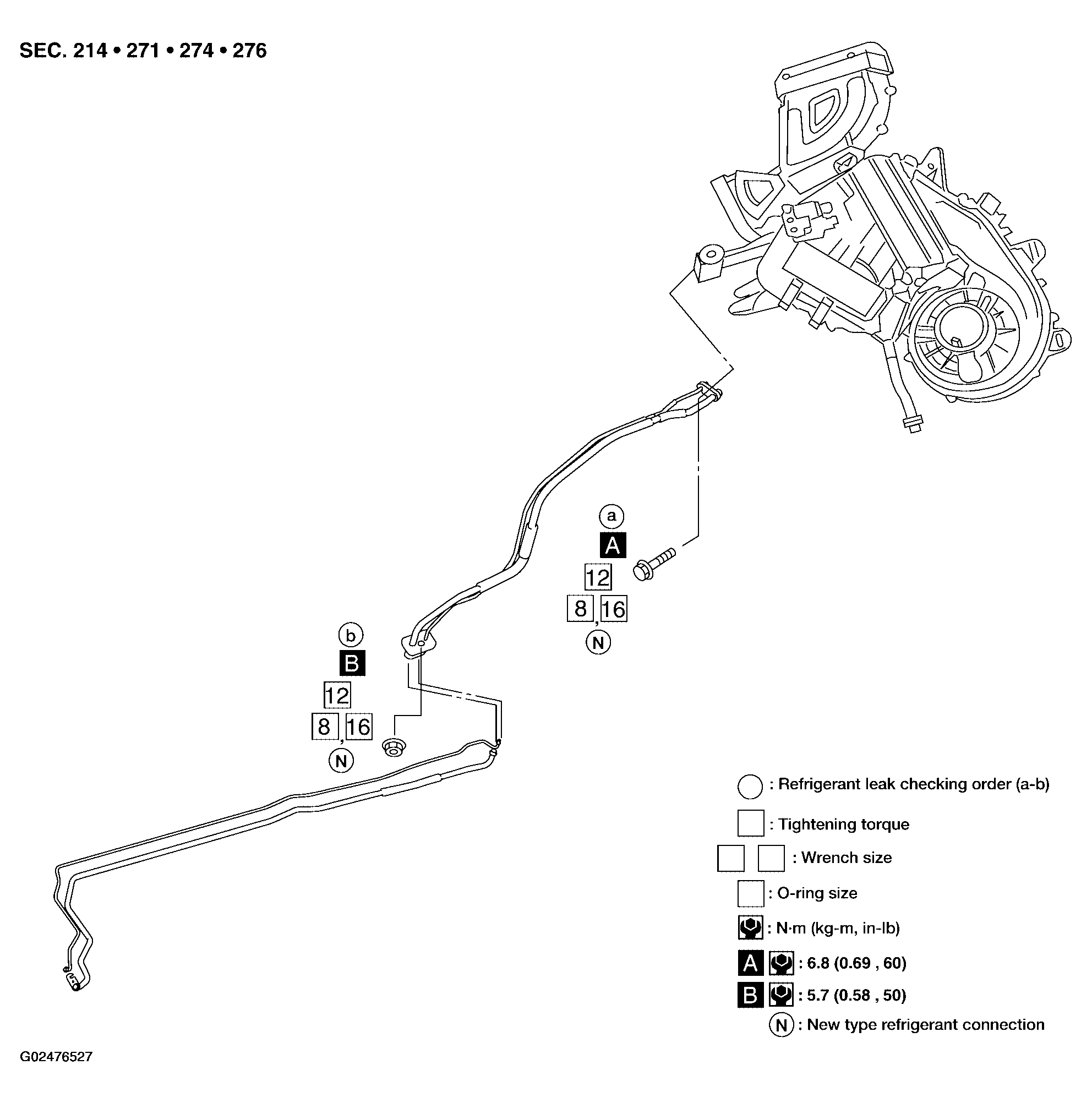

Fig 1: O-Ring And Refrigerant Connection (1 Of 2) - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

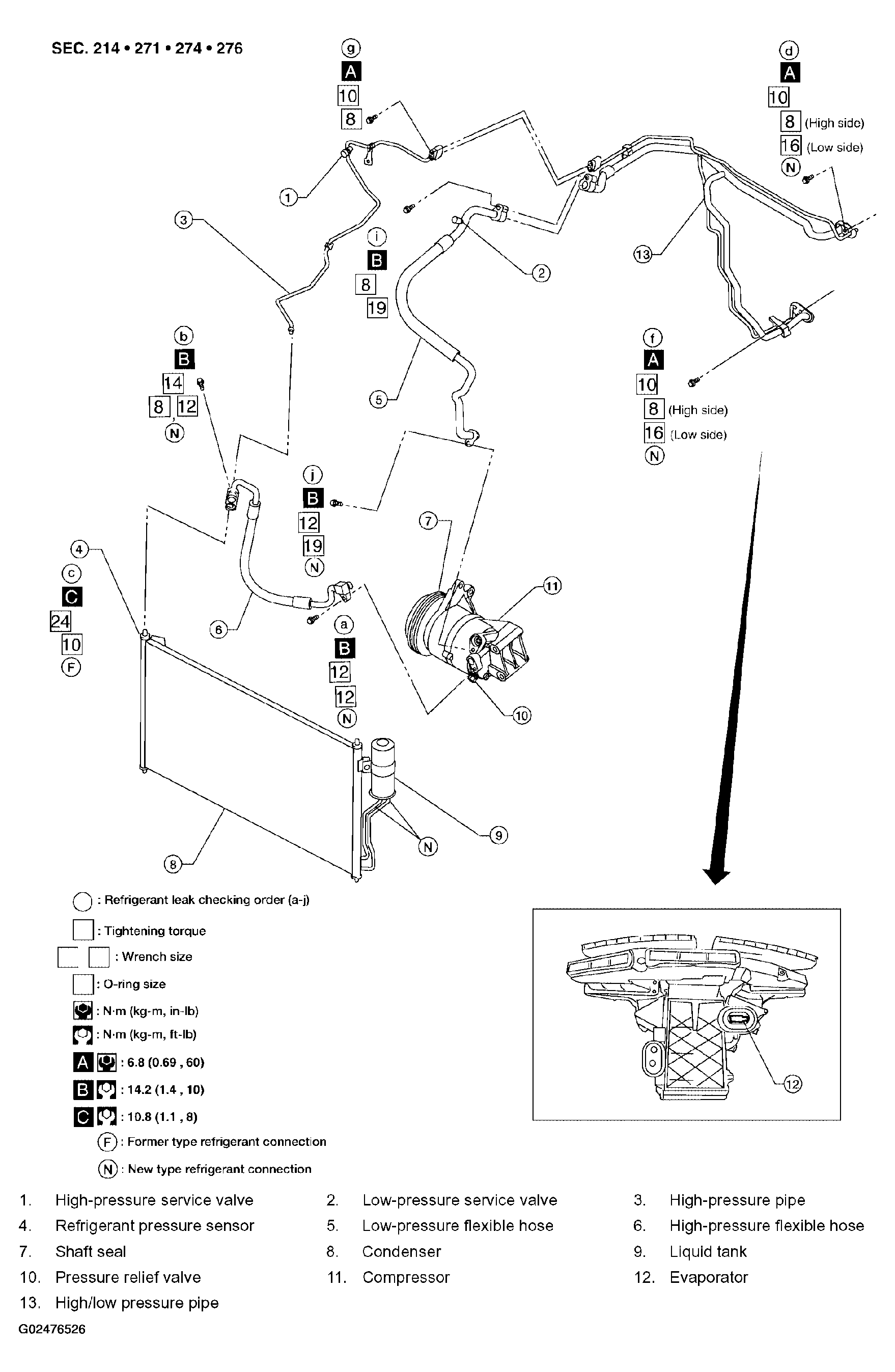

Fig 2: O-Ring And Refrigerant Connection (2 Of 2) - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: The new and former refrigerant connections use different O-ring configurations. Do not confuse O-rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at or around the connection.
