How to Read Wiring Diagrams: Description: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

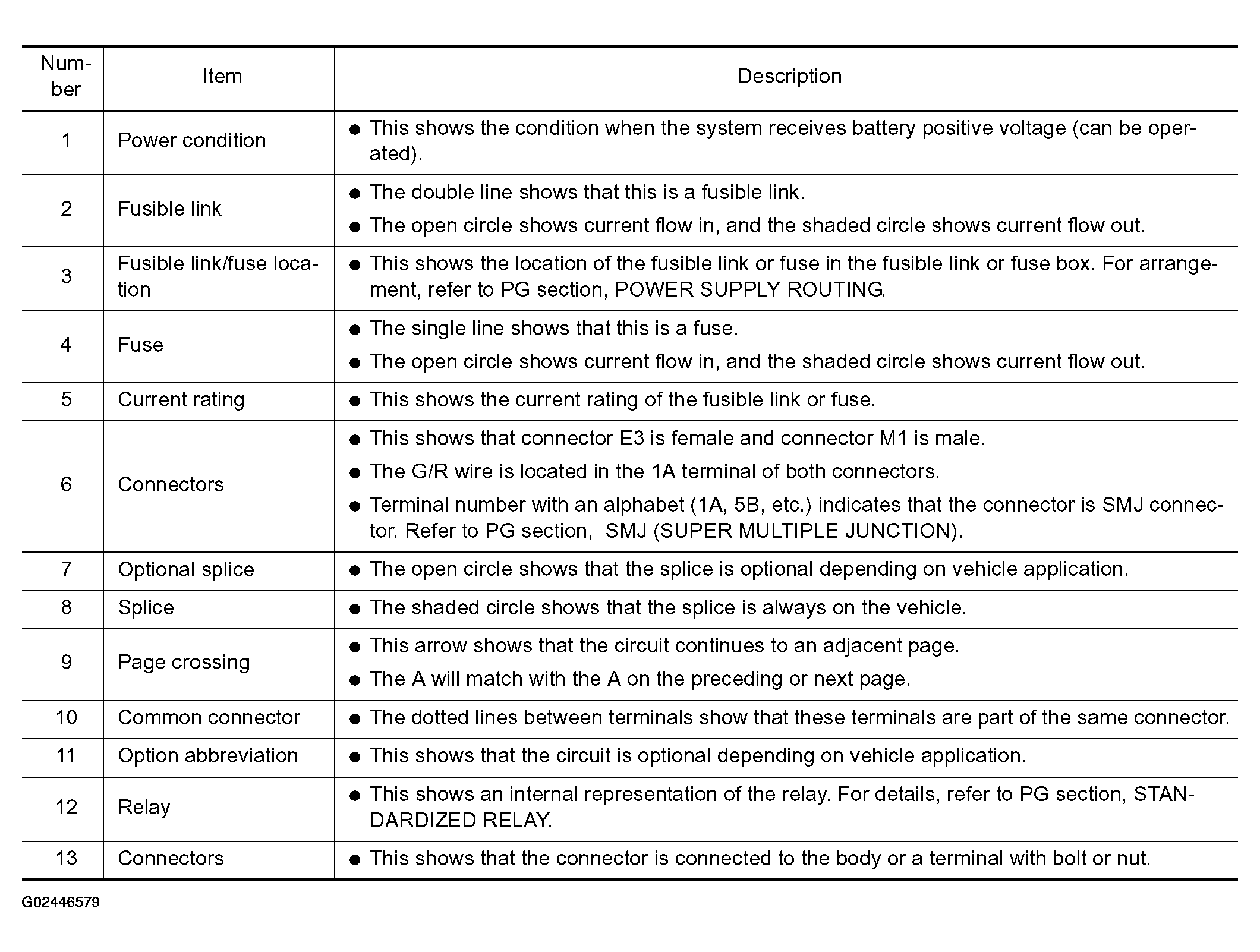

Fig 1: Optional Splice Description Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

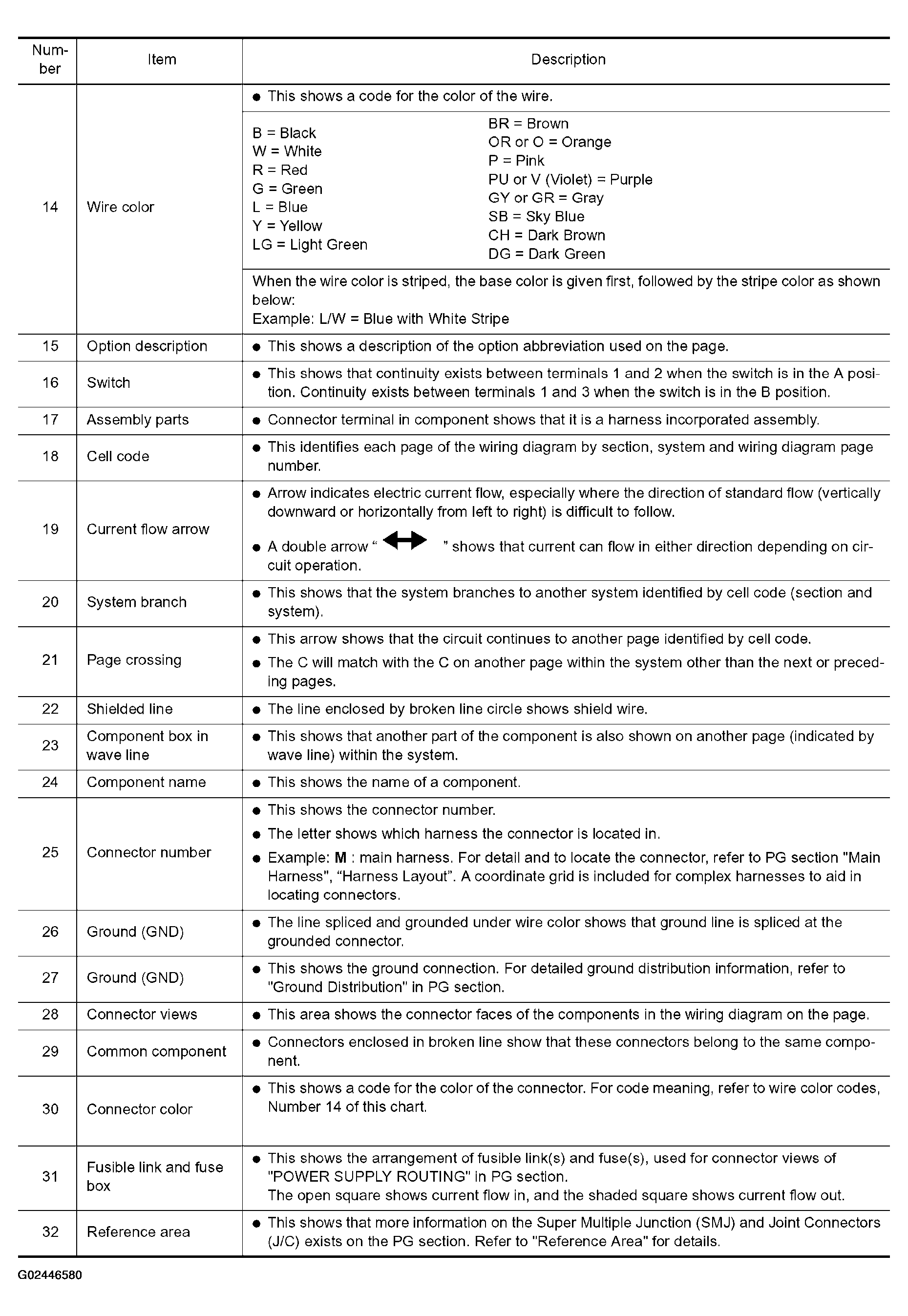

Fig 2: Optional Splice Description Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
