Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON, and switch the odo/trip meter to "trip A" or "trip B".
    NOTE: If the diagnosis function is activated with the trip meter A displayed, the mileage on the trip meter A will indicate 0000.0, but the actual trip mileage will be retained. (The same way for trip B.)
  2. Turn ignition switch OFF.
  3. While pushing the odo/trip meter switch, turn ignition switch ON again.
  4. Make sure that the trip meter displays "0000.0".
  5. Push the odo/trip meter switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
  6. All the segments on the odo/trip meter and A/T indicator illuminate, and simultaneously the low-fuel warning lamp indicator illuminates. At this time, the unified meter control unit is turned to diagnosis mode.

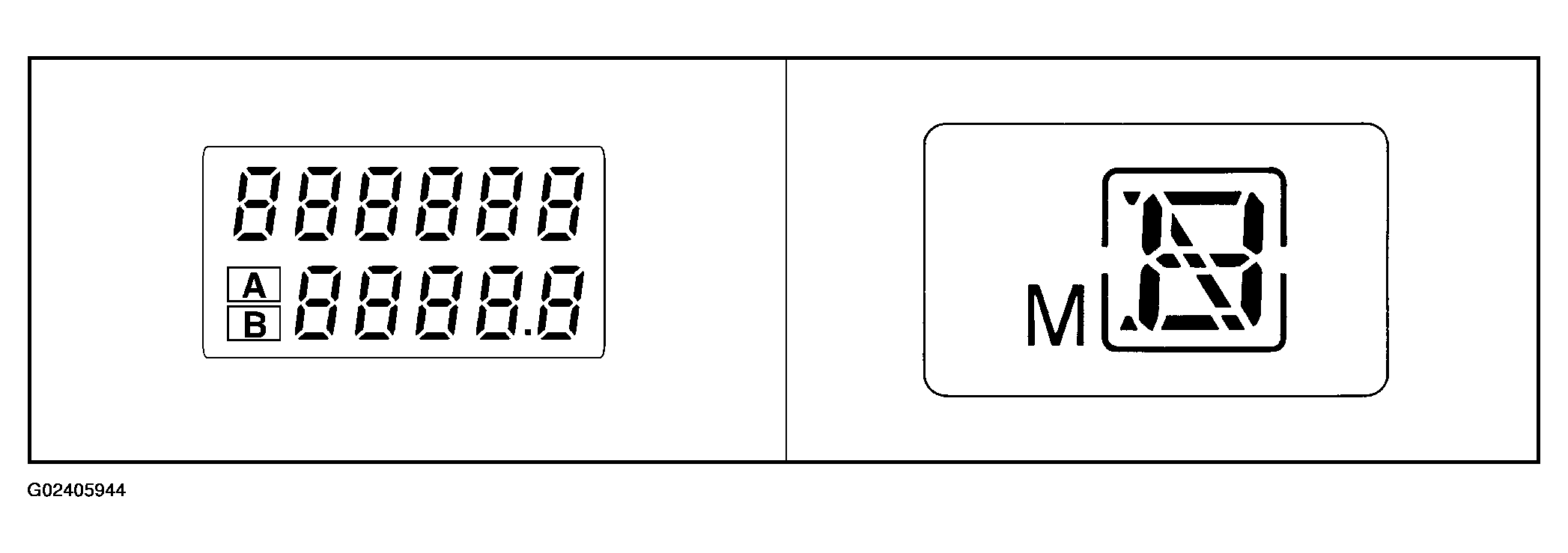

    Fig 1: Indicator Lamps Illumination
    G02405944Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Push the odo/trip meter switch. Each meter/gauge should indicate as shown in the figure while pushing odo/trip meter switch. (At this time, the low-fuel warning lamp goes off).
    Fig 2: Pushing Odo/Trip Meter Switch
    G02405945Courtesy of NISSAN MOTOR CO., U.S.A.
