Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 and Fig 3 .

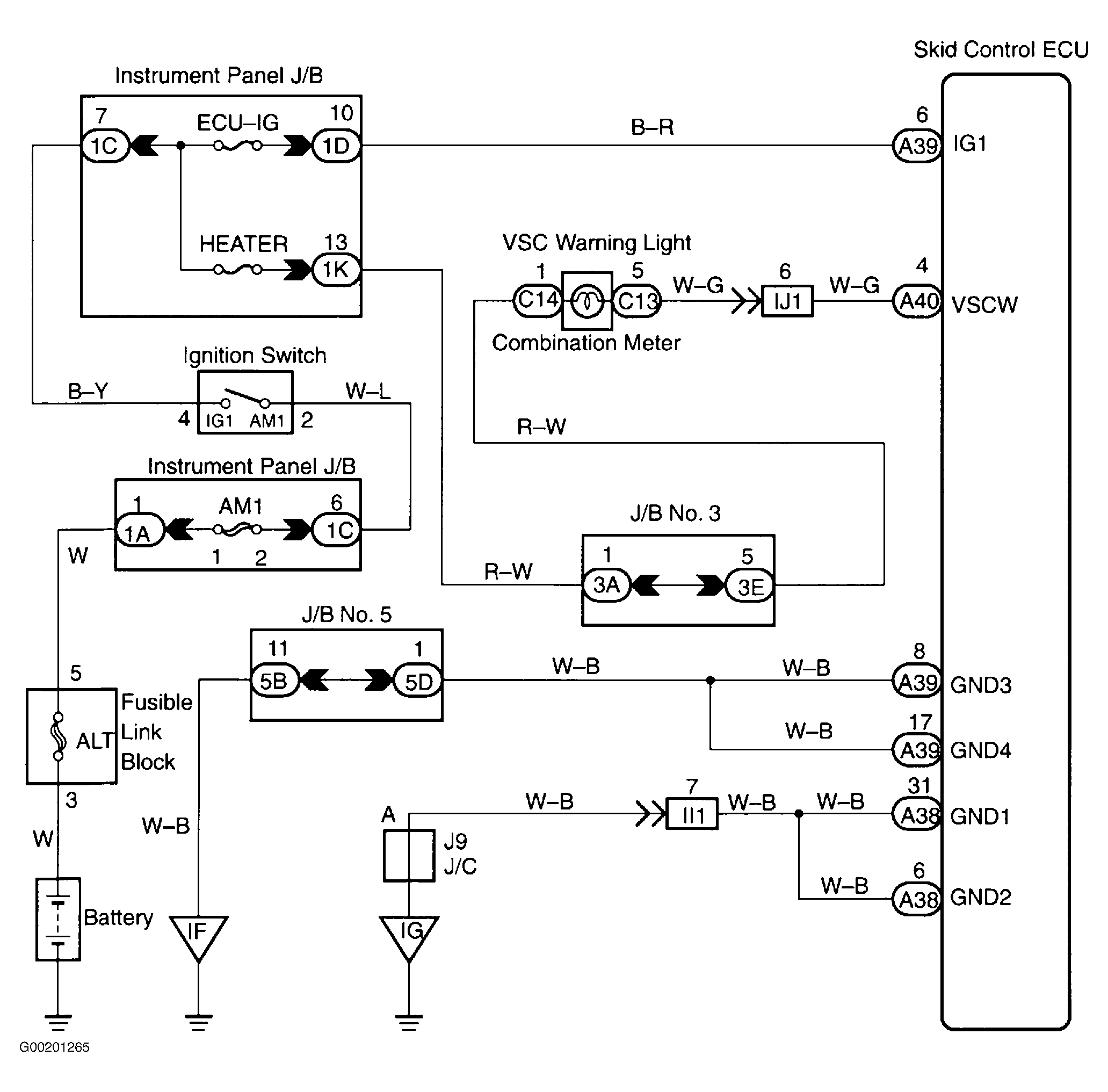

Fig 1: Wiring Diagram VSC Warning Light Circuit
G00201265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

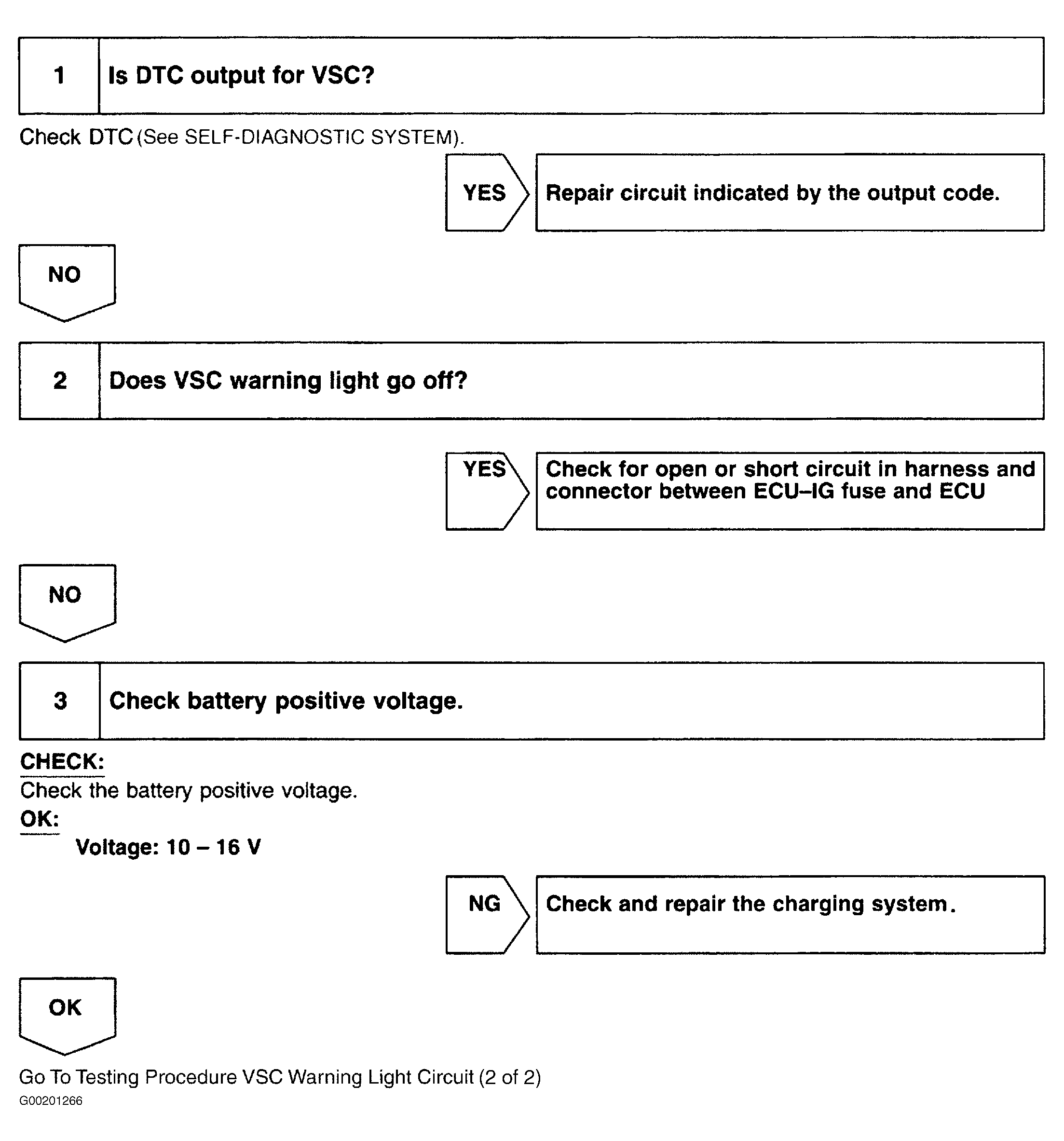

Fig 2: Testing Procedure VSC Warning Light Circuit (1 Of 2)
G00201266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

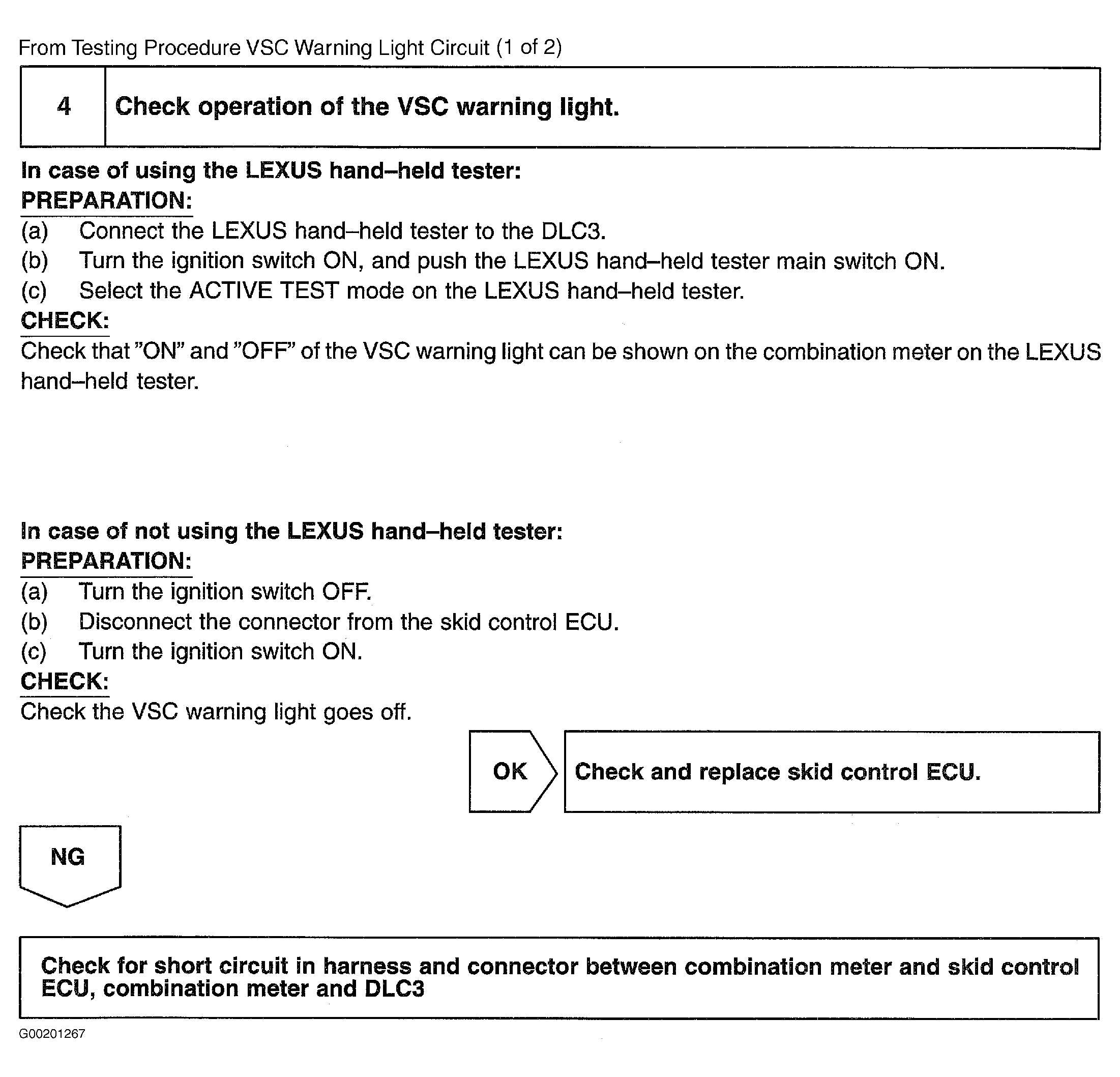

Fig 3: Testing Procedure VSC Warning Light Circuit (2 Of 2)
G00201267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
