Section 1436 (Automatic Transmission)
>>
Trouble Diagnosis
>>
Consult-II Reference Value
>>
Data Monitor Mode
>>
Display Items List
Display Items List
WARNING:
This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

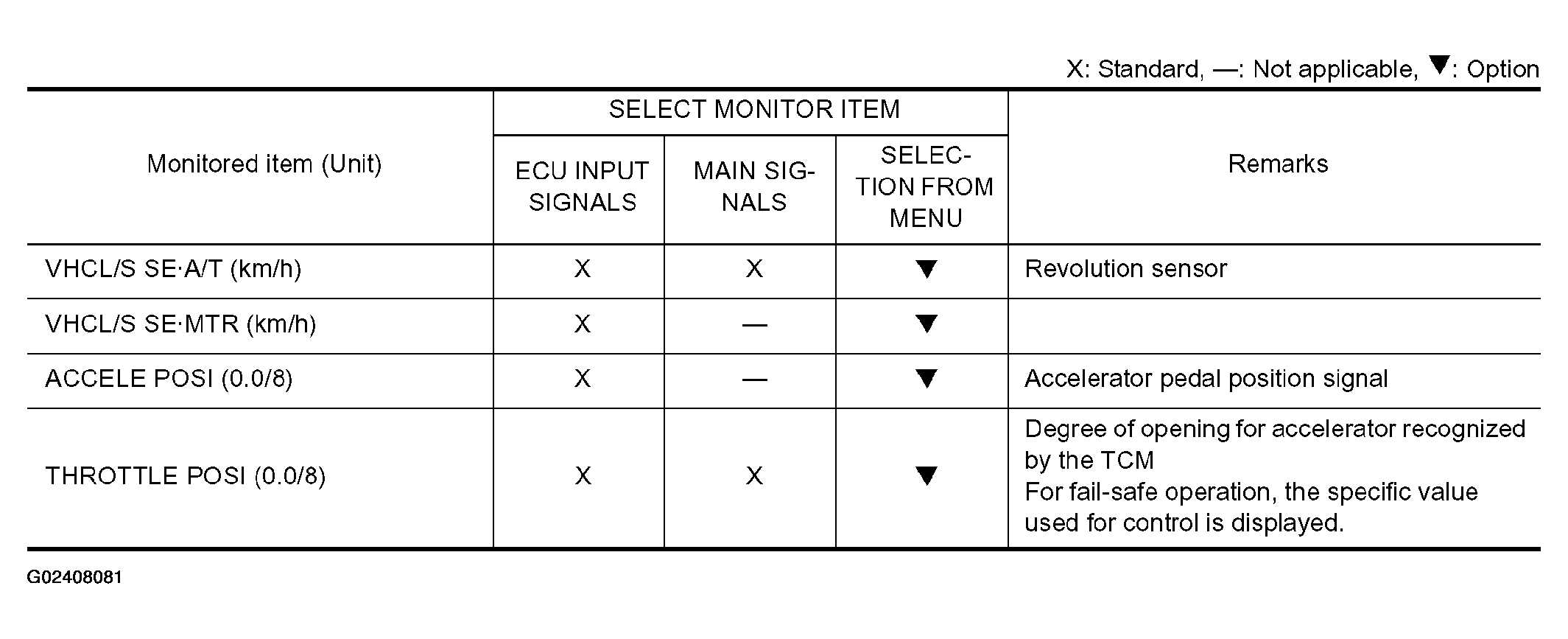

Fig 1: Items List Chart Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

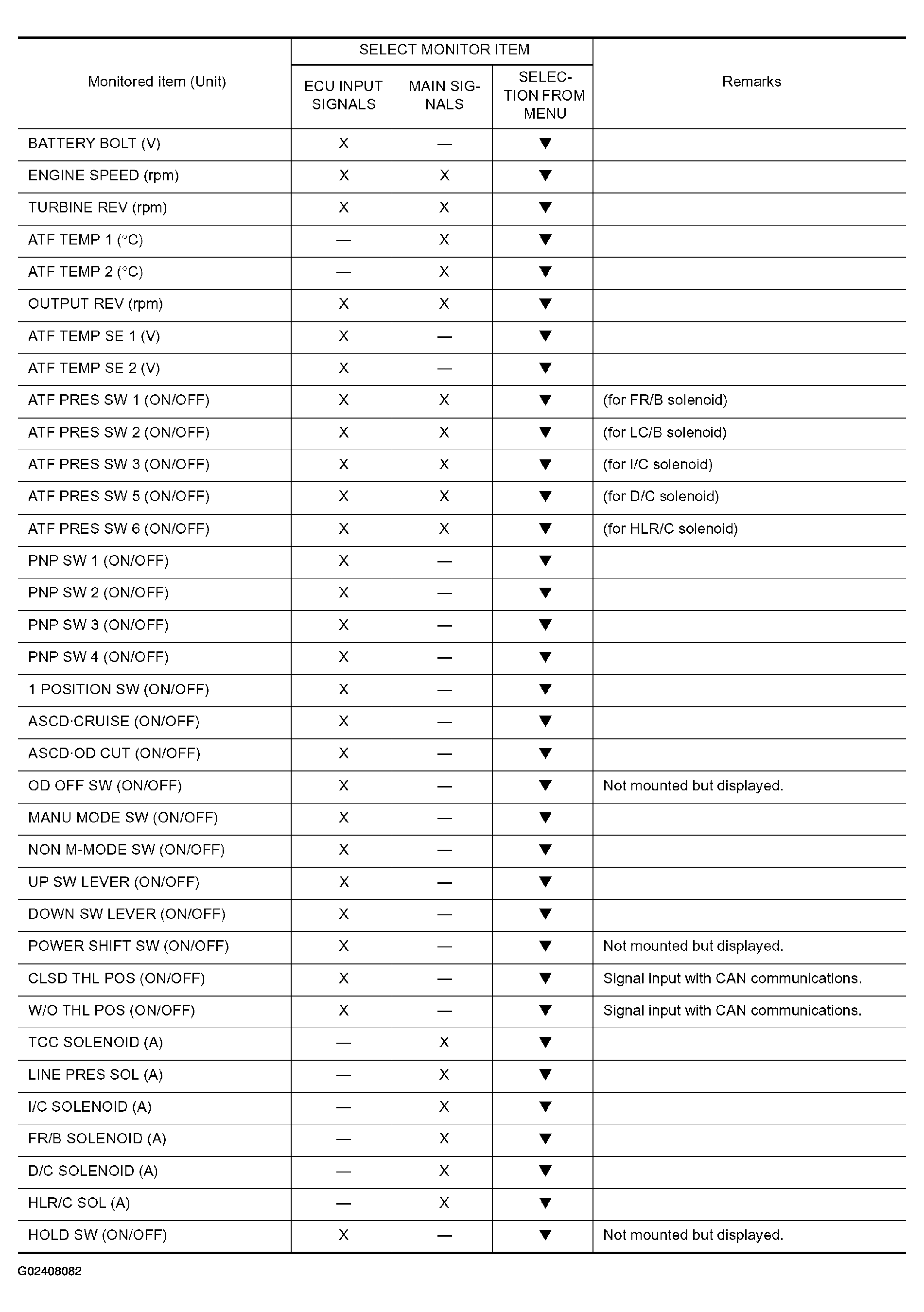

Fig 2: Items List Chart Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Items List Chart Display (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Items List Chart Display (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
