Vehicle Speed When Performing and Releasing Complete Lock-up

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

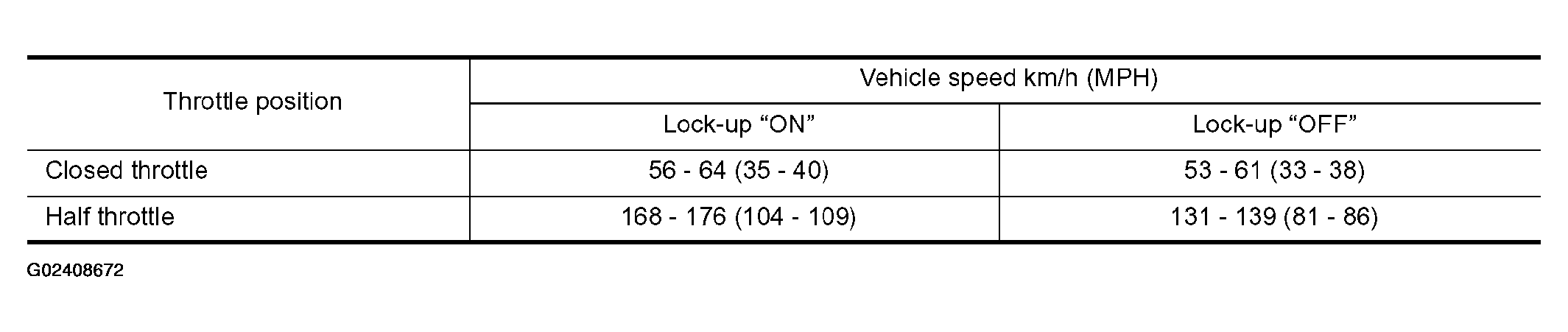

Fig 1: Vehicle Speed Specifications Chart (When Performing & Releasing Complete Lock-Up)

Courtesy of NISSAN MOTOR CO., U.S.A.

At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal: OFF)
At half throttle, the accelerator opening is 4/8 of the full opening.
