Part Installation Direction

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Referring to front marks, install parts shown in the figure.

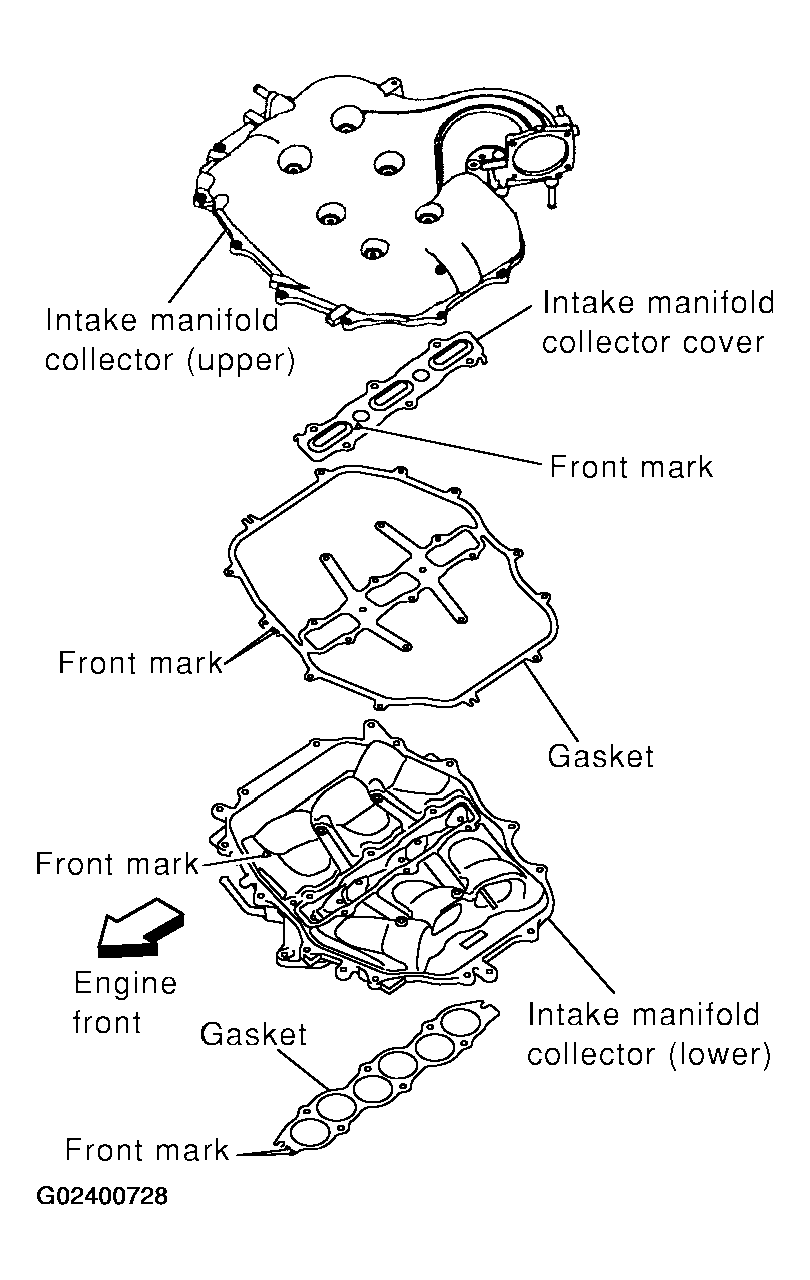

Fig 1: Installing Parts Direction
G02400728Courtesy of NISSAN MOTOR CO., U.S.A.
