Without Consult-II: Notes

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Go to operation check after asking the customer for symptom information. Refer to "ACTION TEST ".
Stop the vehicle to start the self-diagnosis.
Turn ignition switch OFF.
From 5 seconds through 15 seconds after turning ignition switch ON, press RESUME/ACCELERATE switch 5 times, and SET/COAST switch 5 times.
CAUTION:
- Never start the engine.
- Never turn the MAIN switch ON.
- When operation above is not completed from 5 seconds through 15 seconds, start again from above GO TO 3.
- If self-diagnosis mode cannot be started after several attempts, the ICC unit may have had malfunction. Repair or replace it. Refer to "SELF-DIAGNOSIS BY ICC SYSTEM DISPLAY WILL NOT RUN ".
Fig 1: Resume/Accelerate Timing Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
When self-diagnosis mode is started, DTC are shown on set vehicle speed indicator.

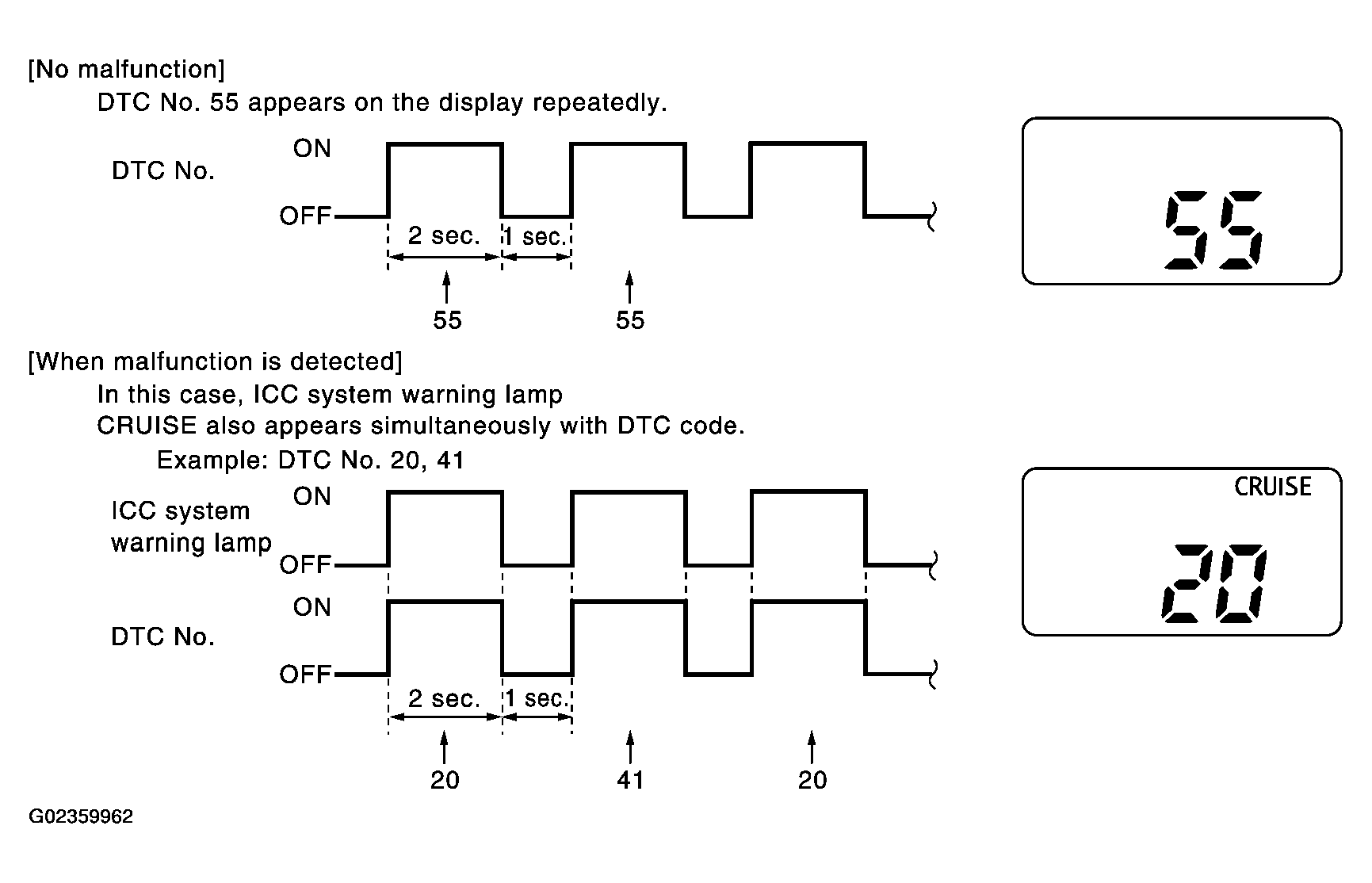

Fig 2: Self-Diagnosis Mode Description
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- DTC will disappear after 5 minutes.
- When more than one malfunctions are detected, a maximum of 3 code numbers can be stored; the latest malfunction will be displayed first.
Check "DIAGNOSTIC TROUBLE CODE (DTC) CHART ", and repair or replace if necessary.
After repair, erase DTC stored in the ICC unit.
DTC 55 will be shown.
Turn ignition switch OFF to exit the diagnosis.
Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC warning lamp (Orange) does not illuminate.
