Removal and Installation of Rear View Camera: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door finisher lower. Refer to "REMOVAL AND INSTALLATION ".

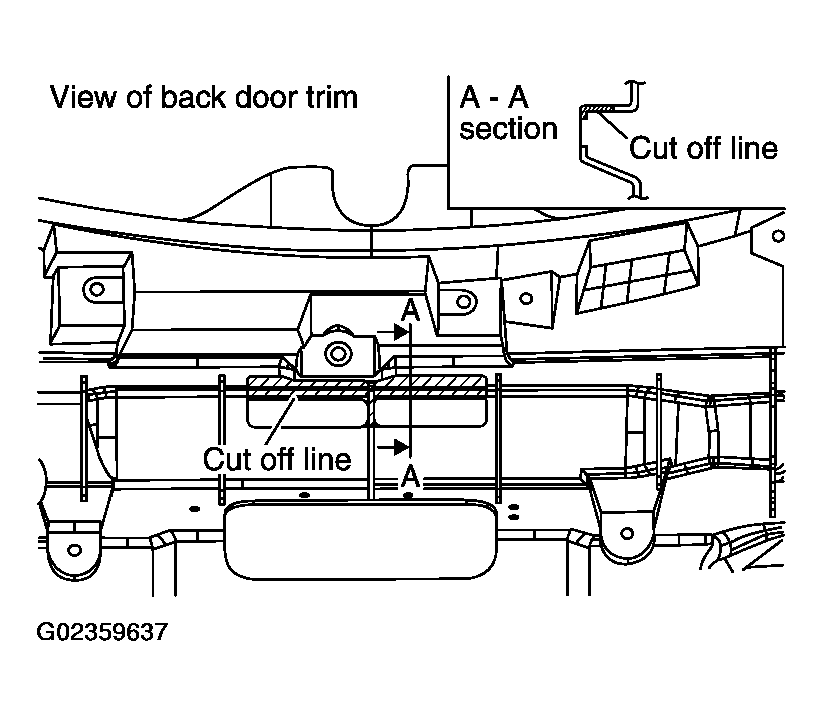

  2. Cut off back door module along the line.
  3. Disconnect rear view camera connector.
    Fig 1: Disconnecting Rear View Camera Connector
    G02359637Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove screws (2), and remove rear view camera.
    Fig 2: Removing Rear View Camera
    G02359638Courtesy of NISSAN MOTOR CO., U.S.A.
