Preliminary Check

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Infiniti FX45, 2005 Infiniti FX35, 2004 Infiniti FX45, 2004 Infiniti FX35, and 2003 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK SELF-DIAGNOSTIC RESULTS OF UNIFIED METER AND A/C AMP.

    Select "METER A/C AMP" on CONSULT-II, and perform self-diagnosis of unified meter and A/C amp. Refer to "CONSULT-II FUNCTION (METER A/C AMP) ".

    Self-diagnostic results content

    1. No malfunction detected: O TO 2.
    2. Malfunction detected: Go to "SYMPTOM CHART 2 ".
  2. CHECK WARNING LAMP ILLUMINATION

    Turn ignition switch ON. (Engine stopped)

    Do warning lamps (such as malfunction indicator lamp and oil pressure warning lamp) illuminate?

    1. YES: GO TO 3.
    2. NO: Check power supply circuit of combination meter when ignition switch is ON. Refer to "POWER SUPPLY AND GROUND CIRCUIT INSPECTION ".
  3. CHECK SELF-DIAGNOSIS OPERATION OF COMBINATION METER

    Perform combination meter self-diagnosis. Refer to "SELF-DIAGNOSIS FUNCTION ".

    Does self-diagnosis function operate?

    1. YES: GO TO  5.
    2. NO: GO TO 4.
  4. CHECK POWER SUPPLY AND GROUND CIRCUIT OF COMBINATION METER

    Check power supply and ground circuit of combination meter. Refer to "POWER SUPPLY AND GROUND CIRCUIT INSPECTION ".

    OK or NG

    1. OK: Replace combination meter.
    2. NG: Repair as need.
  5. CHECK ODO/TRIP METER OPERATION

    Check odo/trip meter segment, A/T indicator or ICC system display segment.

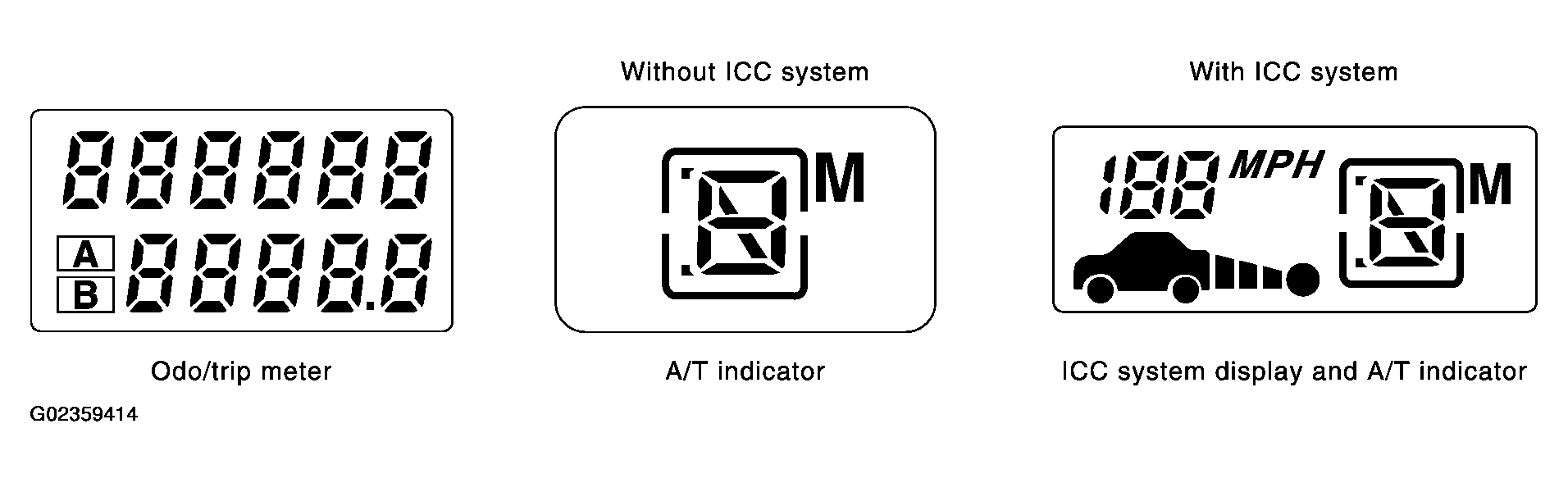

    Fig 1: Odo/Trip Meter Segment, A/T Indicator Or ICC System Display
    G02359414Courtesy of NISSAN MOTOR CO., U.S.A.

    Do all segments illuminate?

    1. YES: GO TO 6.
    2. NO: Replace combination meter.
  6. CHECK LOW-FUEL WARNING LAMP ILLUMINATION CONFIRMATION

    During low-fuel warning lamp check, confirm illumination of low-fuel warning lamp.

    DIAGNOSIS PROCEDURE

    Condition of odo/trip meter switch Low-fuel warning lamp
    Pushed Does not illuminate.
    Released Illuminates.

    OK or NG

    1. OK: GO TO 7.
    2. NG: Replace combination meter.
  7. CHECK COMBINATION METER CIRCUIT

    Check indication of each meter/gauge in self-diagnosis mode.

    OK or NG

    1. OK: Go to "SYMPTOM CHART 1 ".
    2. NG: Replace combination meter.

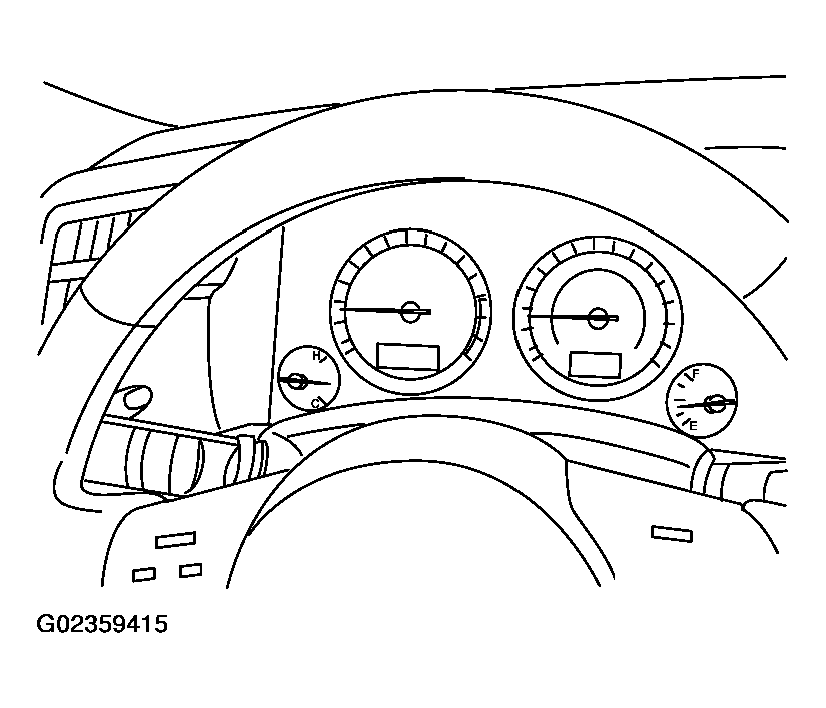

    Fig 2: Identifying Meter/Gauges
    G02359415Courtesy of NISSAN MOTOR CO., U.S.A.
