Data Monitor

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Operation Procedure

Touch "WIPER" on the "SELECT TEST ITEM" screen.
Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.
Touch "START".
When "SELECTION FROM MENU" is selected, touch items to be monitored. When "ALL SIGNALS" is selected, all the items will be monitored. See Fig 1 .
Touch "RECORD" while monitoring, then the status of the monitored item can be recorded. To stop recording, touch "STOP".

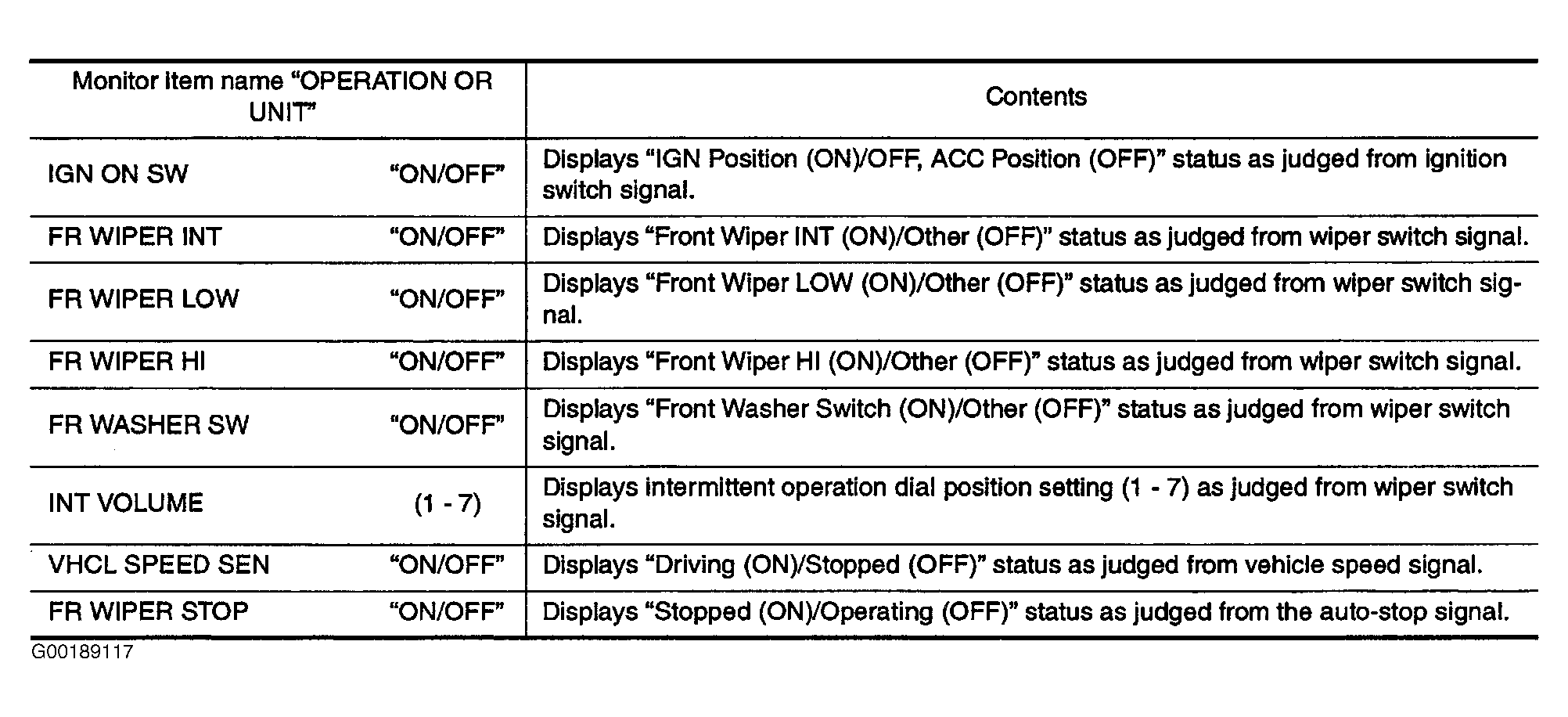

Fig 1: Identifying Data Monitor Display Items

Courtesy of NISSAN MOTOR CO., U.S.A.
