Diagnostic Procedure 2, Check "S" Terminal Circuit

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For step 1, see Fig 1.

NOTE: For Work Flow, see WORK FLOW .

For step 2, see Fig 2.

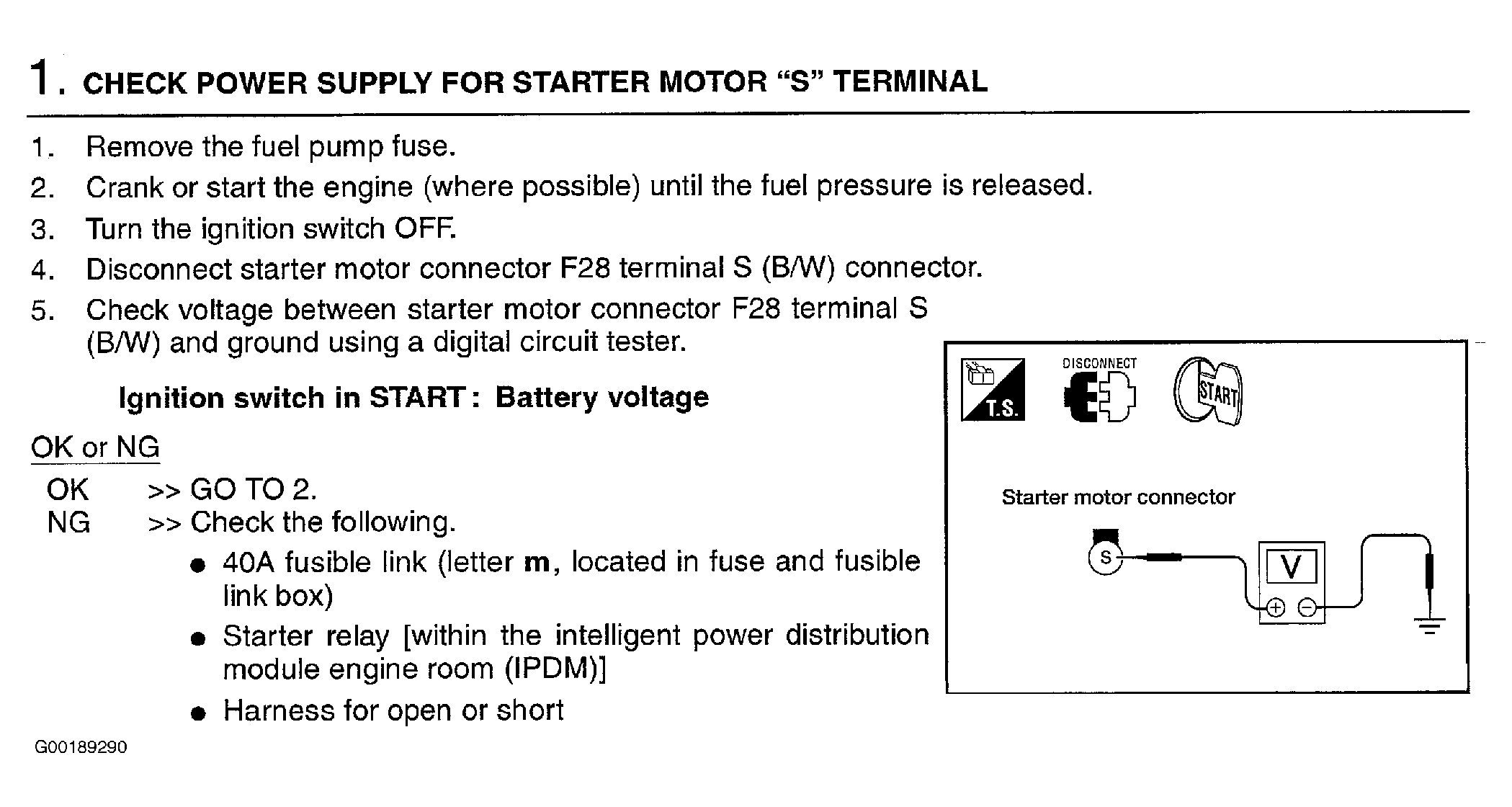

Fig 1: Identifying Diagnostic Procedure 2, Check "S" Terminal Circuit, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

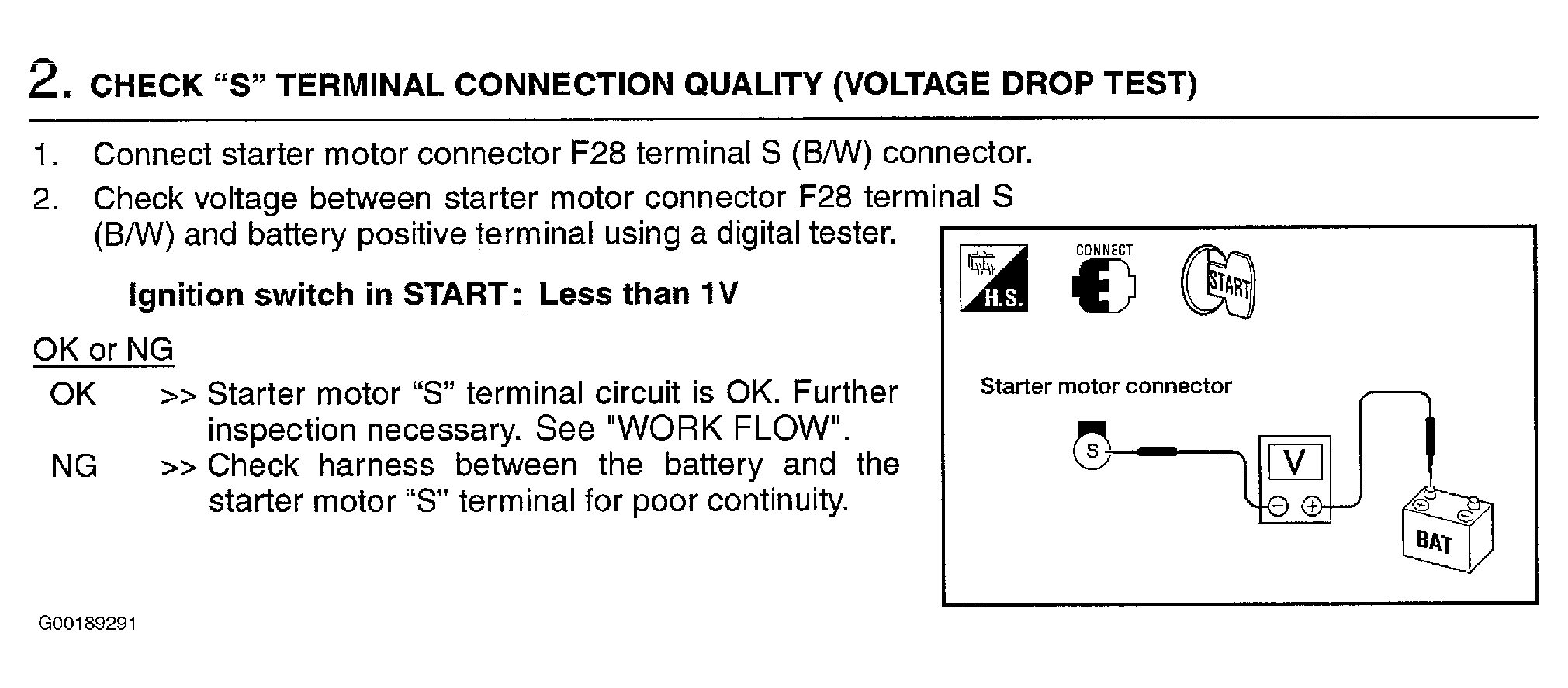

Fig 2: Identifying Diagnostic Procedure 2, Check "S" Terminal Circuit, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
