Diagnostic Procedure 1, Check "B" Terminal Circuit

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For step 1, see Fig 1.
For step 2, see Fig 2.

NOTE: For work flow, see WORK FLOW .

For step 3, see Fig 3.

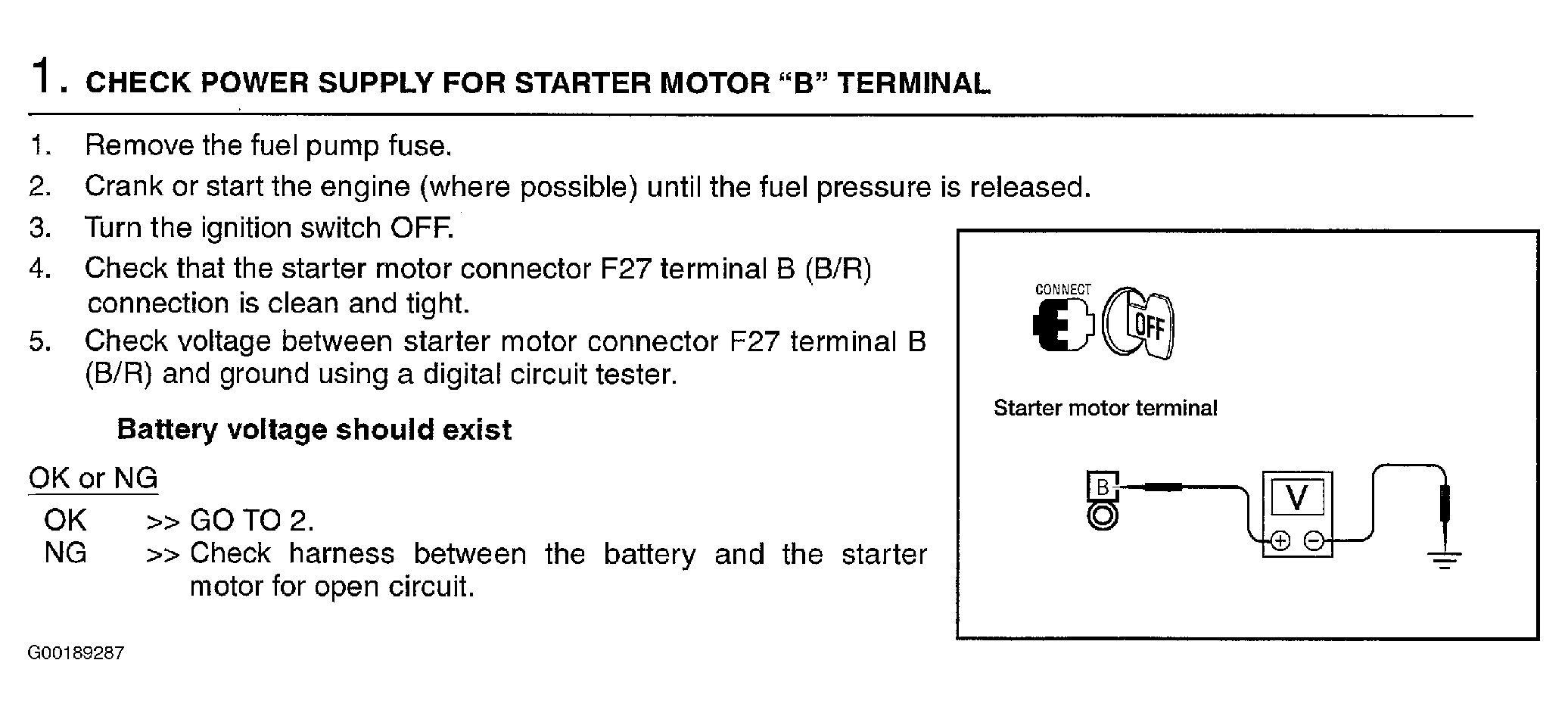

Fig 1: Identifying Diagnostic Procedure 1, Check "B" Terminal Circuit, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

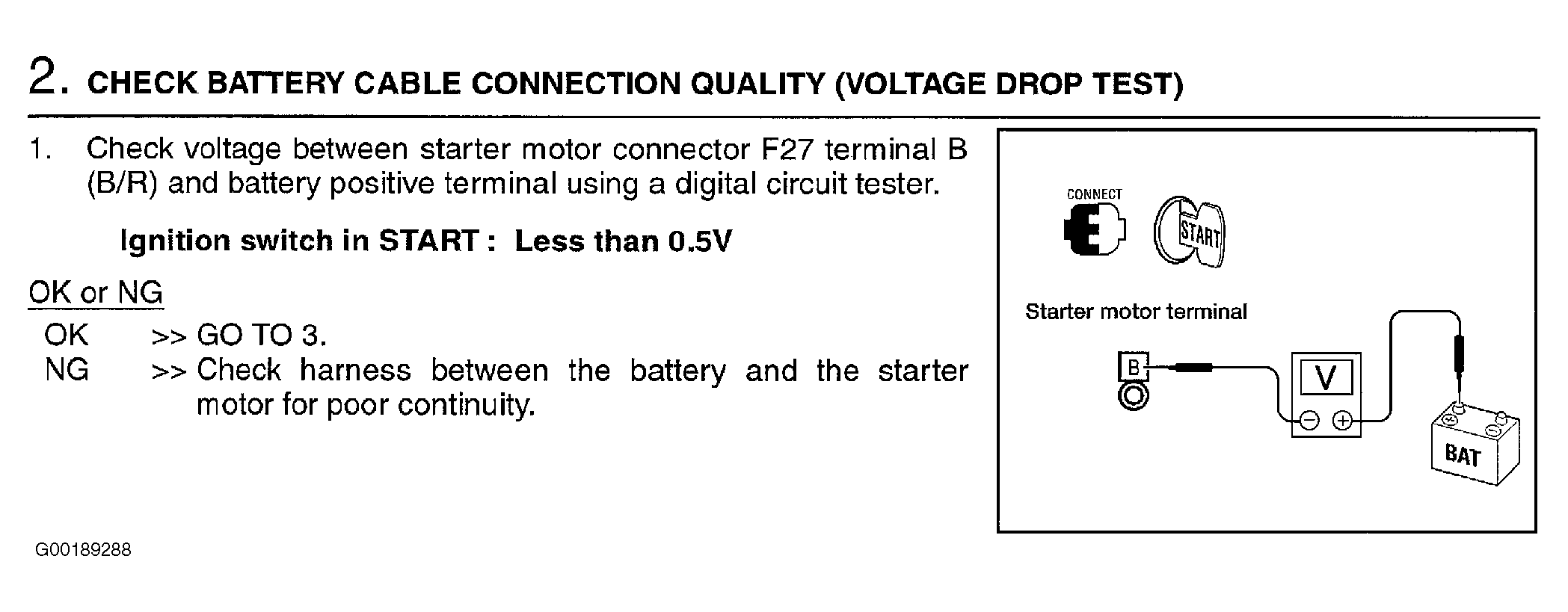

Fig 2: Identifying Diagnostic Procedure 1, Check "B" Terminal Circuit, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

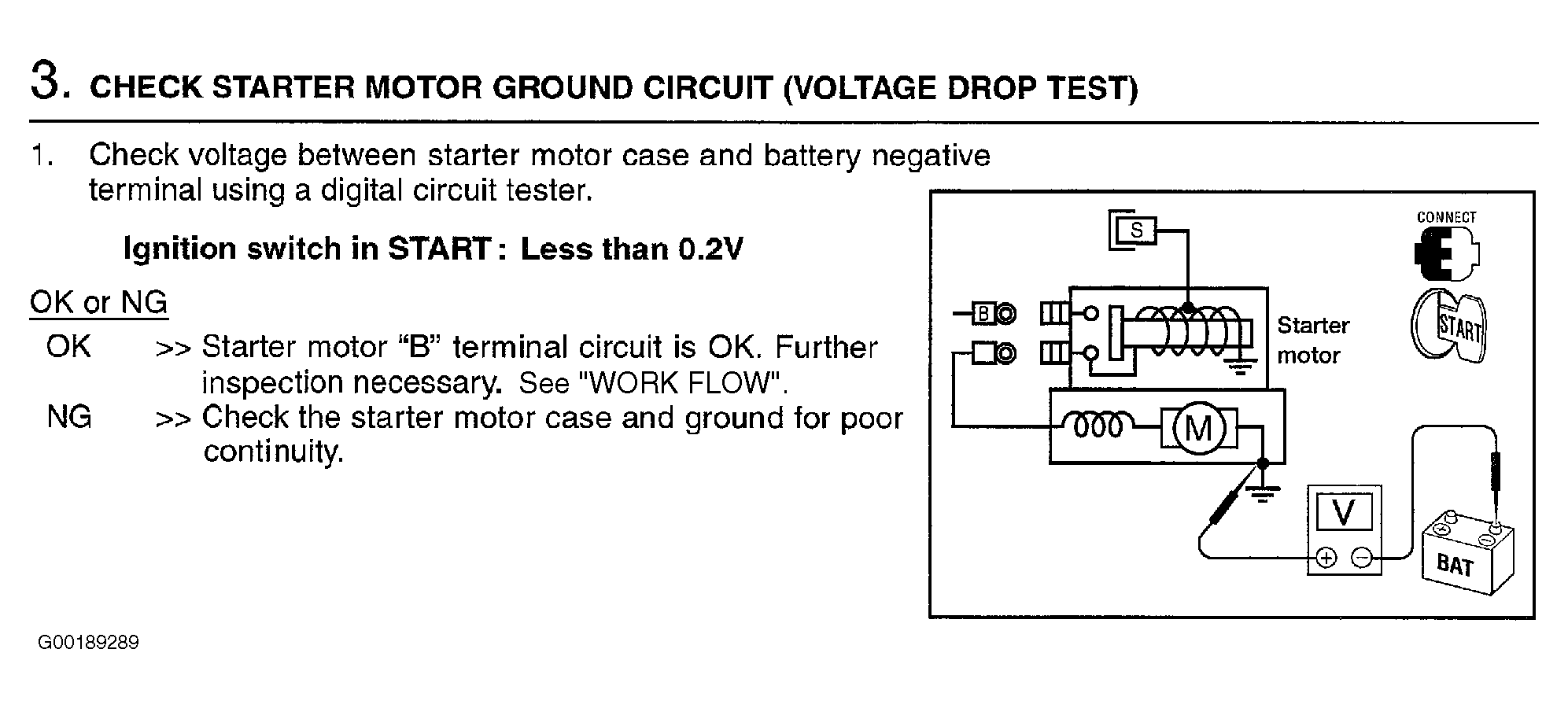

Fig 3: Identifying Diagnostic Procedure 1, Check "B" Terminal Circuit, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
