Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Be sure to read "General Precautions" when working on fuel system. Refer to
, "GENERAL PRECAUTIONS ".
- Drain fuel from the fuel tank if necessary. Refer to step 1) of "REMOVAL" in FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY .CAUTION: For the safety work and to maintain fuel tank gravity at center, drain fuel to the level where fuel tank weight at left and right becomes equal.
- Perform work on level place.
- Release fuel pressure from fuel line. Refer to "FUEL PRESSURE RELEASE " .
- Open the fuel filler lid.
- Open the fuel filler cap and release the pressure inside the fuel tank.
- Remove the rear seat cushion trim and pad bolts, then lift up rear seat cushion. Refer to "REAR SEAT " .

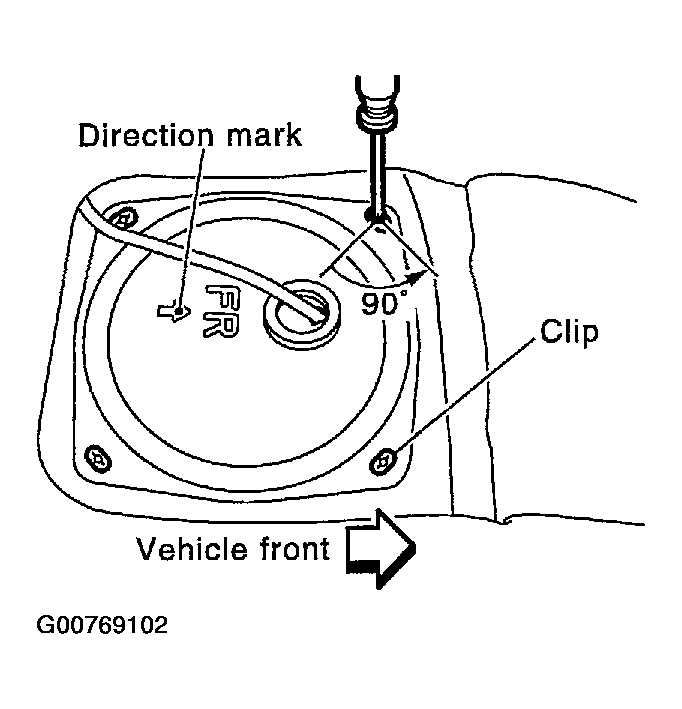

- Remove the inspection hole cover for main fuel level sensor unit, fuel filter and fuel pump assembly (Left side) by turning clips counterclockwise by 90 degrees.

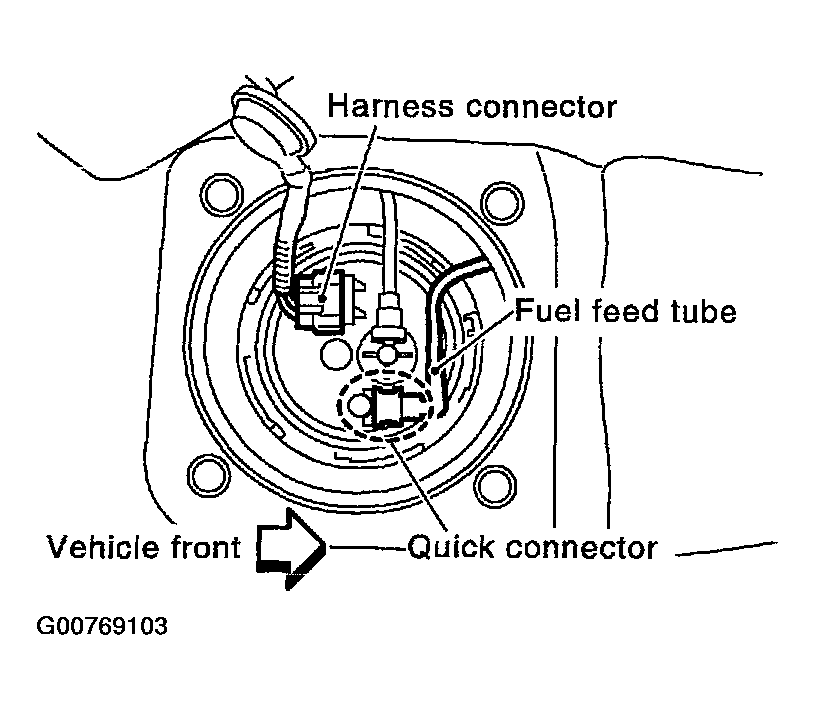

- Disconnect harness connector and quick connector for fuel feed tube.
- Disconnect the quick connector, refer to , "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY ".
- Remove the center muffler. Refer to "EXHAUST SYSTEM " .
- Remove the rear propeller shaft (AWD model). Refer to "REAR PROPELLER SHAFT " .
- Remove the parking brake cables. Refer to "PARKING BRAKE SYSTEM " .
- Remove the rear final drive assembly (AWD model).
- Using a transmission jack, support the bottom of the rear final drive assembly. Refer to "REAR FINAL DRIVE " .
- Remove the mounting nuts on the rear suspension member, and lower the transmission jack carefully until just before the rear suspension member is removed from the stud bolts on the vehicle (AWD model).
Refer to REAR .
- Remove the fuel tank protector.

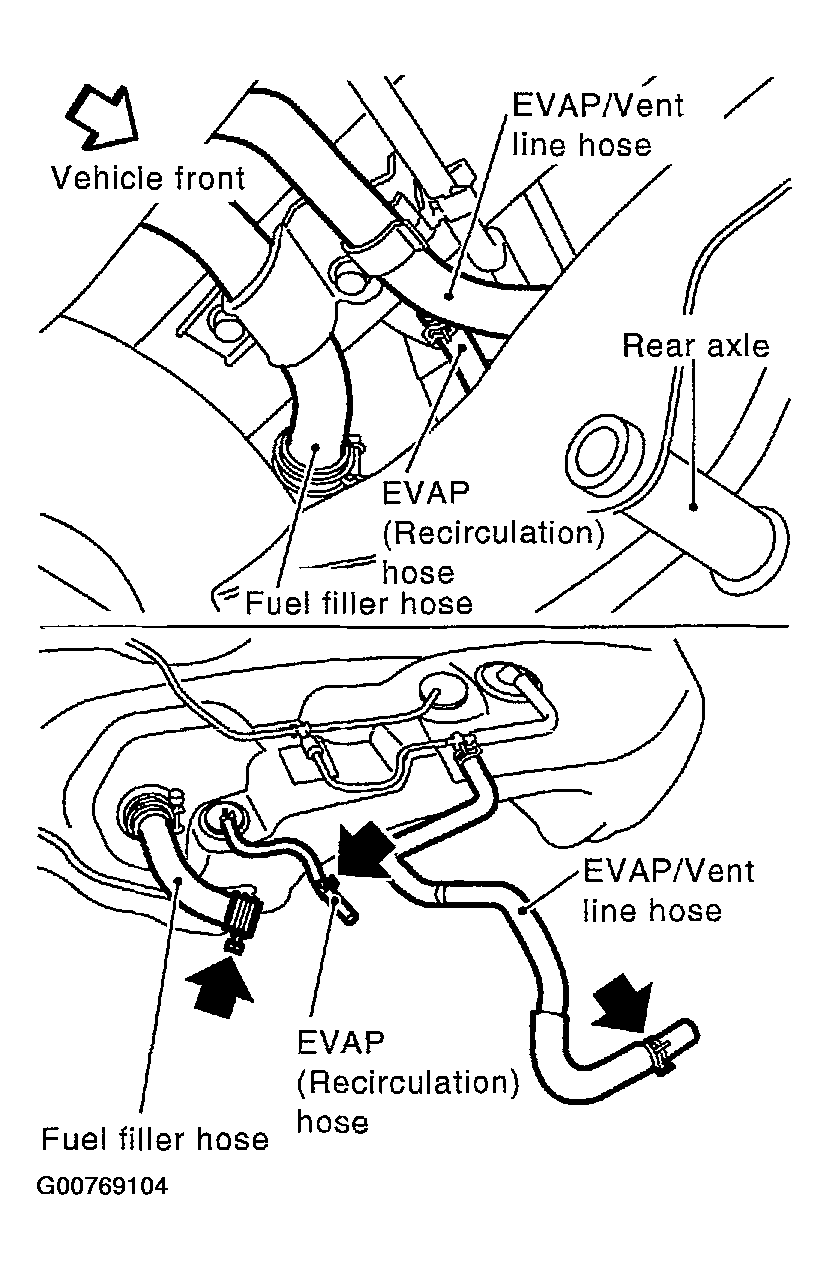

- Disconnect fuel filler hose, EVAP/Vent line hose and EVAP (Recirculation) hose at the other end than fuel tank side.

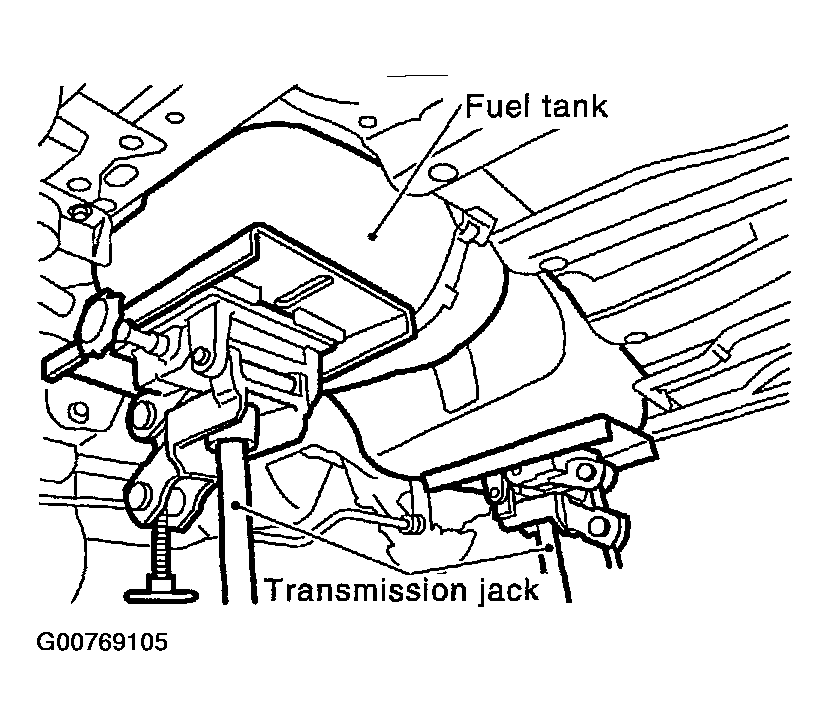

- Remove fuel tank mounting band bolts while supporting fuel tank.
- Remove fuel tank.
