Terminal and Reference Value for Power Window and Door Lock/Unlock Switch RH/King Cab
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

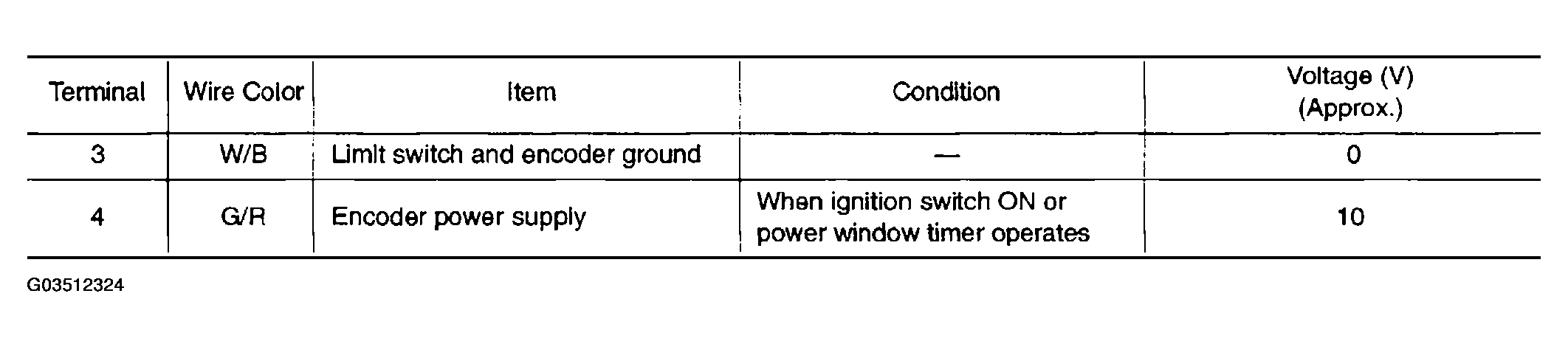

Fig 1: Power Window And Door Lock/Unlock Switch RH/King Cab Terminal And Reference Value Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

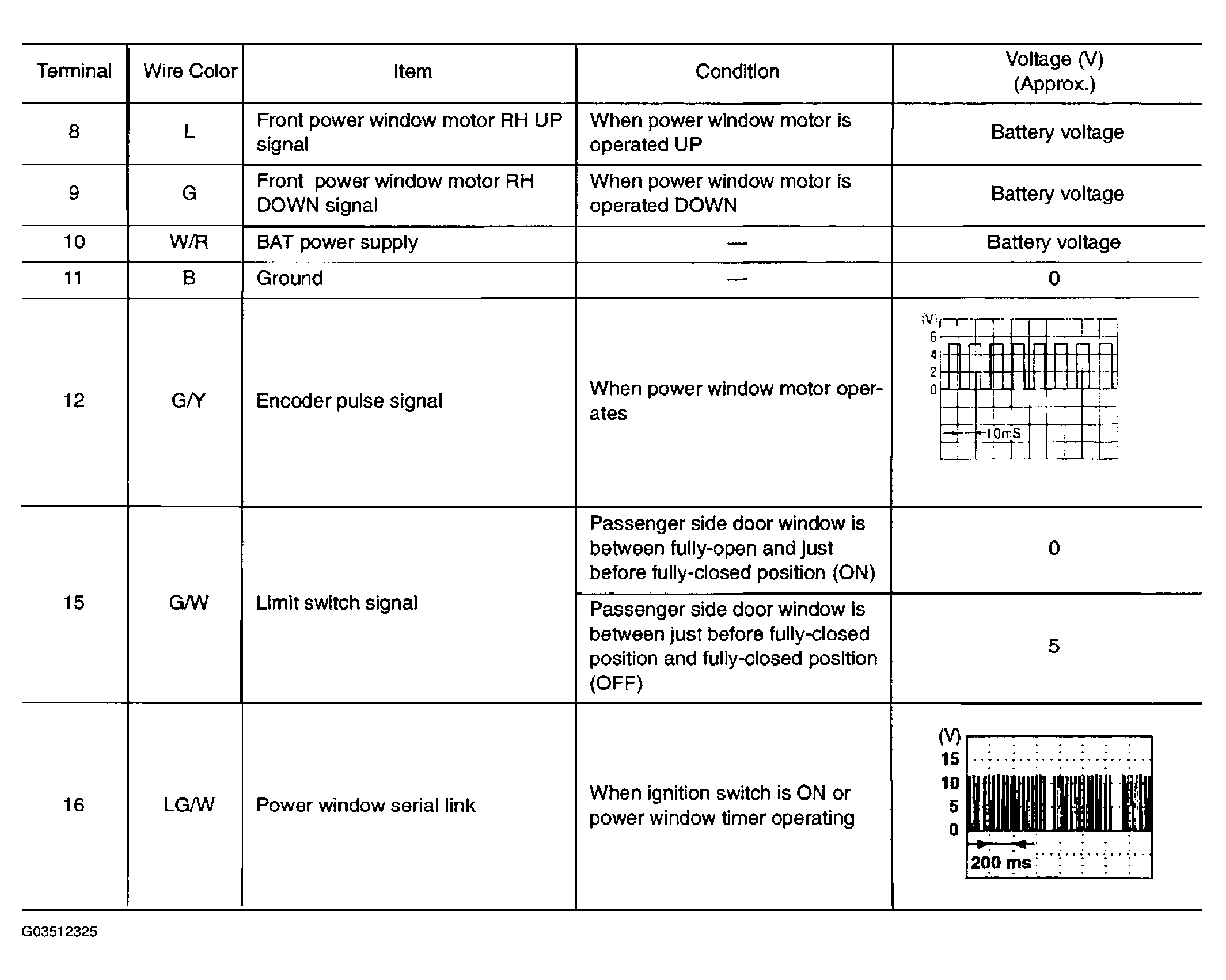

Fig 2: Power Window And Door Lock/Unlock Switch RH/King Cab Terminal And Reference Value Chart (2 Of 2)
