Section 1278 (Brake Controls System - VDC/TCS/Abs)
>>
Trouble Diagnosis
>>
CONSULT-II Function
>>
Display Item List
Display Item List
WARNING:
This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

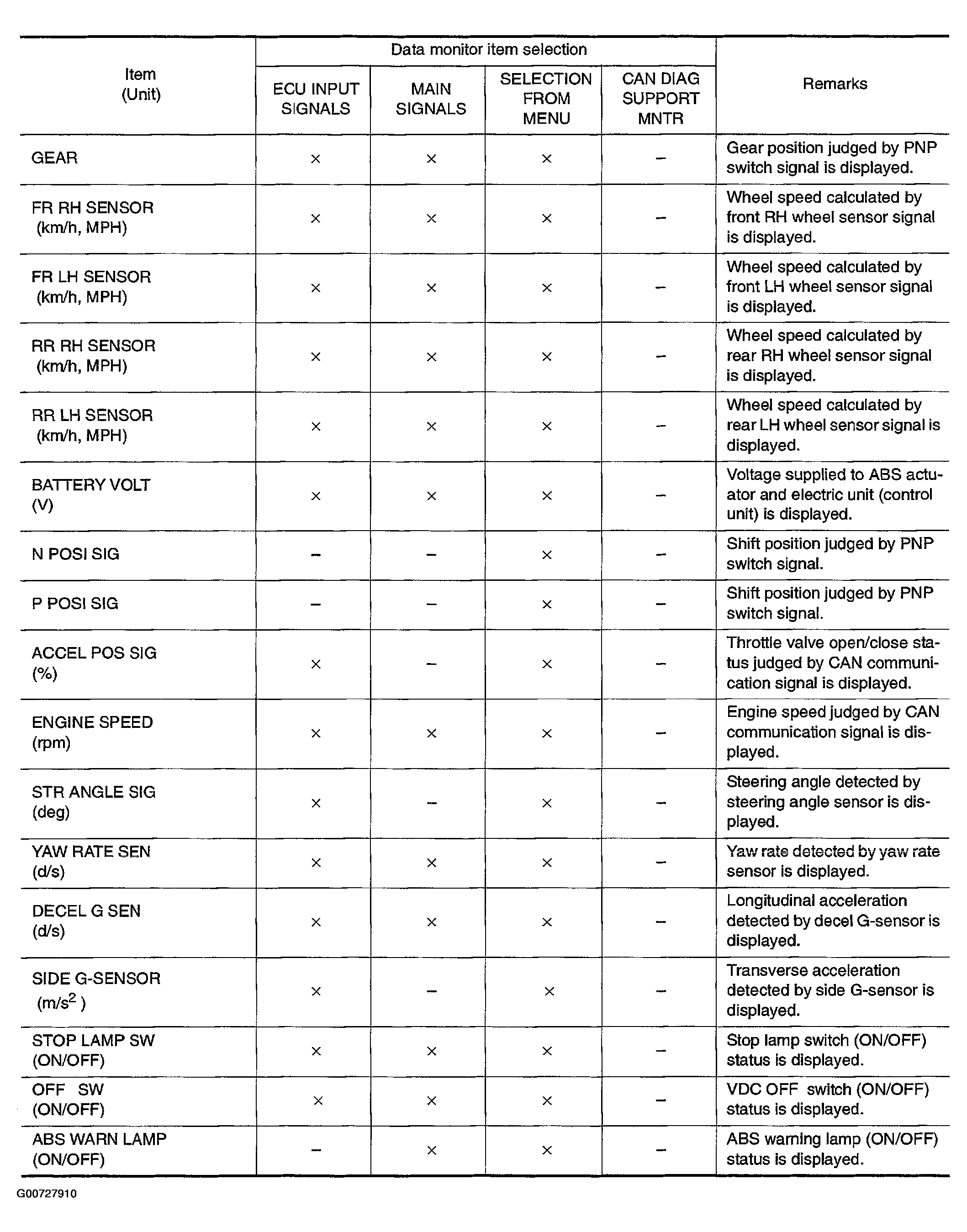

Fig 1: Display Item List (4 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

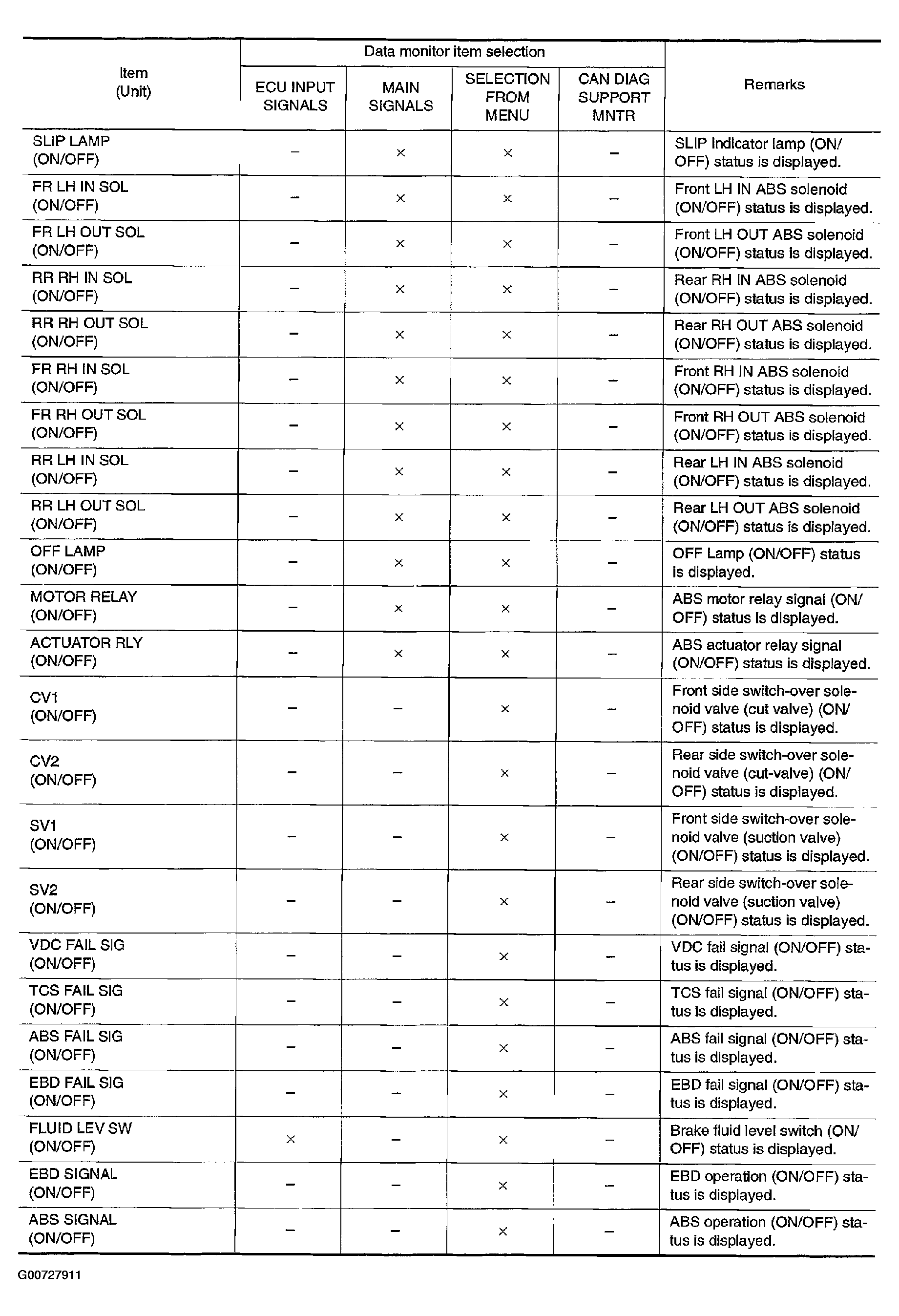

Fig 2: Display Item List (5 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.

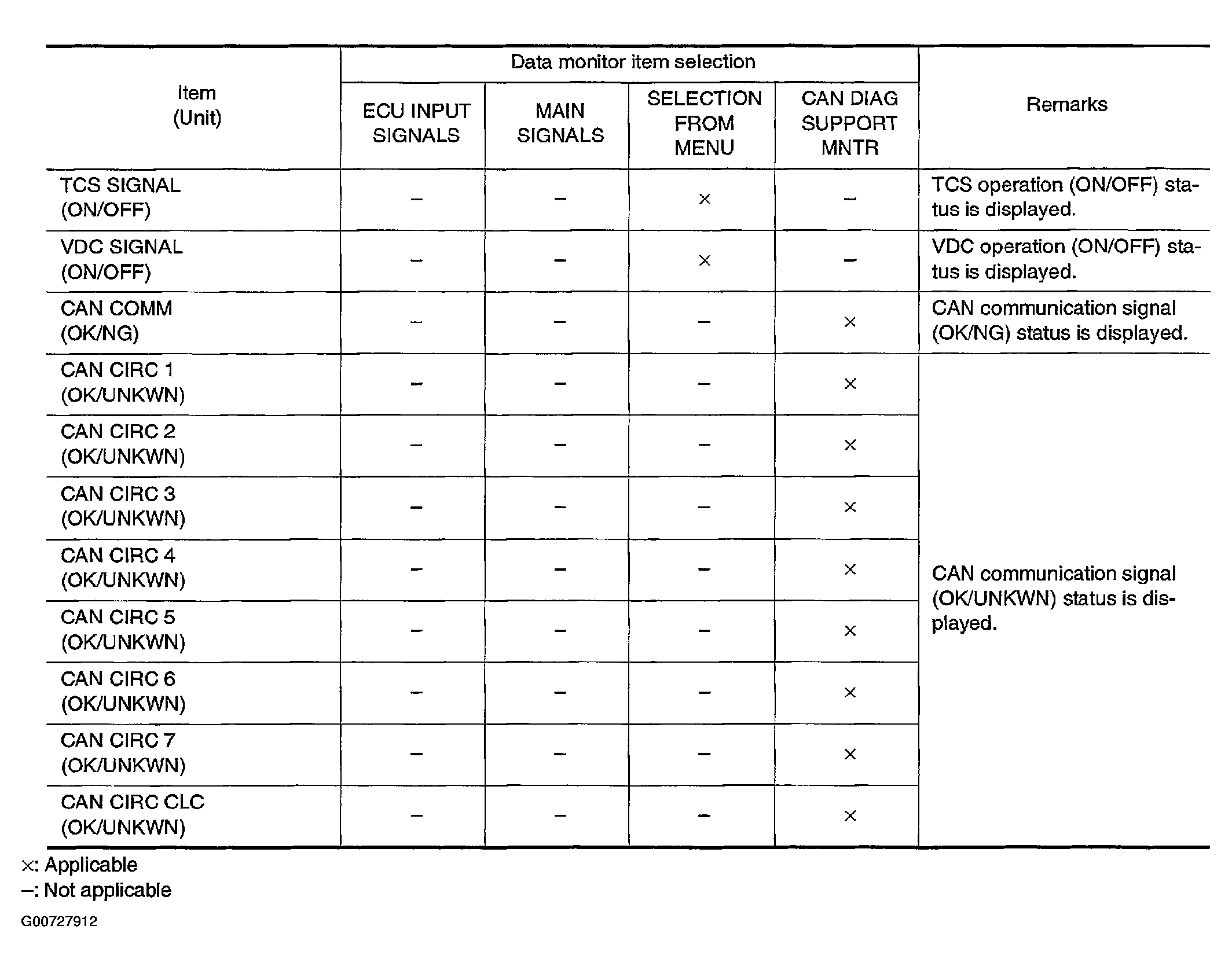

Fig 3: Display Item List (6 Of 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
