Solenoid Valve Operation Chart

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

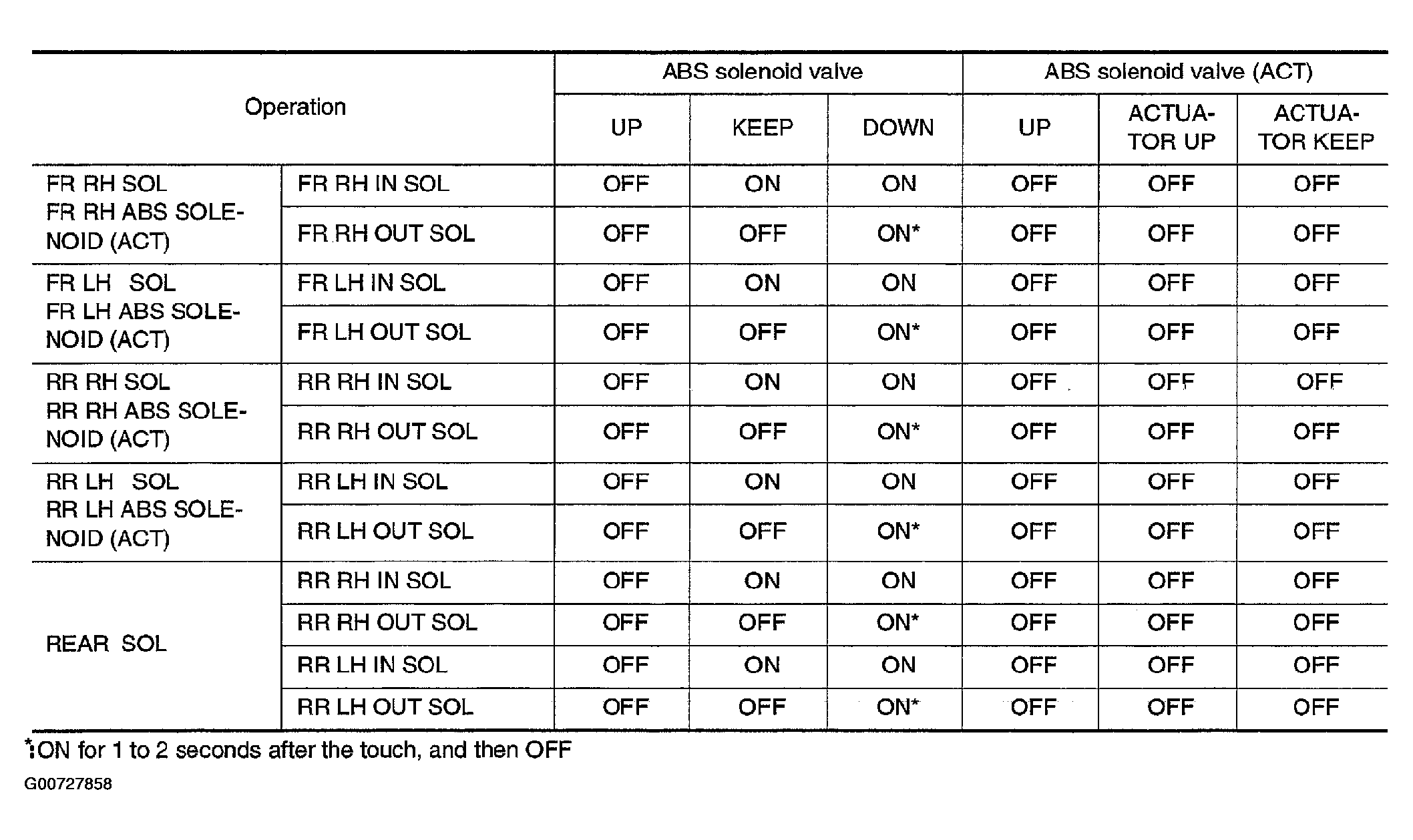

Fig 1: Solenoid Valve Operation Chart
G00727858Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
  • "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
  • After "TEST IS STOPPED" is displayed, to perform test again, repeat Step 6  .
