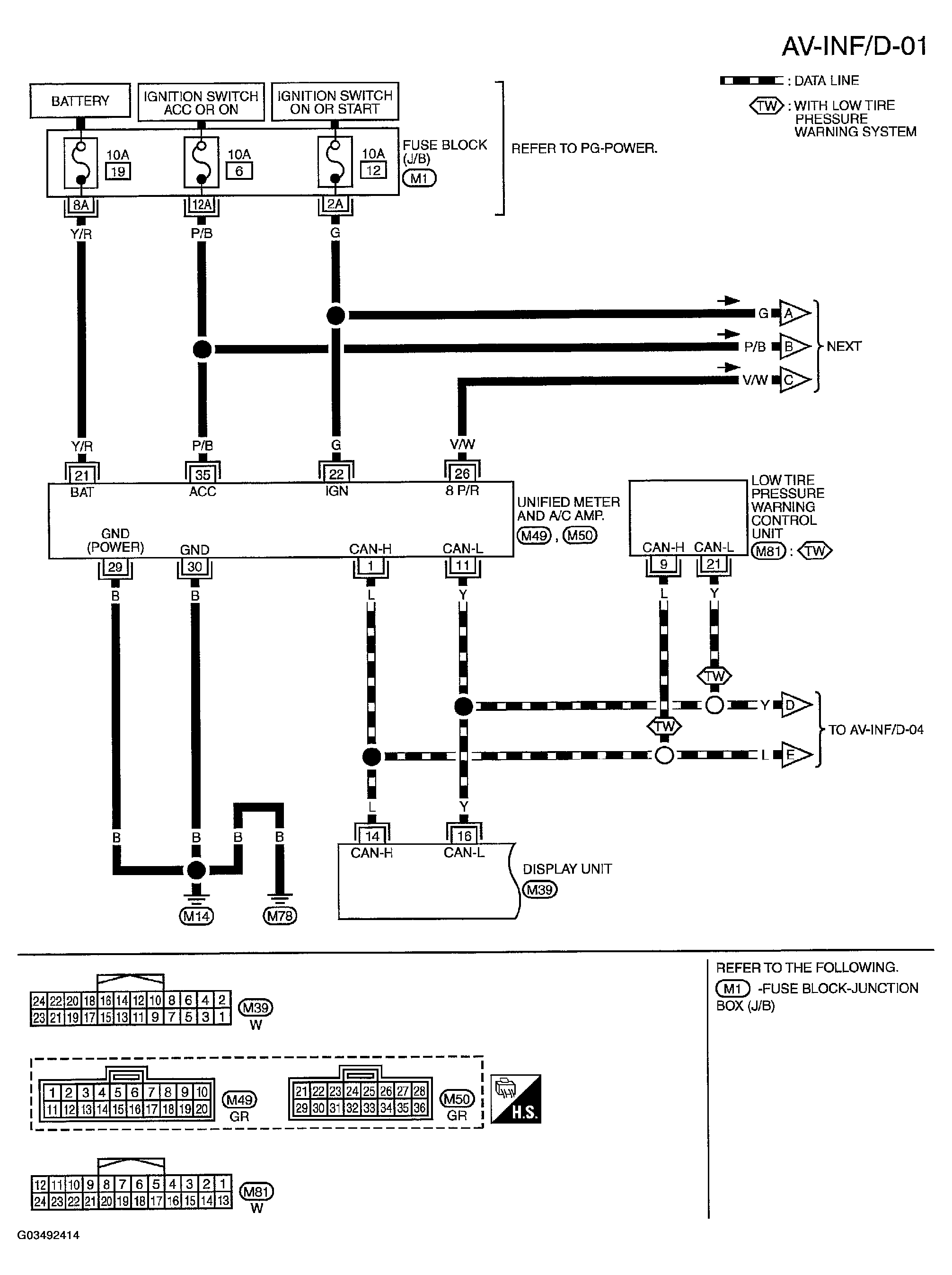

Fig 1: Integrated Display System Wiring Diagram - AV-INF/D-01
Courtesy of NISSAN MOTOR CO., U.S.A.

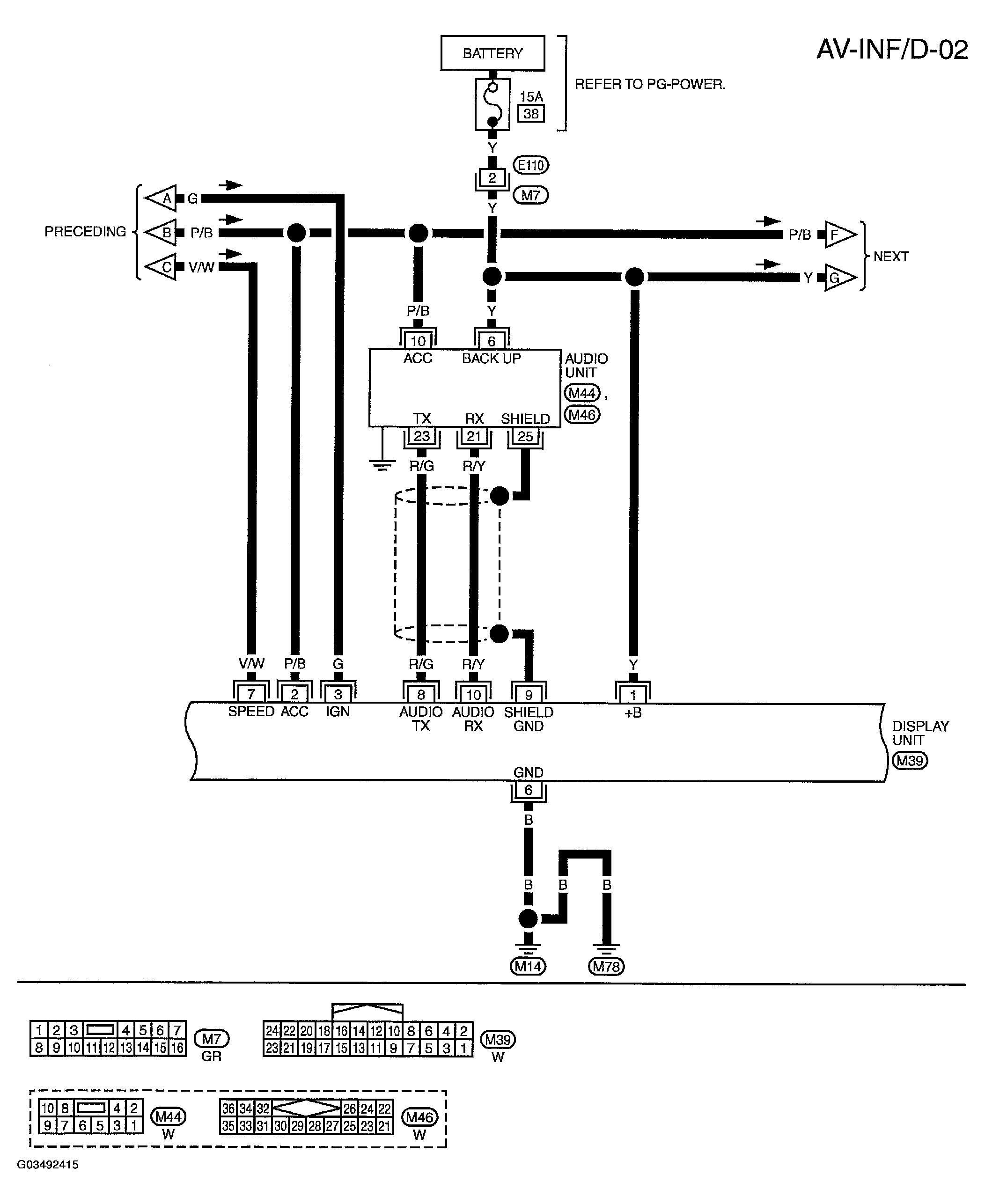

Fig 2: Integrated Display System Wiring Diagram - AV-INF/D-02
Courtesy of NISSAN MOTOR CO., U.S.A.

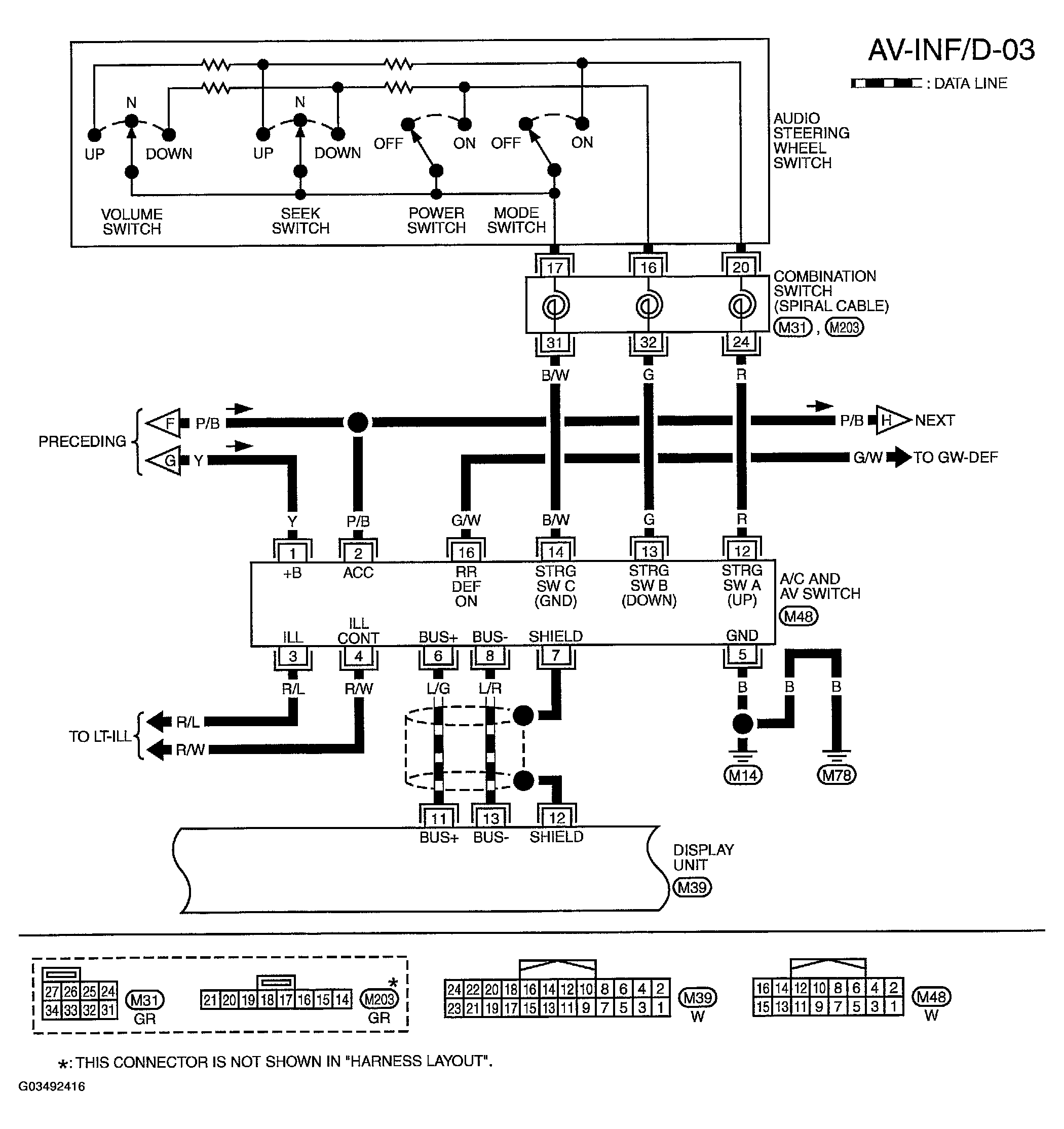

Fig 3: Integrated Display System Wiring Diagram - AV-INF/D-03
Courtesy of NISSAN MOTOR CO., U.S.A.

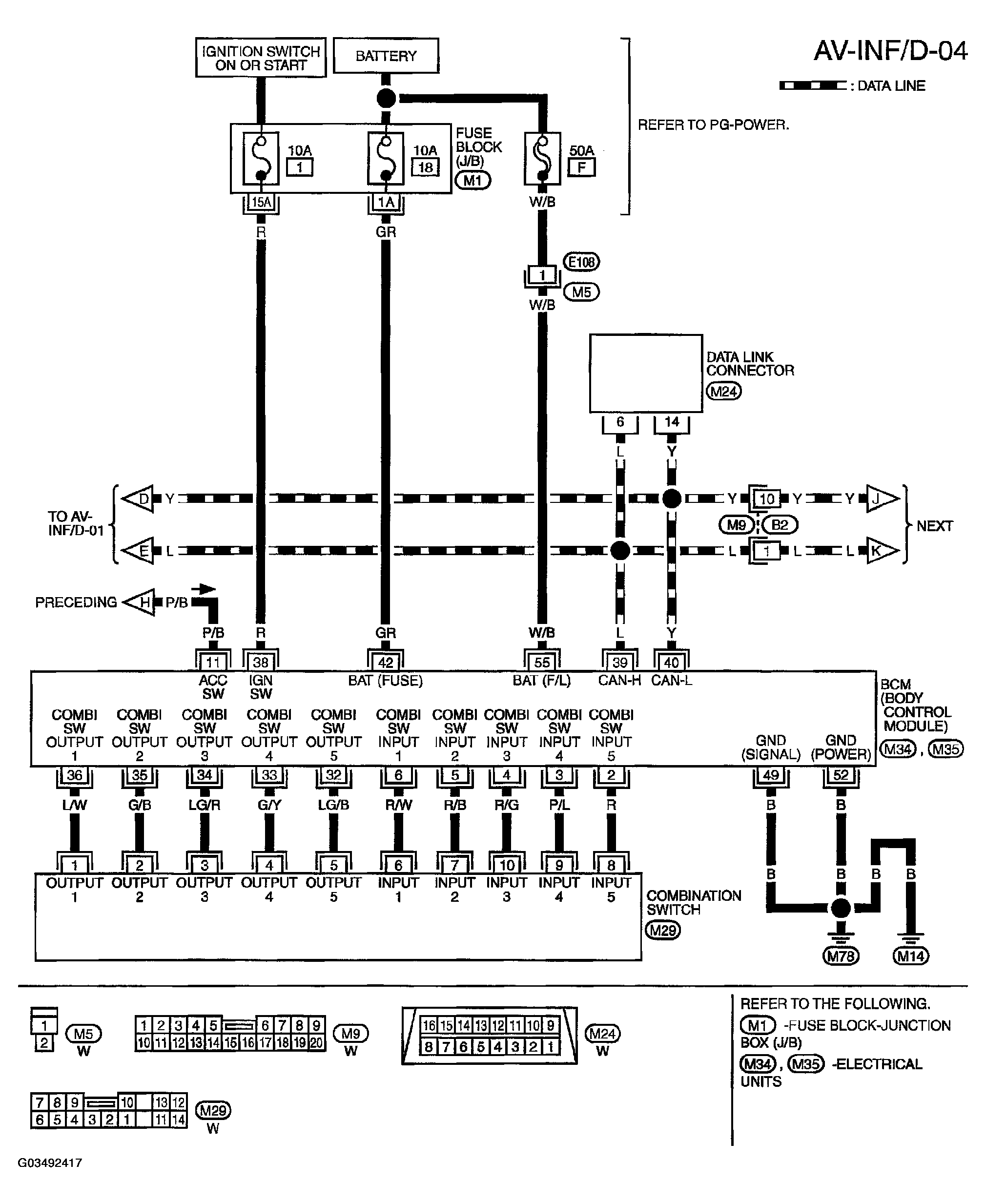

Fig 4: Integrated Display System Wiring Diagram - AV-INF/D-04
Courtesy of NISSAN MOTOR CO., U.S.A.

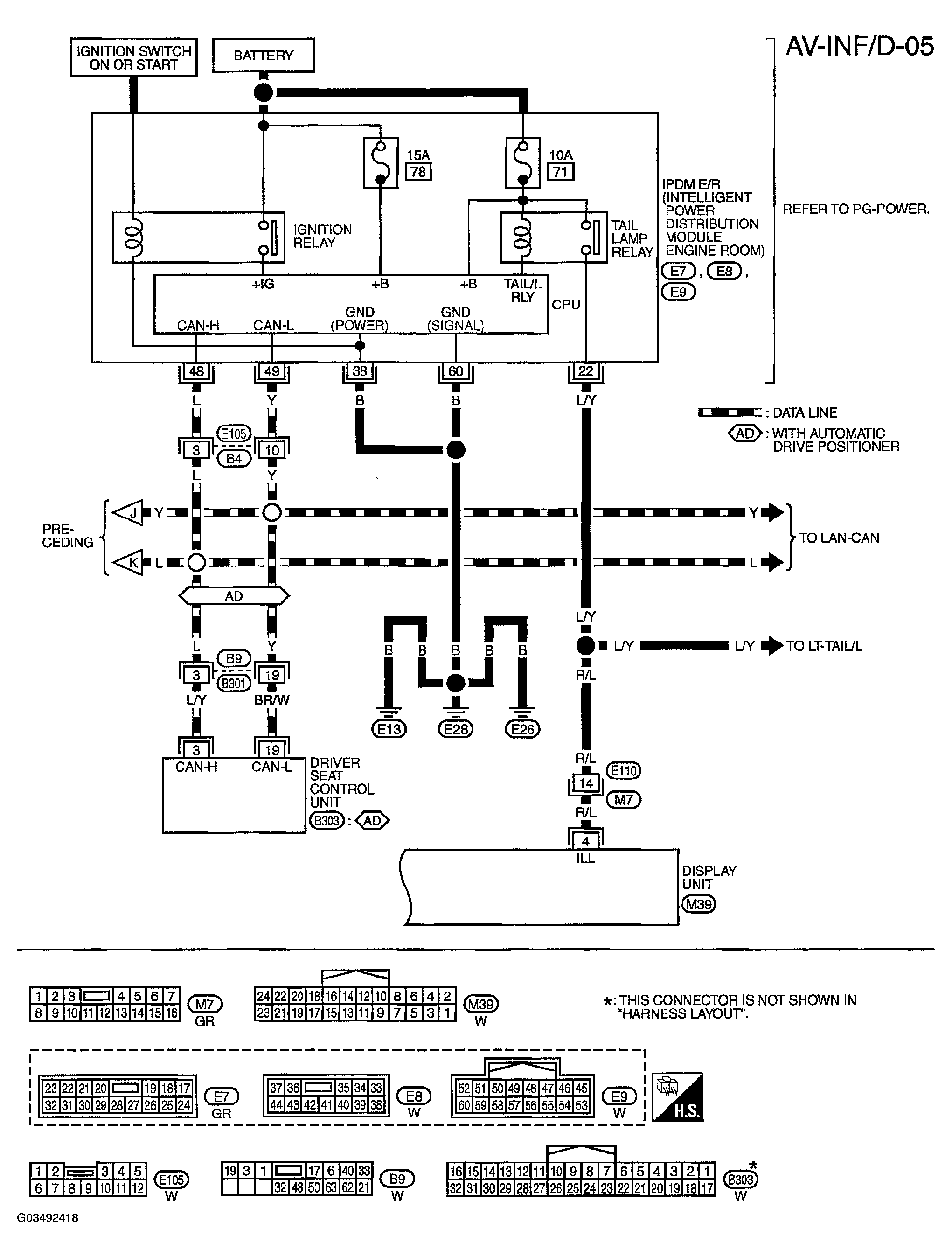

Fig 5: Integrated Display System Wiring Diagram - AV-INF/D-05
