Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, then turn ignition switch ON.

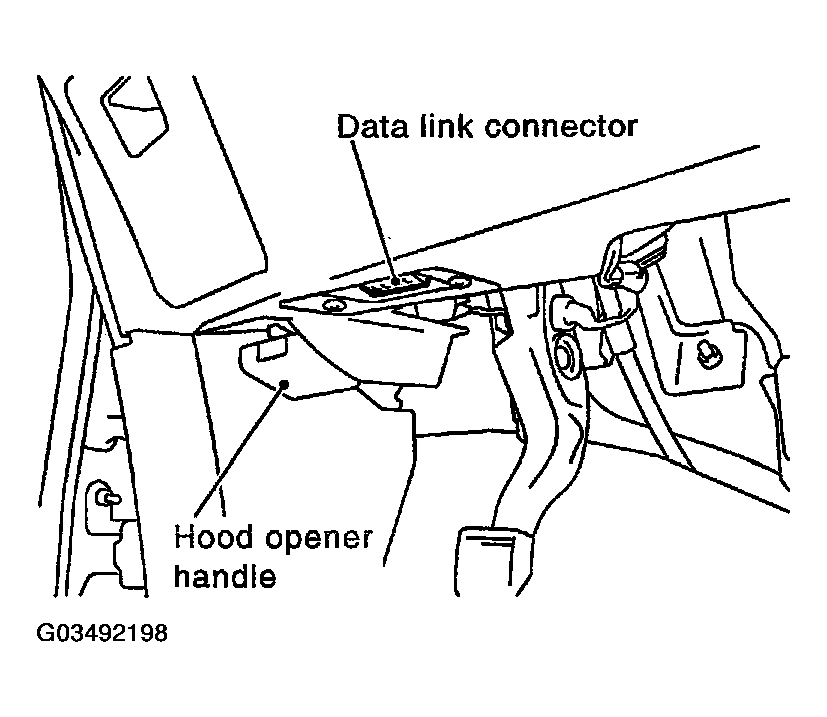

    Fig 1: Identifying Data Link Connector
    G03492198Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

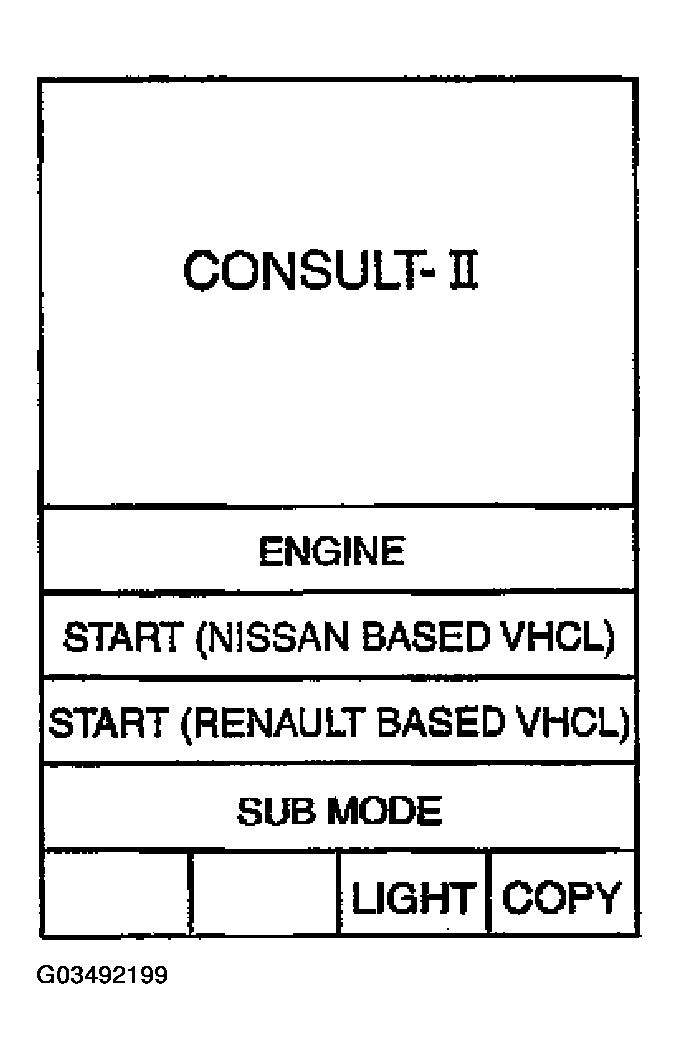

    Fig 2: Displaying Consult-II
    G03492199Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "METER A/C AMP" on "SELECT SYSTEM" screen. If "METER A/C AMP" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
  4. Select "SELF-DIAG RESULTS" or "DATA MONITOR".
    Fig 3: Displaying SELECT SYSTEM
    G03492200Courtesy of NISSAN MOTOR CO., U.S.A.
