Overall Function Check

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this check, a 1st trip DTC might not be confirmed.
NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE .

For overall function check, see Fig 1.

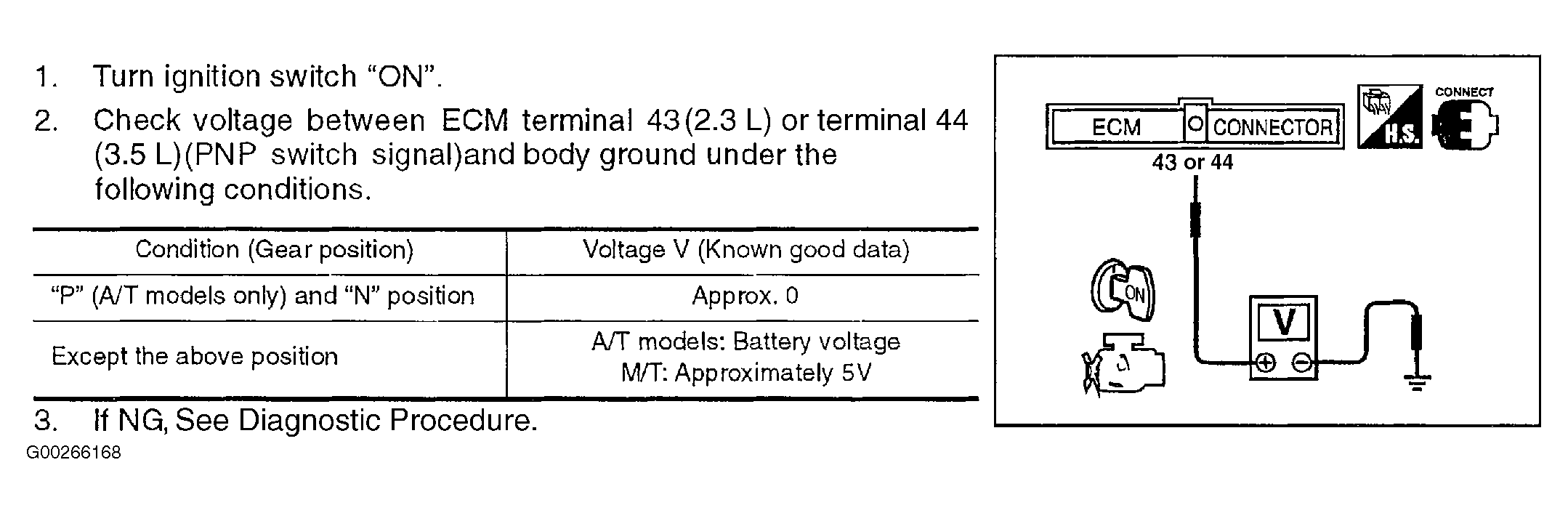

Fig 1: Identifying Overall Function Check For DTC P1706: Park/Neutral Position Switch
G00266168Courtesy of NISSAN MOTOR CO., U.S.A.
