TCM Inspection Table

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Data are reference values and are measured between each terminal and ground.

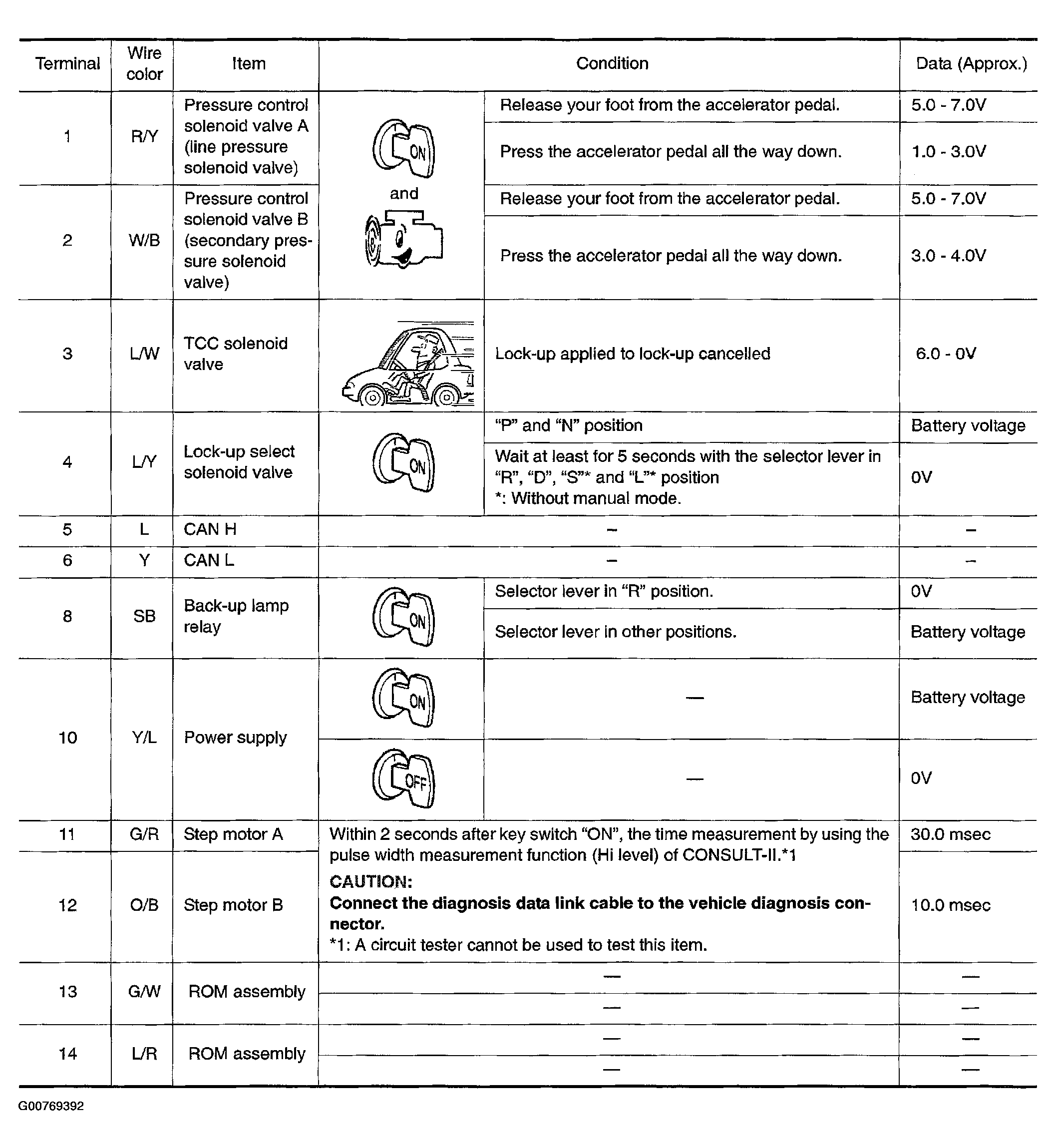

Fig 1: TCM Inspection Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

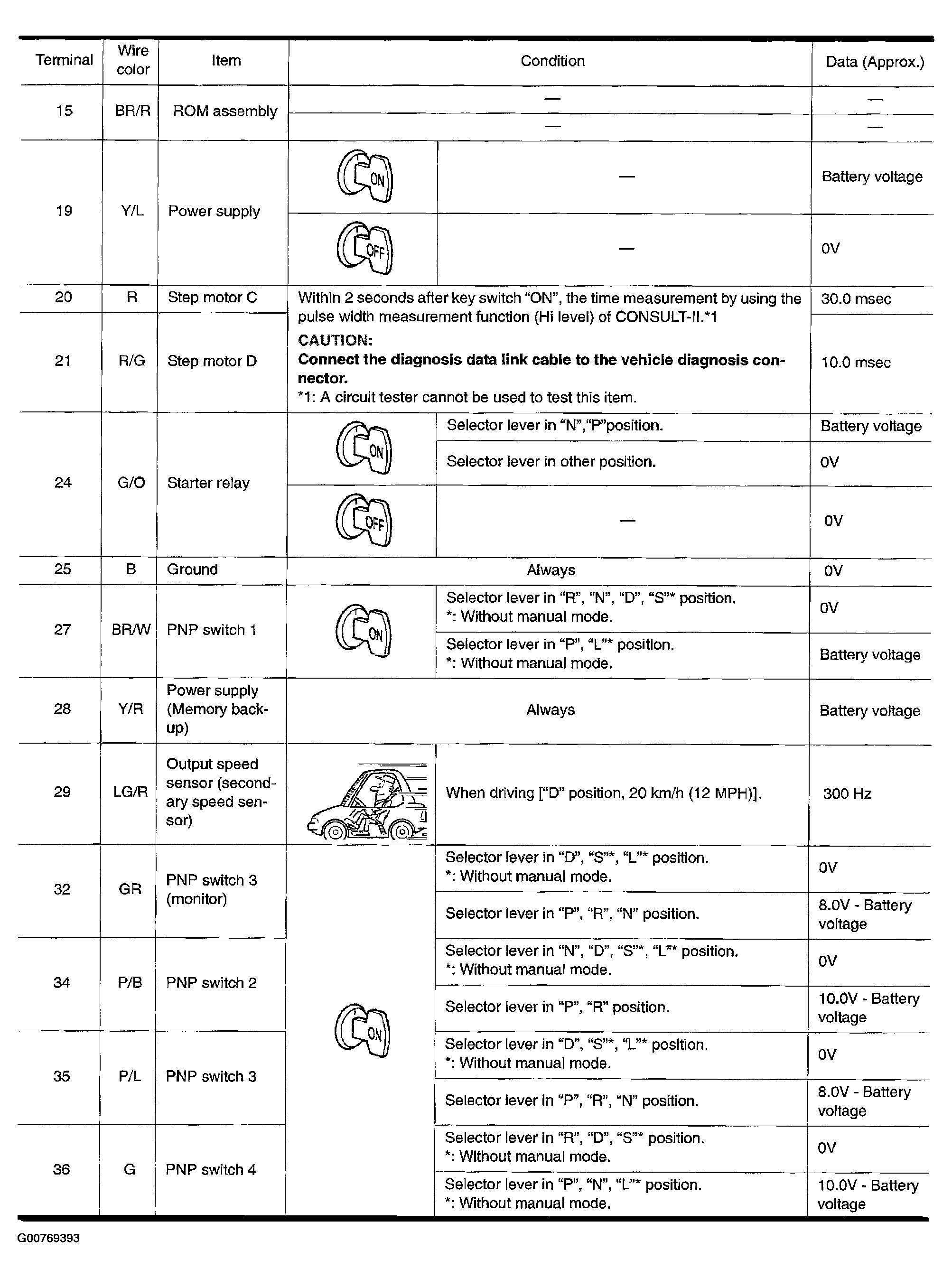

Fig 2: TCM Inspection Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

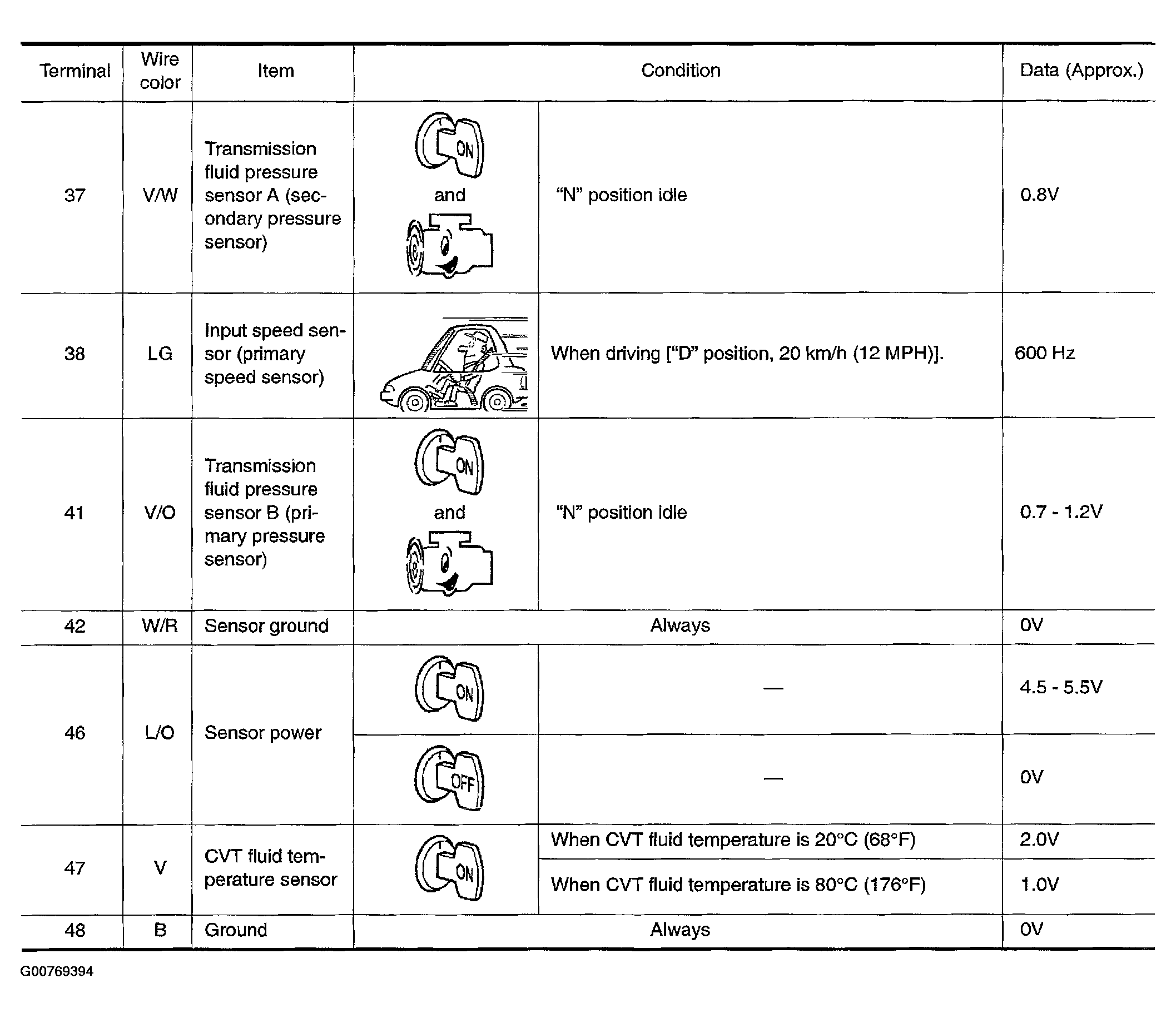

Fig 3: TCM Inspection Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
