Back Door Warning Chime System Inspection

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. BACK DOOR WARNING CHIME CIRCUIT INSPECTION
    1. Disconnect back door warning chime and back door control unit.
    2. Check voltage between back door warning chime connector D514 terminal 1 and back door control unit connector B55 terminal 6.

      1 (P/L) - 6 (P/L): Continuity should exist.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair the harness between the warning chime and the back door control unit.

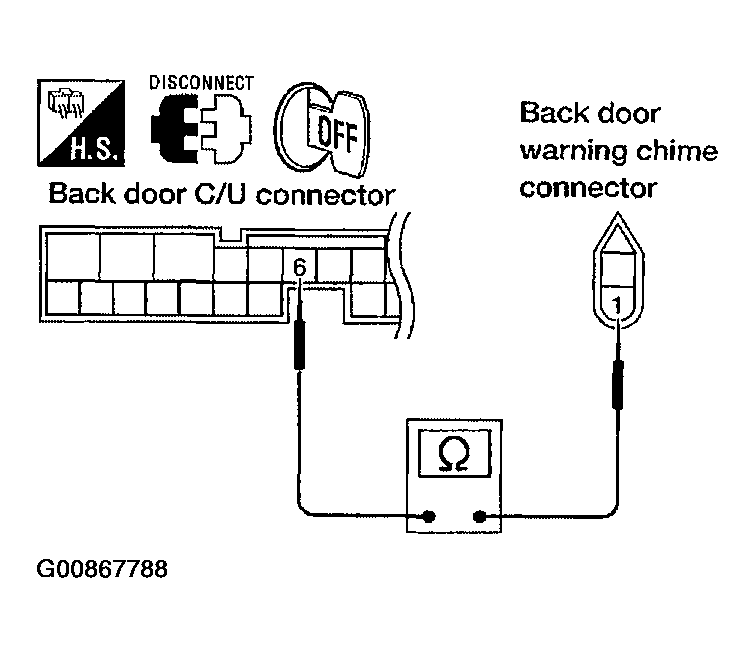

    Fig 1: Checking Voltage Between Back Door Warning Chime & Back Door Control Unit Connector Terminal
    G00867788Courtesy of NISSAN MOTOR CO., U.S.A.
  2. WARNING CHIME CIRCUIT INSPECTION

    Check voltage between warning chime connector D514 terminal 2 and ground.

    2 (G/R) - Ground: Continuity should exist.

    OK or NG

    1. OK: Replace warning chime.
    2. NG: Repair the harness between the warning chime and ground.

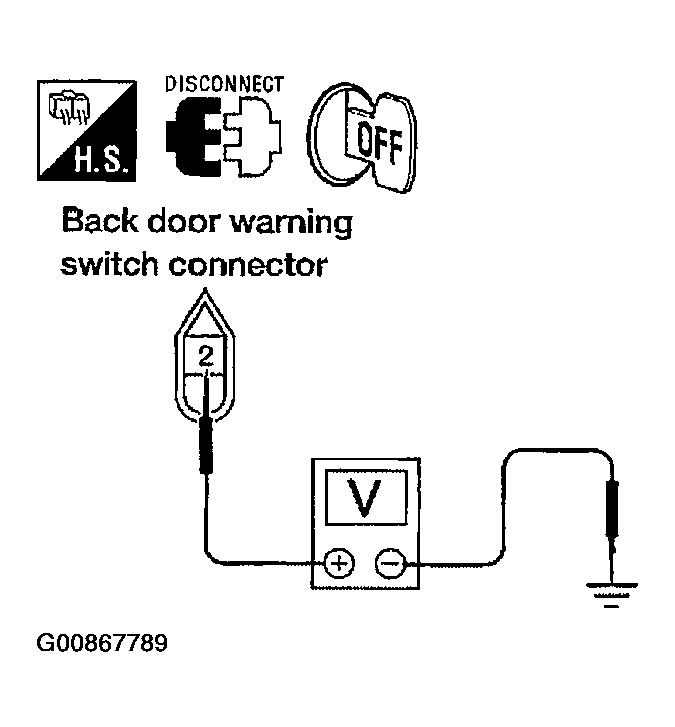

    Fig 2: Checking Voltage Between Warning Chime Connector D514 Terminal 2 & Ground
    G00867789Courtesy of NISSAN MOTOR CO., U.S.A.
