Door Switch Check (With Automatic Back Door System)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECKDOO R SWITCHES INPUT SIGNAL

    With CONSULT-II

    Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR") in DATA MONITOR mode with CONSULT-II. Refer to , "DATA MONITOR  ".

    • When any doors are open:

      DOOR SW-DR: ON

      DOOR SW-AS: ON

      DOOR SW-RL: ON

      DOOR SW-RR: ON

      BACK DOOR SW: ON

    • When any doors are closed:

      DOOR SW-DR: OFF

      DOOR SW-AS: OFF

      DOOR SW-RL: OFF

      DOOR SW-RR: OFF

      BACK DOOR SW: OFF

    Fig 1: Data Monitor Display
    G00866979Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM connector M18 or M20 terminals 12, 13, 58, 62, 63 and ground.

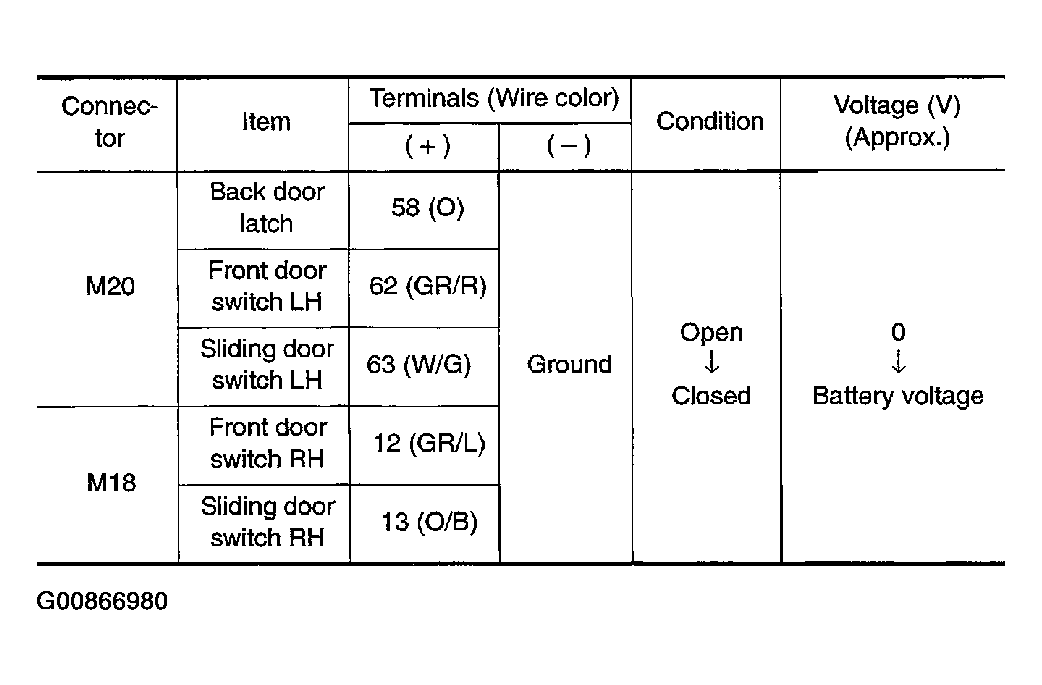

    Fig 2: Connector Terminals Voltage Table
    G00866980Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 3: Checking Voltage Between BCM Connector M18 Or M20 Terminals & Ground
    G00866981Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: System is OK.
    2. NG: GO TO 2
  2. CHECKDOO R SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect door switch and BCM.
    3. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B46 (Sliding LH), B135 (Sliding RH) terminal 1 or back door latch actuator D511 terminal 7 and BCM connector M18, M20 terminals 12, 13, 58, 62 and 63

      1 (GR/R) - 62 (GR/R): Continuity should exist

      1 (GR/L) - 12 (GR/L): Continuity should exist

      1 (W/G) - 63 (W/G): Continuity should exist

      1 (R/W) - 13 (O/B): Continuity should exist

      7 (O) - 58 (O): Continuity should exist

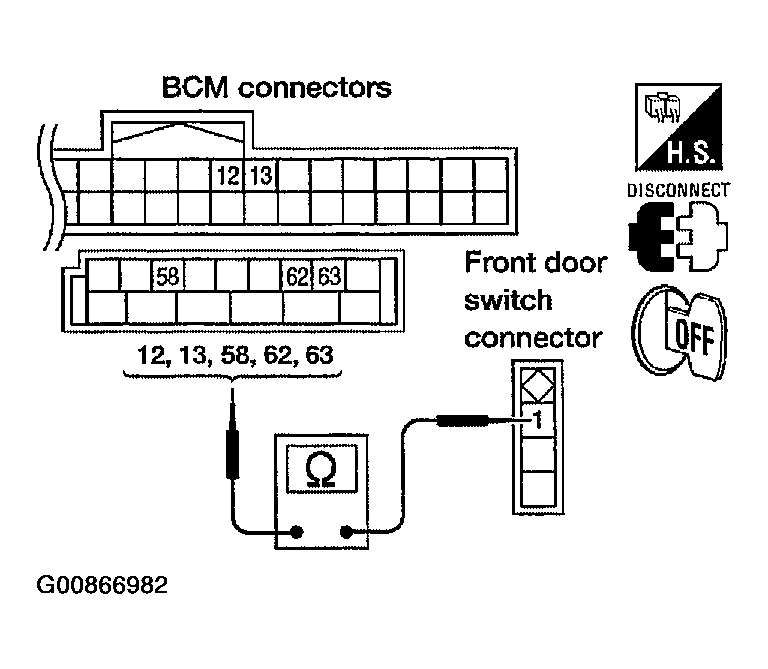

      Fig 4: Checking Continuity Between Door Switch Connector & BCM Connector M18, M20 Terminals
      G00866982Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between door switch connector B8 (Front LH), B108 (Front RH), B46 (Sliding LH), B135 (Sliding RH) terminal 1 or D511 terminal 7 and ground.

      1 (GR/R, GR/L, W/G, R/: Continuity should not exist or W) - Ground

      7 (O) - Ground: Continuity should not exist

    OK or NG

    1. OK: GO TO 3
    2. NG: Repair or replace harness.
  3. CHECKDOO R SWITCHES
    • Disconnect door switch harness.
    • Check continuity between door switch connector terminals.
    Fig 5: Terminals Condition Continuity Table
    G00866983Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Check door switch case ground condition.
    2. NG: Replace door switch.
    Fig 6: Checking Continuity Between Door Switch Connector Terminals
    G00866984Courtesy of NISSAN MOTOR CO., U.S.A.
