Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install the inner tie-rods.
Install the outer tie-rods to the specified length and tighten the outer socket lock nut. Refer to "STEERING GEAR AND LINKAGE ".
Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

Fig 1: Identifying Outer Tie-Rods Length
Courtesy of NISSAN MOTOR CO., U.S.A.

Outer socket lock nut :41.5 N.m (4.2 kg-m, 31 ft-lb)
Measure rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing boot, coat the contact surfaces between boot and tie-rod with grease.

Fig 3: Coating Contact Surfaces Between Boot And Tie-Rod With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the boot clamps and crimp securely.

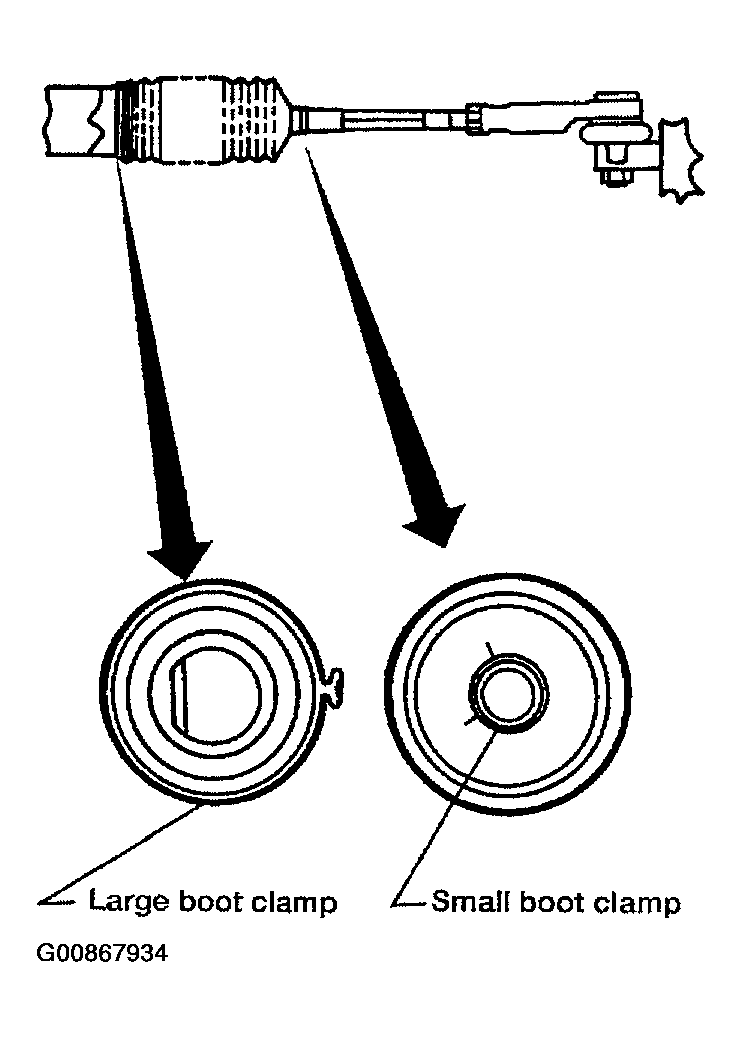

Fig 4: Installing Boot Clamps

Courtesy of NISSAN MOTOR CO., U.S.A.
