Self-Diagnostic Results Mode
Self-Diagnostic Results Mode

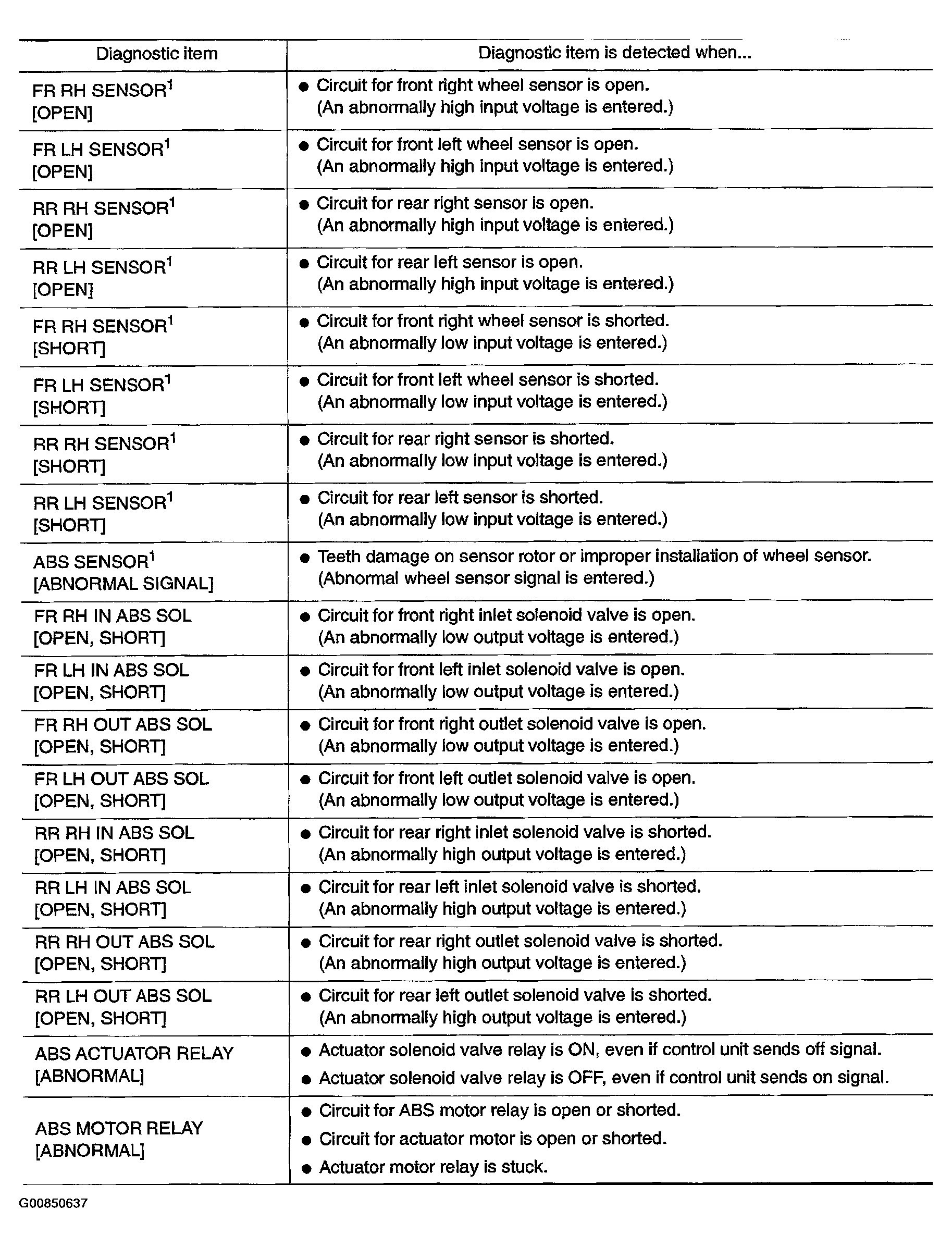

Fig 1: Identifying Self-Diagnostic Results Mode Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

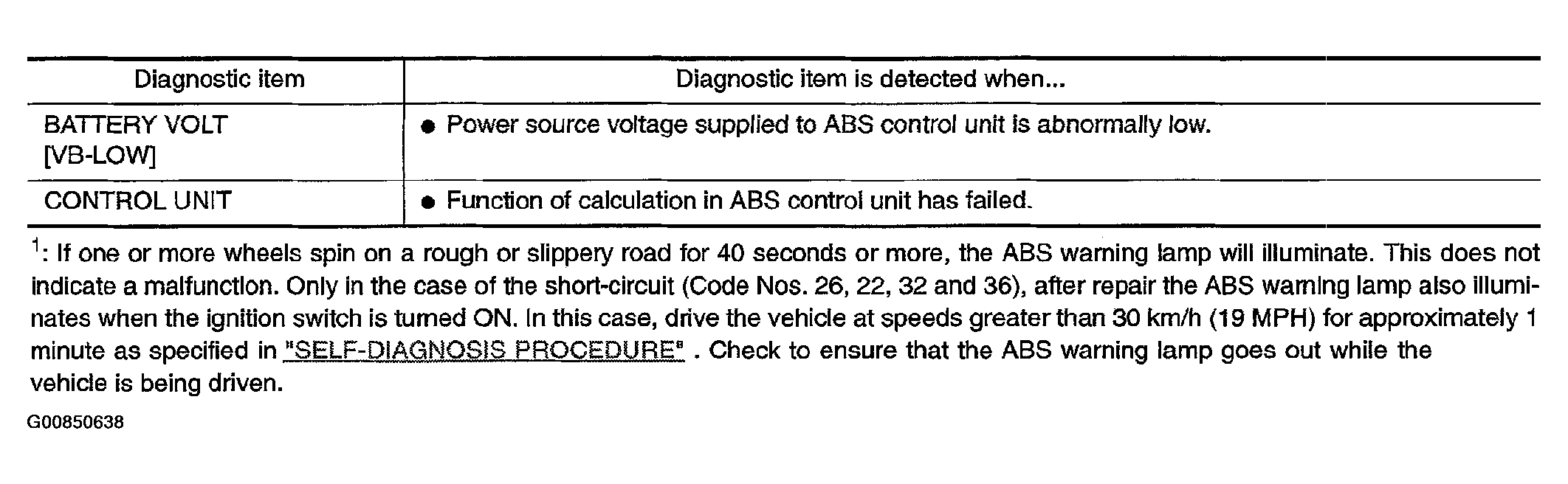

Fig 2: Identifying Self-Diagnostic Results Mode Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
