Input Shaft Thrust Washer

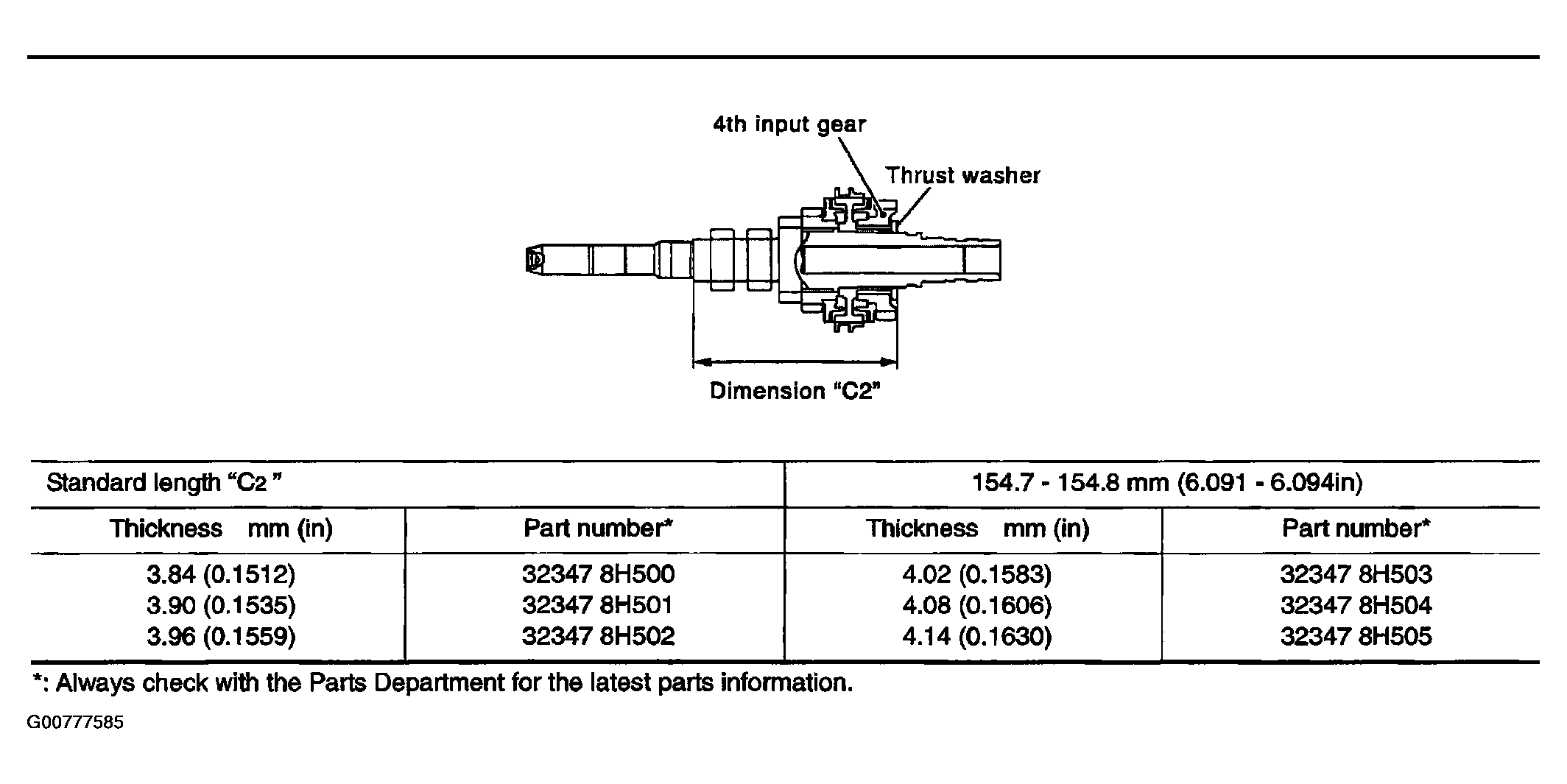

Fig 1: Input Shaft thrust Washer Specifications

G00777585

Courtesy of NISSAN MOTOR CO., U.S.A.
