Home >> Nissan-Datsun >> 2004 >> Sentra SE-R Spec V >> Repair and Diagnosis >> Transmission >> Clutch System - RS6F51H >> Clutch System >> Components

Clutch System: Components

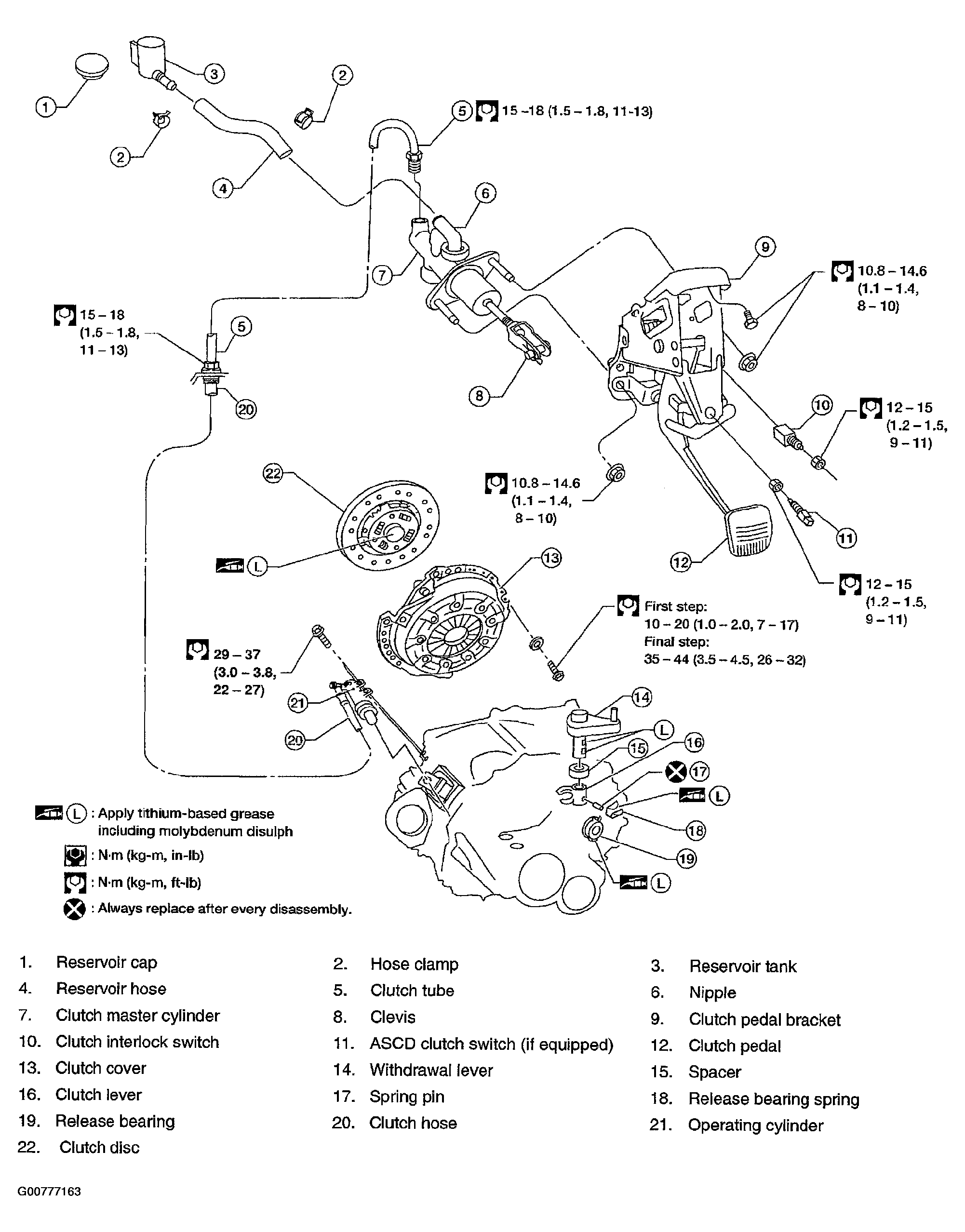

Fig 1: Identifying Clutch System Components

G00777163

Courtesy of NISSAN MOTOR CO., U.S.A.
