Oil Strainer

WARNING: This page is about a different variant/trim than selected.

Shift Solenoid Valves "A" and "B", Line Pressure Solenoid Valve, Torque Converter Clutch Solenoid Valve and Overrun Clutch Solenoid Valve

Measure resistance.
For shift solenoid valve A, refer to DTC P0750 SHIFT SOLENOID VALVE A .
For shift solenoid valve B, refer to DTC P0755 SHIFT SOLENOID VALVE B .
For line pressure solenoid valve, refer to DTC P0745 LINE PRESSURE SOLENOID VALVE .
For torque converter clutch solenoid valve, refer to DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE .
For overrun clutch solenoid valve, DTC P1760 OVERRUN CLUTCH SOLENOID VALVE .

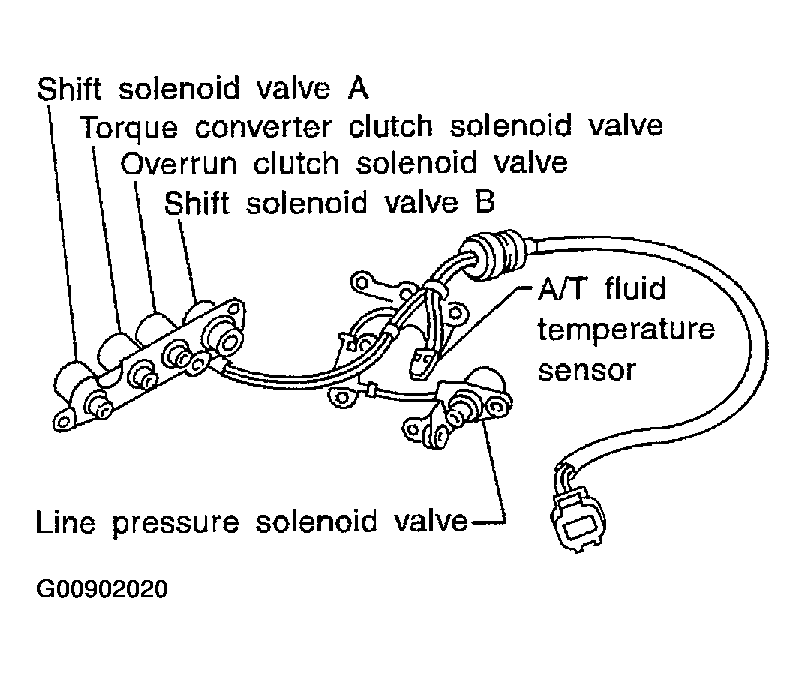

Fig 1: Identifying Solenoid Valves And A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
