R Position

WARNING: This page is about a different variant/trim than selected.

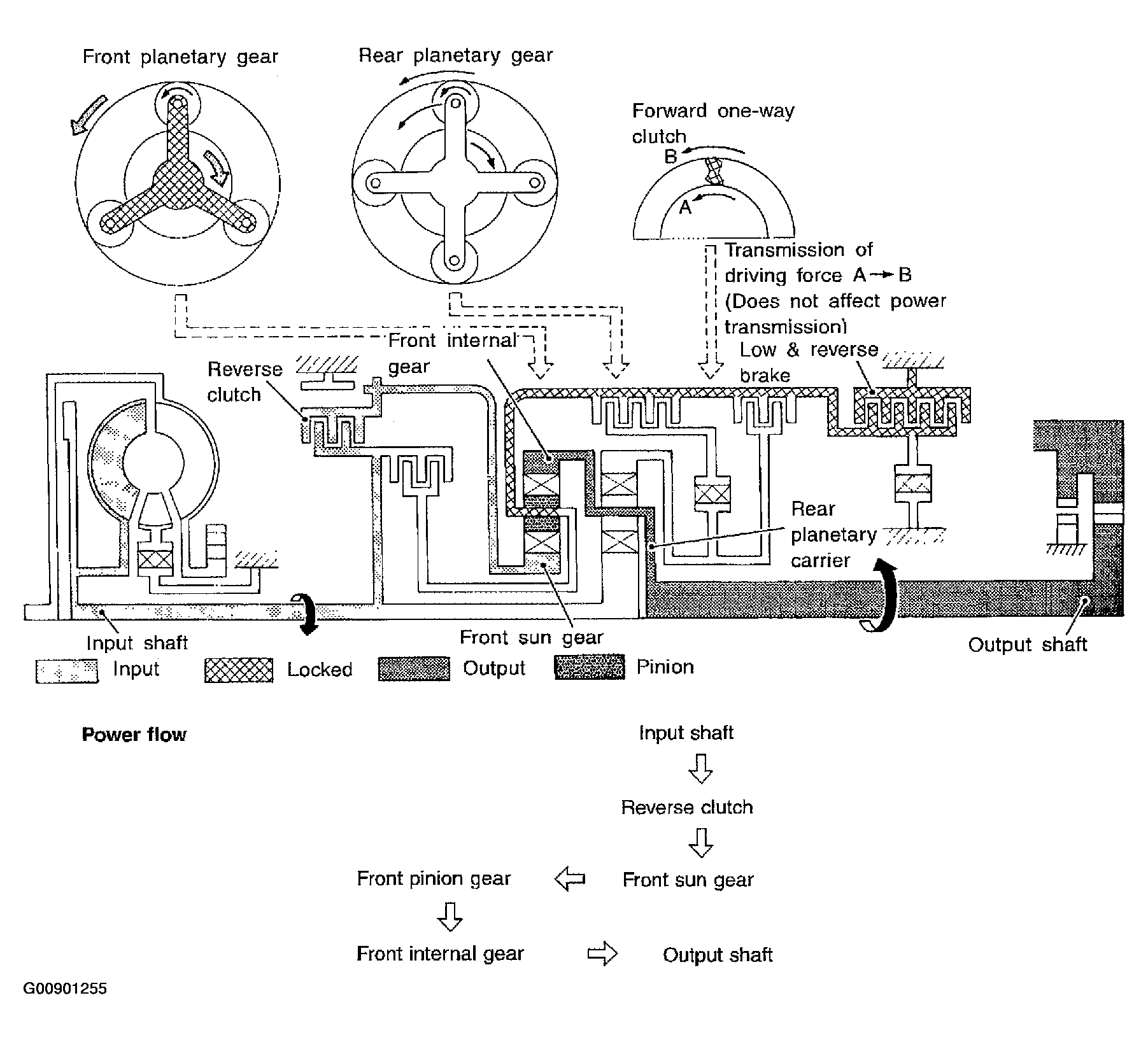

Fig 1: Power Transmission - "R" Position (1 Of 2)
G00901255Courtesy of NISSAN MOTOR CO., U.S.A.

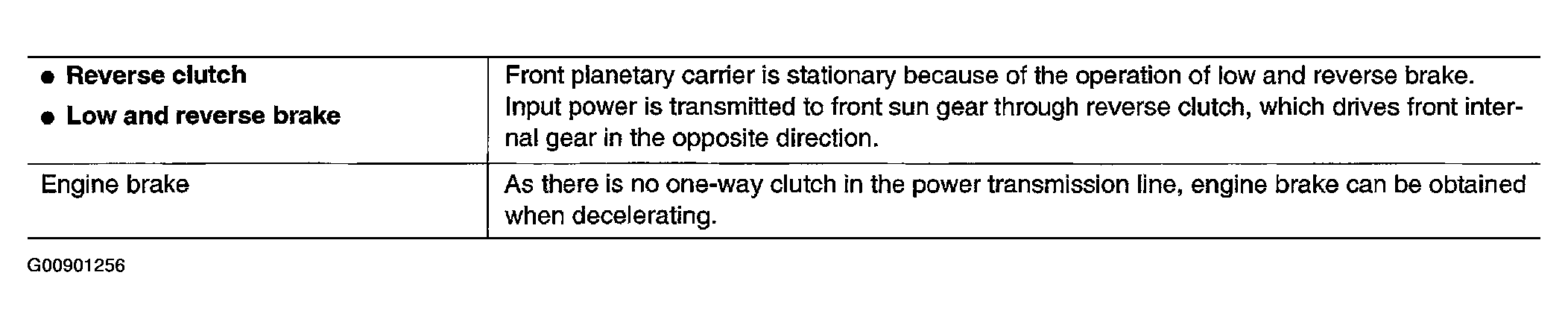

Fig 2: Power Transmission - "R" Position (2 Of 2)
G00901256Courtesy of NISSAN MOTOR CO., U.S.A.
