Shift Lock System Electrical Parts Location

WARNING: This page is about a different variant/trim than selected.

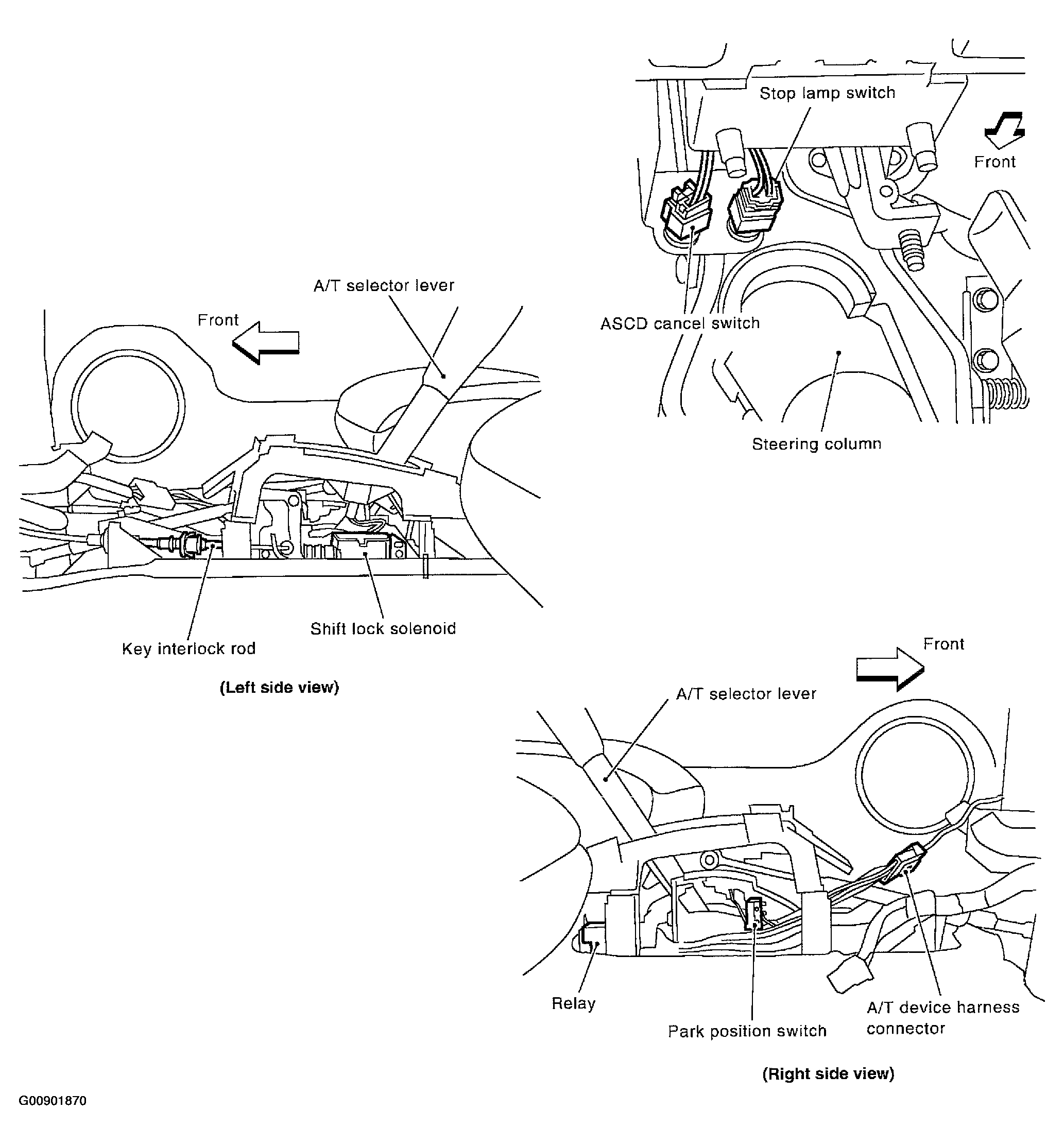

Fig 1: Identifying Shift Lock System Electrical Parts Location
G00901870Courtesy of NISSAN MOTOR CO., U.S.A.
