Cooling Fan Motor-1

1. Disconnect cooling fan motor harness connectors.
2. Supply cooling fan motor terminals with battery voltage and check operation.

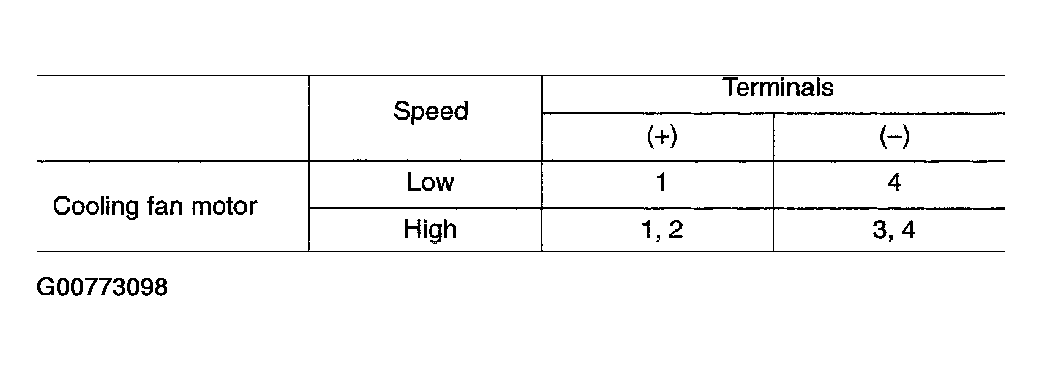

   Fig 1: Cooling Fan Motor Operation Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

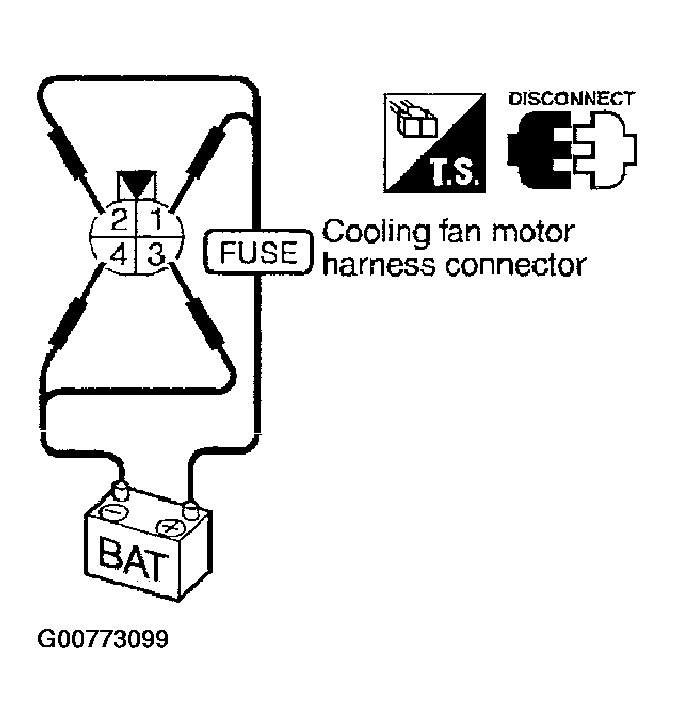

   Fig 2: Supplying Battery Voltage To Cooling Fan Motor Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operate.

If NG, replace cooling fan motor.
