Overall Inspection Sequence

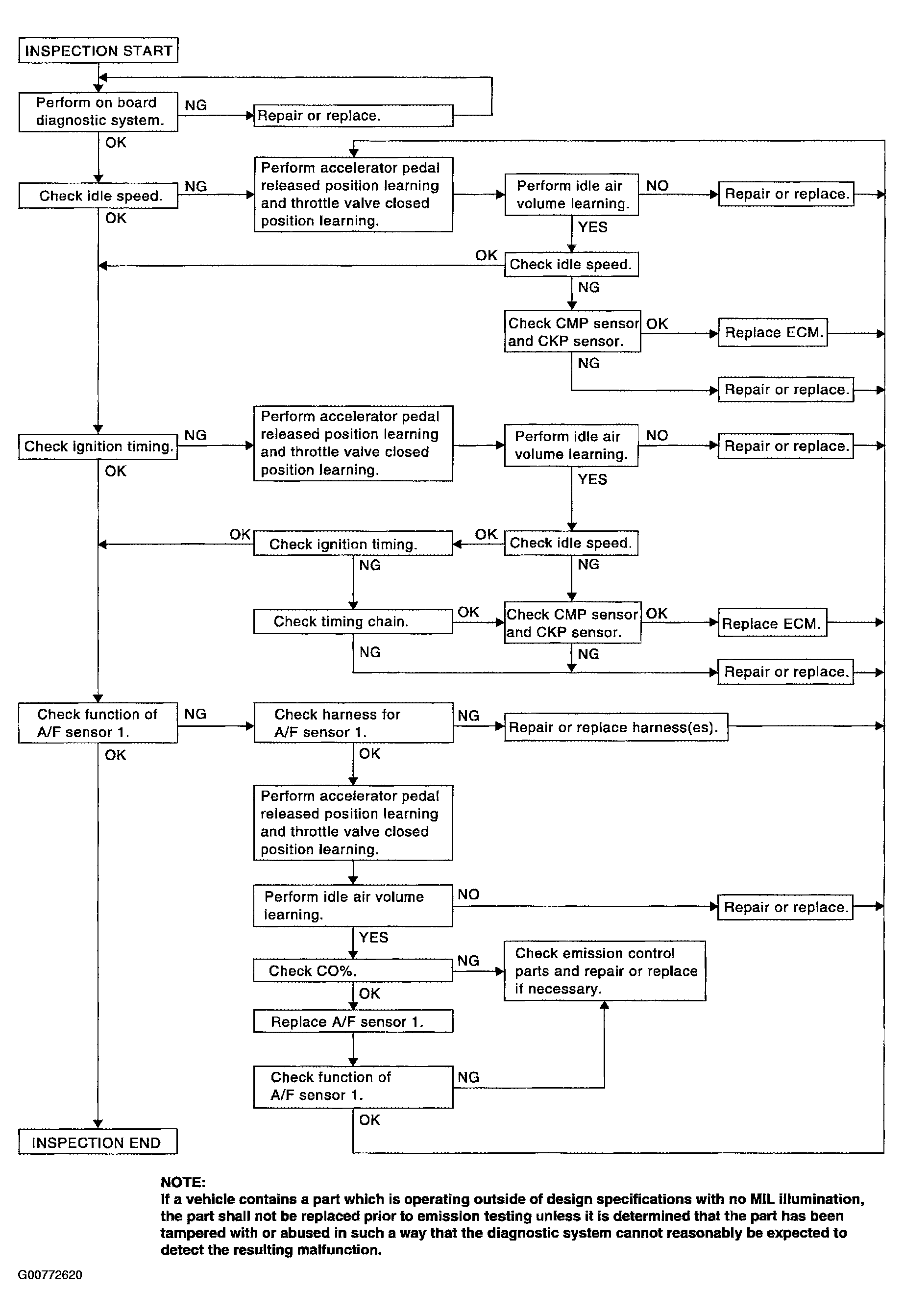

Fig 1: Overall Inspection Sequence Flow Chart
G00772620Courtesy of NISSAN MOTOR CO., U.S.A.
