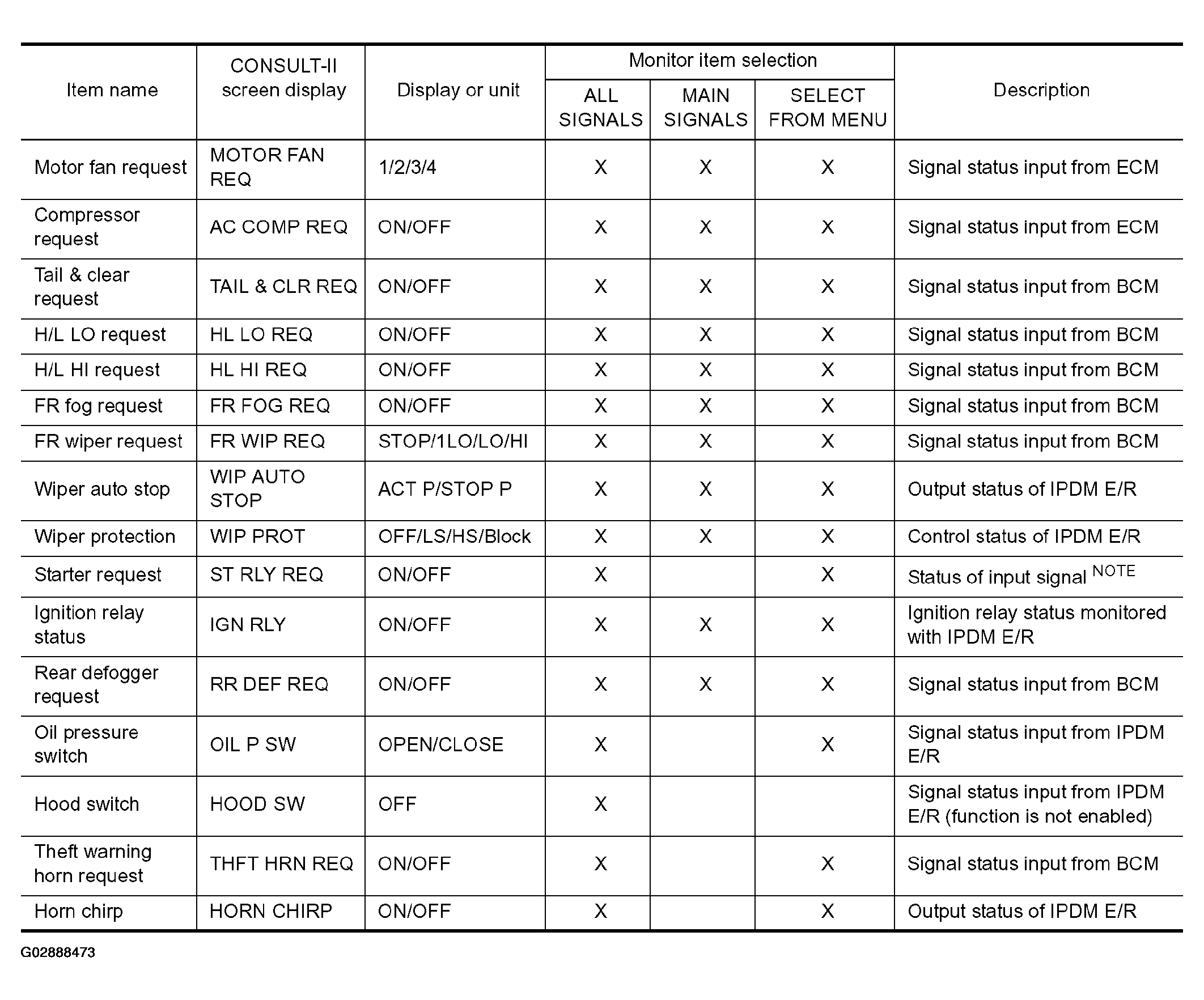

Fig 1: Identifying Scan Tool Display With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is in ACC position, display may not be correct.
